Removing Left Intake Pipe

WARNING: This page is about a different variant/trim than selected.
  1. Remove left intake pipe -1-  .

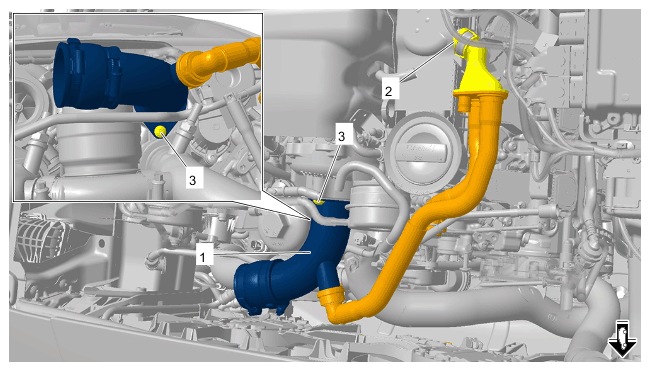

    G15151870Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left intake pipe

    1. 1.1  Release and disconnect plug-in coupling -2-  .
    2. 1.2  Unscrew screws on left intake pipe -3-  .
    3. 1.3  Remove left intake pipe -1-  .
