Installing Left Intake Pipe
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
- 1.1
Replace O-rings.
- 1.2
Check seal on left intake pipe for damage and replace it if necessary.
- 1.3
Tighten screws on left intake pipe -3-
.
- Tightening torque 9 Nm (6.6 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

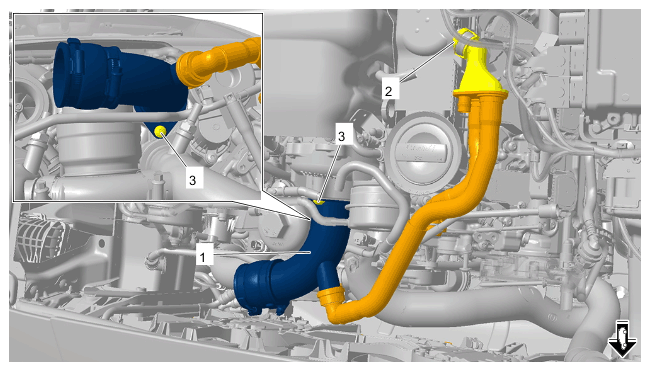

Left intake pipe
