Removing Air Guide For Charge-Air Cooler

WARNING: This page is about a different variant/trim than selected.

Information

The procedure for removing and installing is described for one side as an example. The procedure for the other side is almost identical.

  1. Remove air guide for charge-air cooler -1-  .

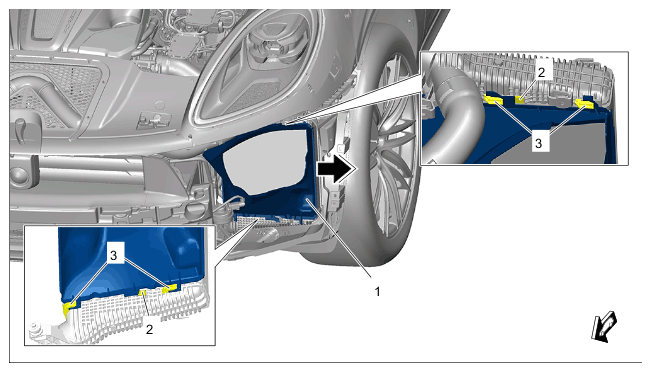

    G15151866Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air guide on charge-air cooler

    1. 1.1  Release retaining lugs -2-  .
    2. 1.2  Guide air guide for charge-air cooler -1-  in -direction of arrow-  out of the guides -3-  .
