Cleaning Throttle Housing
WARNING: This page is about a different variant/trim than selected.
WARNING:
Toxic substances
- Danger of poisoning or suffocation
- Danger of burns to the eyes and skin
- → Ventilate the work area well.
- → Never ingest or inhale.
- → Read specific information on the Hazard Sheet.
- → Wear personal protective gear.
- → Do not smoke, eat or drink in he work area.
NOTIFICATION
Inflammable materials in intake-air distributor
- Risk of engine damage
- → Do not insert inflammable materials into the intake-air distributor.
- → Remove residues and deposits completely.
Information
Soak cloth with solvent naphtha or fuel if necessary.
- Check that the throttle valve housing is not contaminated by combustion residues or oil.
- If the throttle valve is contaminated:

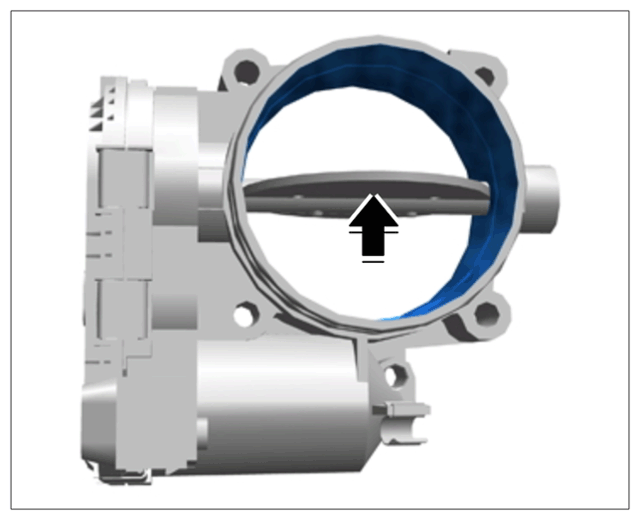

Remove combustion residues and oil using a clean, lint-free cloth and carefully open the throttle valve -arrow- with your finger.
Throttle housing
