Removing Throttle Housing
WARNING: This page is about a different variant/trim than selected.

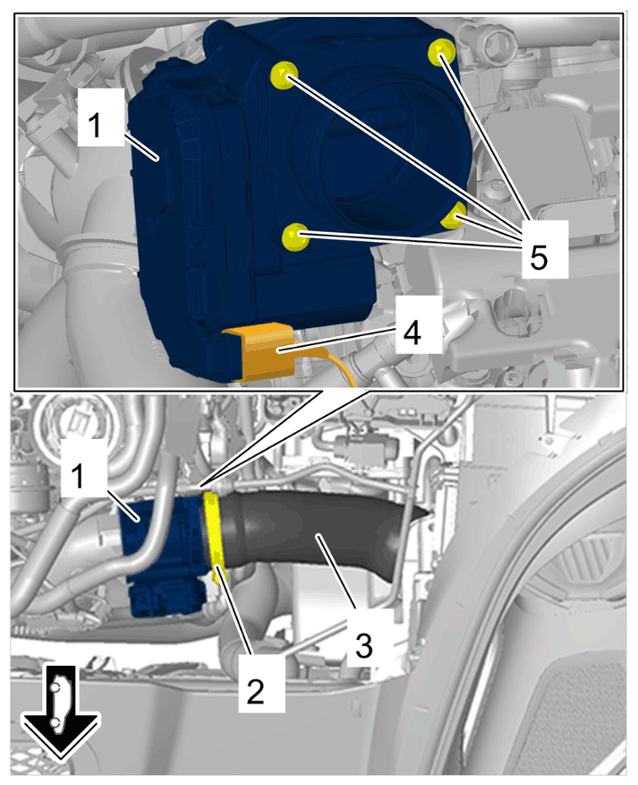

- Remove throttle housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Throttle housing
- 1.1
Loosen screw-type clamp -2-
and pull pressure hose -3-
off the throttle housing -1-
.
- 1.2
Release and disconnect electric plug connection on throttle housing -4-
.
- 1.3
Unscrew screws on throttle housing -5-
.
- 1.4
Remove throttle housing -1-
.
