Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove fuel collection pipe.
  2. Remove sound absorber -1-  .

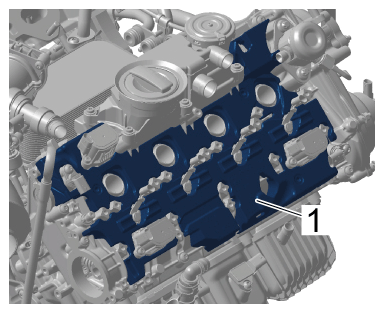

    G15151967Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Sound absorber

  3. Spray fuel injector seats in the cylinder head with Caramba EDI special solvent for injectors and leave it to take effect.
