Air Cleaner Housing
WARNING: This page is about a different variant/trim than selected.

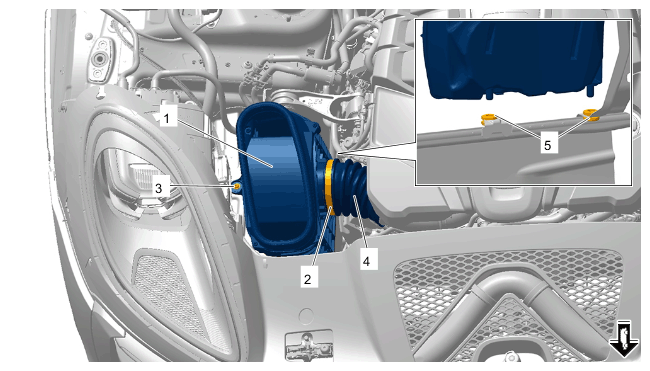

- Remove air cleaner housing -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Air cleaner housing
- 1.1
Loosen screw-type clamp -2-
.
- 1.2
Unscrew screw -3-
.
- 1.3
Disconnect air cleaner housing -1-
from intake manifold -4-
and pull it up out of the guides -5-
.
