Removing Air-Cleaner Element

WARNING: This page is about a different variant/trim than selected.
  1. Remove upper part of air cleaner housing -1-  .

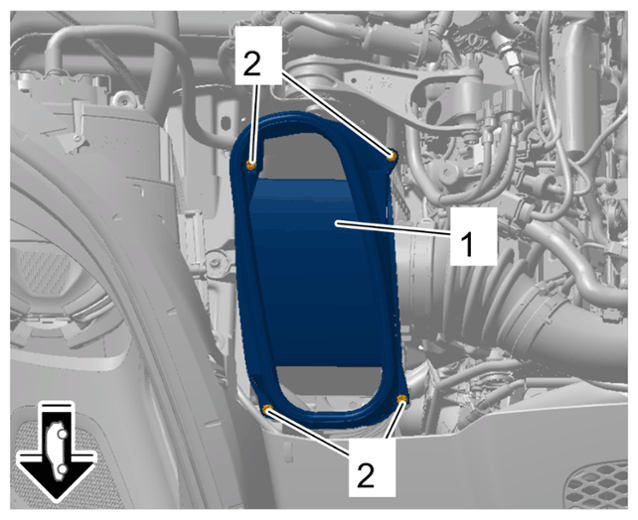

    G15151943Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper part of air cleaner housing

    1. 1.1  Unscrew screws -2-  .
    2. 1.2  Remove upper part of air cleaner housing -1-  .
  2. Remove intake manifold -1-  .

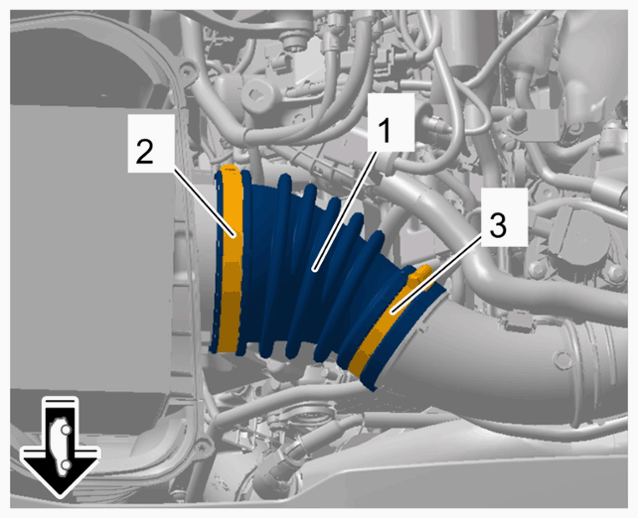

    G15151944Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intake manifold

    1. 2.1  Loosen screw-type clamps -2 and 3-  .
    2. 2.2  Remove intake pipe -1-  .
  3. Pull front air cleaner housing cover -1-  up and off.

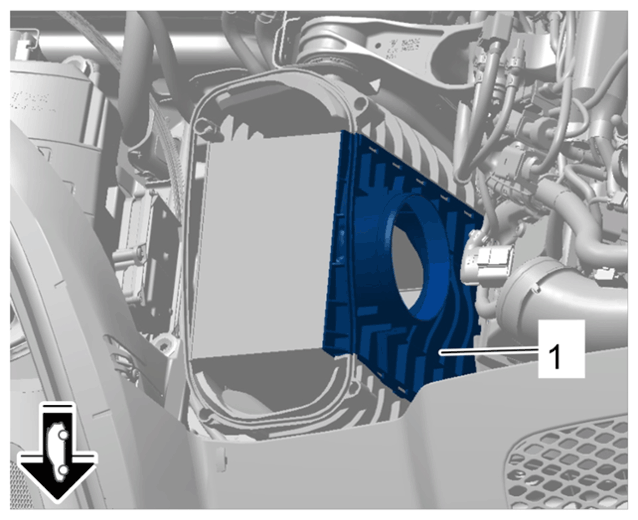

    G15151945Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filter cover

  4. Remove air-cleaner element upwards -1-  .

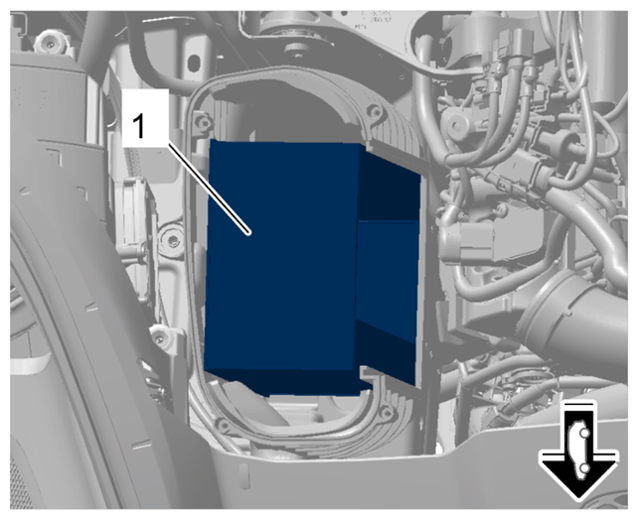

    G15151946Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air-cleaner element
