WM, 535555 Replacing Rear Side Panel: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14362442Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14362443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

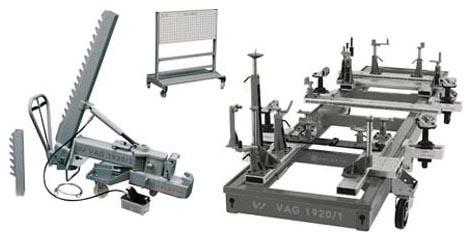

Body alignment system package General workshop equipment > V.A.G 1920
G14362444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

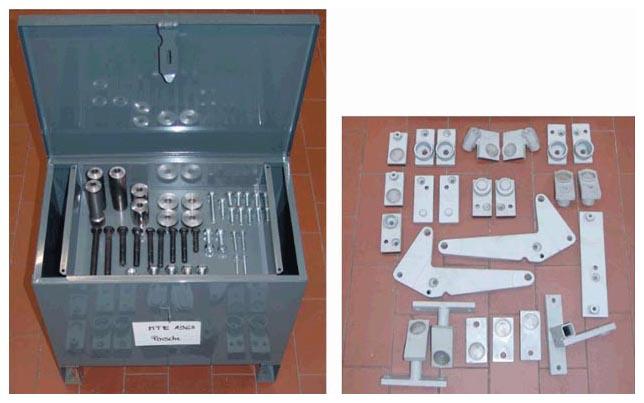

Straightening Set - Macan (95B) Vehicle-specific workshop equipment > VAS 6902
G14362445Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Straightening Bracket System MZ Plus Vehicle-specific workshop equipment > VAS 6630
G14362446Courtesy of PORSCHE CARS NORTH AMERICA, INC.

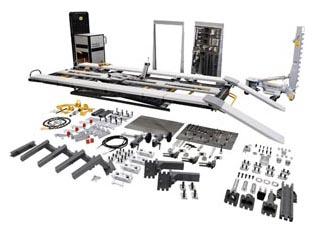

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14362447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

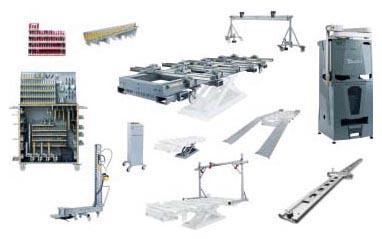

Measuring and straightening system General workshop equipment > VAS 811 017
G14362448Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14362449Courtesy of PORSCHE CARS NORTH AMERICA, INC.

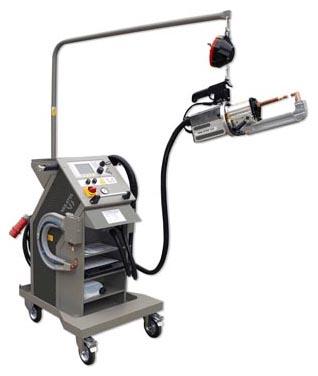

Resistance Spot Welder General workshop equipment > VAS 6755
G14362450Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14362451Courtesy of PORSCHE CARS NORTH AMERICA, INC.

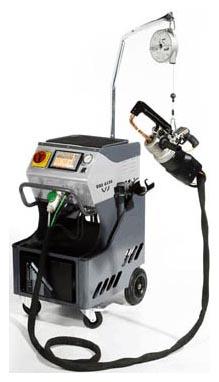

Resistance Spot Welder General workshop equipment > VAS 6530A
G14362452Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14362453Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14362454Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G14362455Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G14362456Courtesy of PORSCHE CARS NORTH AMERICA, INC.

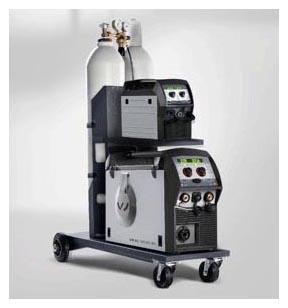

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G14362457Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14362458Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G14362459Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14362460Courtesy of PORSCHE CARS NORTH AMERICA, INC.

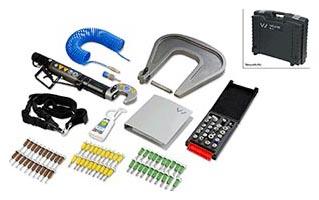

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14362461Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14362462Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14362463Courtesy of PORSCHE CARS NORTH AMERICA, INC.

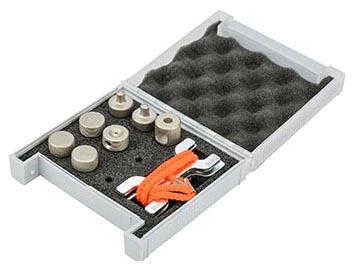

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14362464Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14362465Courtesy of PORSCHE CARS NORTH AMERICA, INC.

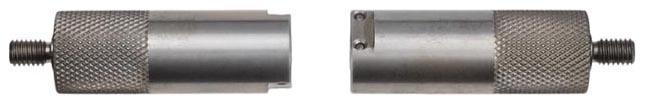

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14362466Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14362467Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14362468Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14362469Courtesy of PORSCHE CARS NORTH AMERICA, INC.

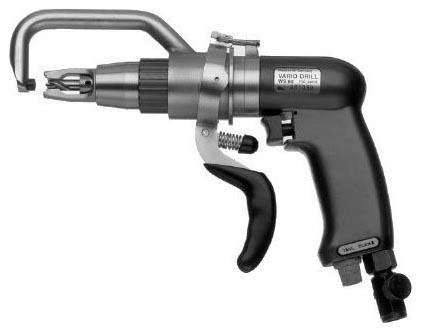

Spot-weld remover General workshop equipment > VAS 882 001
G14362470Courtesy of PORSCHE CARS NORTH AMERICA, INC.

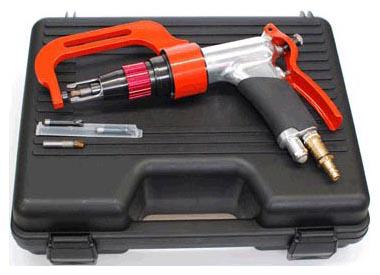

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14362471Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14362472Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14362473Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14362474Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B

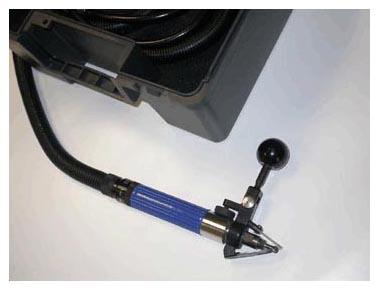

G14362475Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14362476Courtesy of PORSCHE CARS NORTH AMERICA, INC.

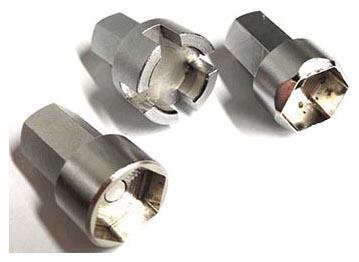

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14362477Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14362478Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14362479Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14362480Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14362481Courtesy of PORSCHE CARS NORTH AMERICA, INC.

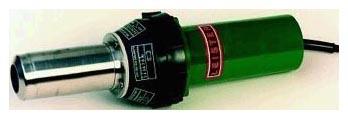

Hot-air blower General workshop equipment > V.A.G 1416
G14362482Courtesy of PORSCHE CARS NORTH AMERICA, INC.

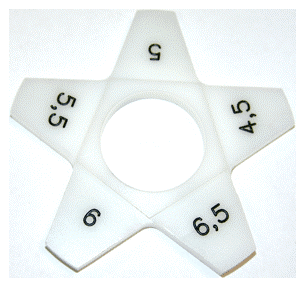

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14362483Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14362484Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14362485Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Dimension X   Distance 86 mm
Dimension Y   Distance 60 mm
Dimension Z   Distance 90 mm
Dimension W   Distance 50 mm
Applying adhesive   Application depth 3.0 mm
