WM, 534855 Replacing Rear Side Member (Section): Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14362380Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14362381Courtesy of PORSCHE CARS NORTH AMERICA, INC.

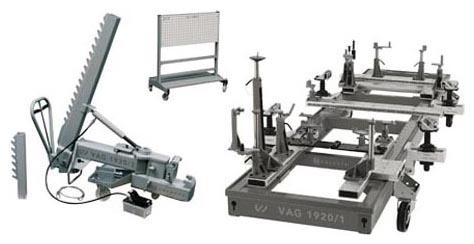

Body alignment system package General workshop equipment > V.A.G 1920
G14362382Courtesy of PORSCHE CARS NORTH AMERICA, INC.

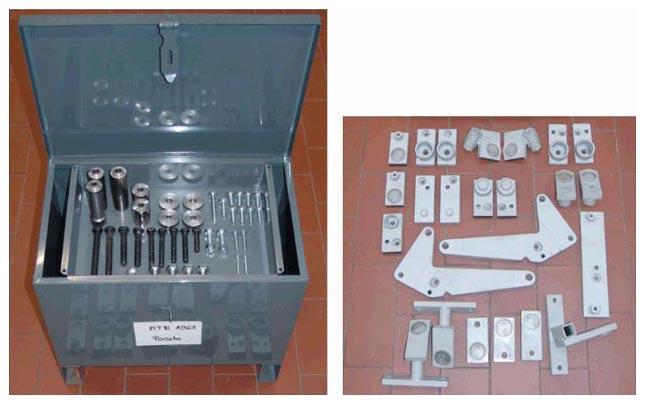

Straightening Set - Macan (95B) Vehicle-specific workshop equipment > VAS 6902
G14362383Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Straightening Bracket System MZ Plus Vehicle-specific workshop equipment > VAS 6630
G14362384Courtesy of PORSCHE CARS NORTH AMERICA, INC.

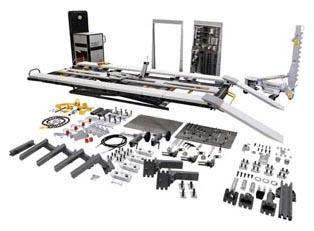

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14362385Courtesy of PORSCHE CARS NORTH AMERICA, INC.

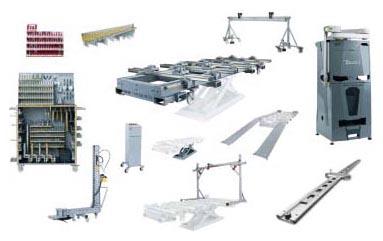

Measuring and straightening system General workshop equipment > VAS 811 017
G14362386Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14362387Courtesy of PORSCHE CARS NORTH AMERICA, INC.

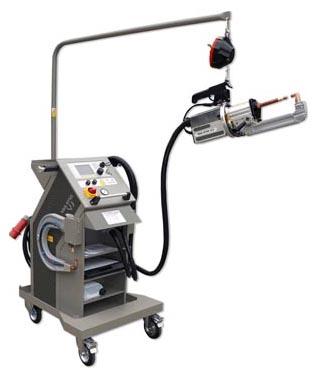

Resistance Spot Welder General workshop equipment > VAS 6755
G14362388Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14362389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

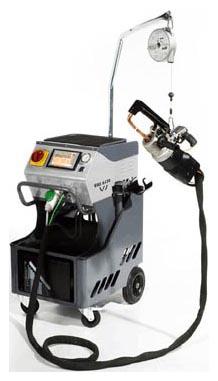

Resistance Spot Welder General workshop equipment > VAS 6530A
G14362390Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14362391Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14362392Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G14362393Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G14362394Courtesy of PORSCHE CARS NORTH AMERICA, INC.

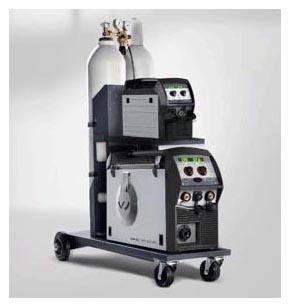

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G14362395Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14362396Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G14362397Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14362398Courtesy of PORSCHE CARS NORTH AMERICA, INC.

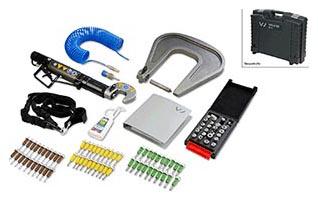

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14362399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14362400Courtesy of PORSCHE CARS NORTH AMERICA, INC.

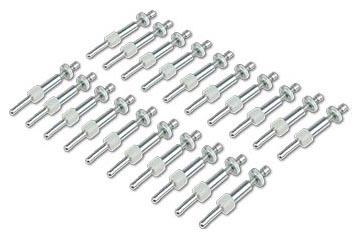

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14362401Courtesy of PORSCHE CARS NORTH AMERICA, INC.

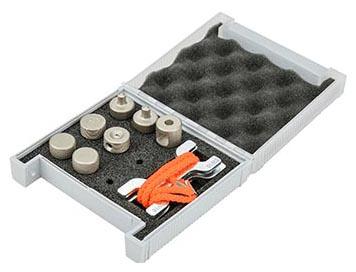

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14362402Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14362403Courtesy of PORSCHE CARS NORTH AMERICA, INC.

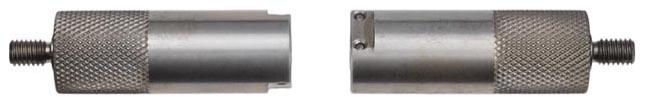

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14362404Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14362405Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14362406Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14362407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment > VAS 882 001
G14362408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

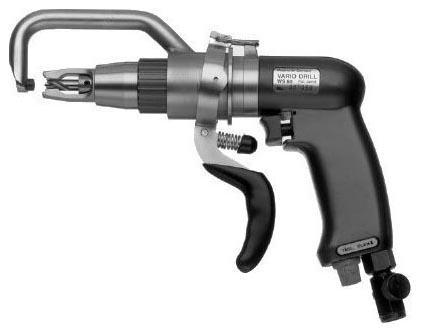

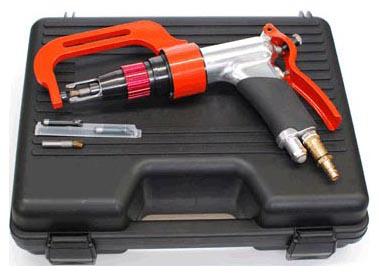

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14362409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

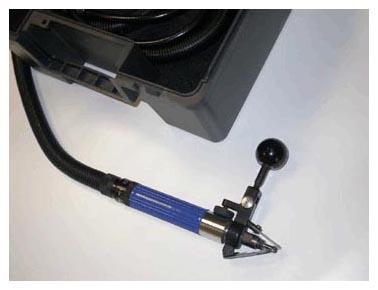

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14362410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14362411Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14362412Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14362413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14362414Courtesy of PORSCHE CARS NORTH AMERICA, INC.

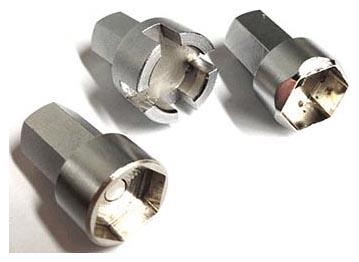

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14362415Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14362416Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14362417Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14362418Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14362419Courtesy of PORSCHE CARS NORTH AMERICA, INC.

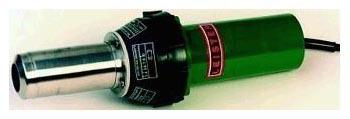

Hot-air blower General workshop equipment > V.A.G 1416
G14362420Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14362421Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14362422Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14362423Courtesy of PORSCHE CARS NORTH AMERICA, INC.
spot weld drill; see Workshop Equipment Manual, Group 2.4 Commercially available tool > Nr.129
G14362424Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Dimension X   Distance 20 mm
Application of adhesive Apply over entire surface Application height 0.5 mm
Drill bit   Diameter 6.6 mm
