WM, 532555 Removing And Installing Rear-End Well: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14362200Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14362201Courtesy of PORSCHE CARS NORTH AMERICA, INC.

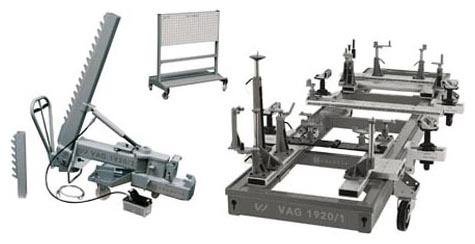

Body alignment system package General workshop equipment > V.A.G 1920
G14362202Courtesy of PORSCHE CARS NORTH AMERICA, INC.

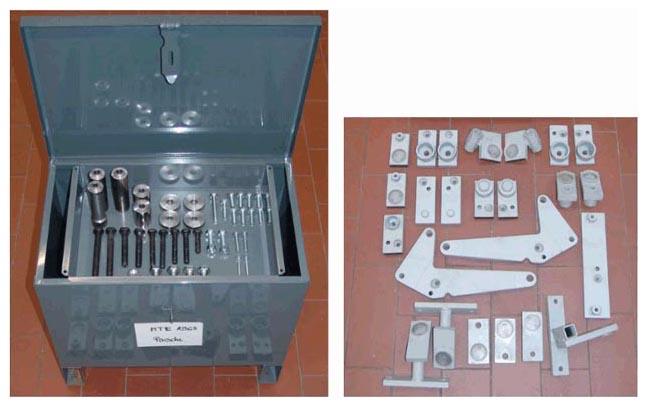

Straightening Set - Macan (95B) Vehicle-specific workshop equipment > VAS 6902
G14362203Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Straightening Bracket System MZ Plus Vehicle-specific workshop equipment > VAS 6630
G14362204Courtesy of PORSCHE CARS NORTH AMERICA, INC.

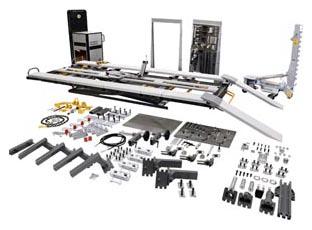

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14362205Courtesy of PORSCHE CARS NORTH AMERICA, INC.

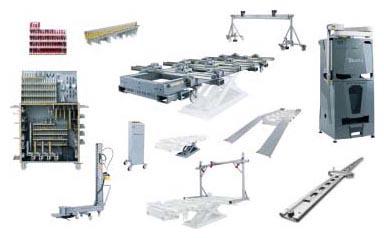

Measuring and straightening system General workshop equipment > VAS 811 017
G14362206Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14362207Courtesy of PORSCHE CARS NORTH AMERICA, INC.

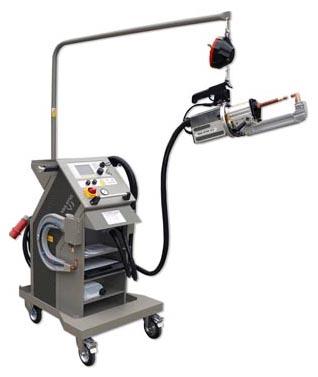

Resistance Spot Welder General workshop equipment > VAS 6755
G14362208Courtesy of PORSCHE CARS NORTH AMERICA, INC.

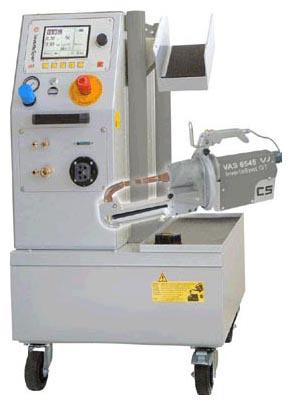

Resistance Spot Welder General workshop equipment > VAS 6545A
G14362209Courtesy of PORSCHE CARS NORTH AMERICA, INC.

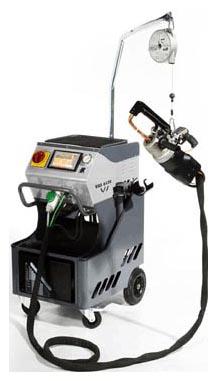

Resistance Spot Welder General workshop equipment > VAS 6530A
G14362210Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14362211Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14362212Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G14362213Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G14362214Courtesy of PORSCHE CARS NORTH AMERICA, INC.

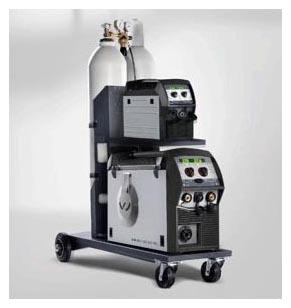

Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G14362215Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14362216Courtesy of PORSCHE CARS NORTH AMERICA, INC.

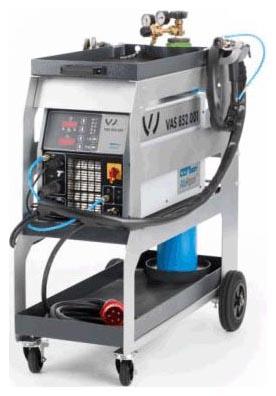

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G14362217Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14362218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

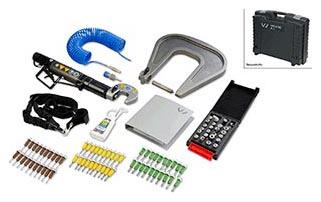

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14362219Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14362220Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14362221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

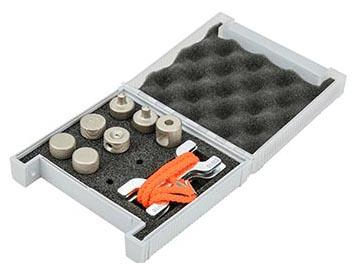

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14362222Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14362223Courtesy of PORSCHE CARS NORTH AMERICA, INC.

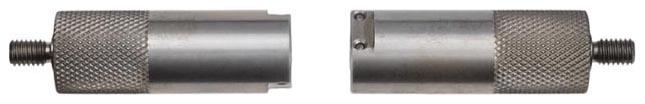

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14362224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

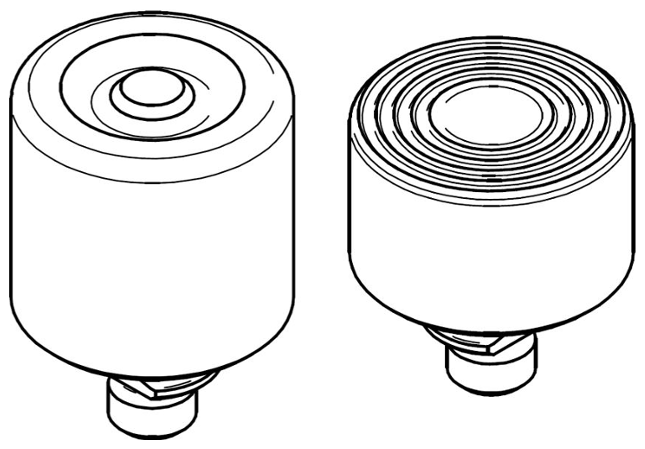

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14362225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

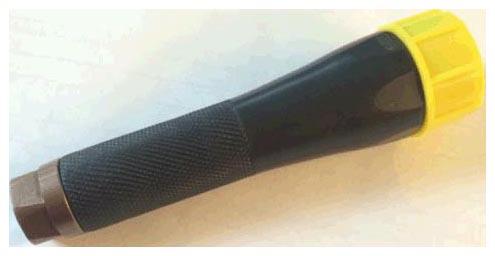

Extension Vehicle-specific workshop equipment > VAS 6792/2
G14362226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

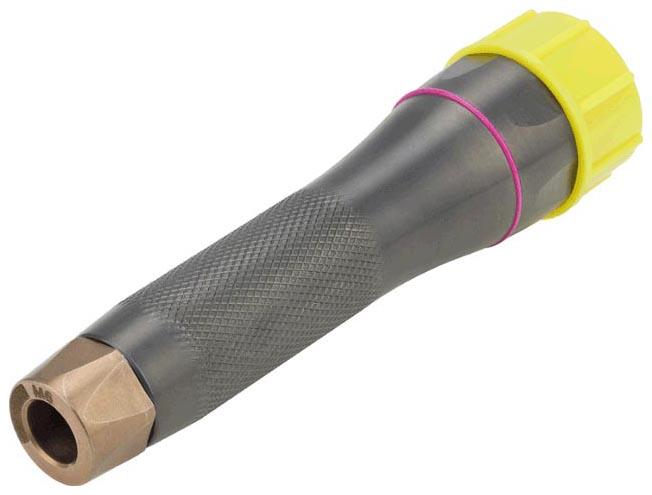

Extension Vehicle-specific workshop equipment > VAS 6792/28
G14362227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

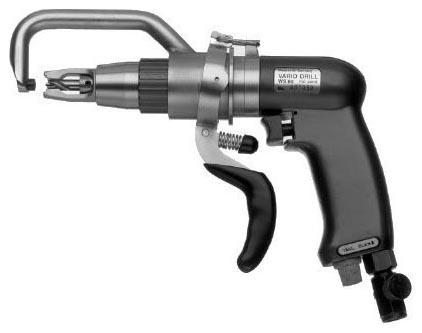

Spot-weld remover General workshop equipment > VAS 882 001
G14362228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

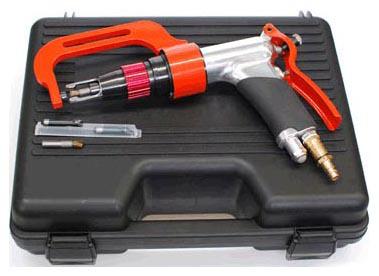

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14362229Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14362230Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14362231Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14362232Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14362233Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14362234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

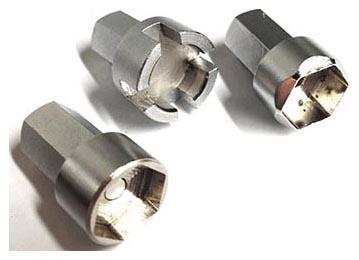

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14362235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

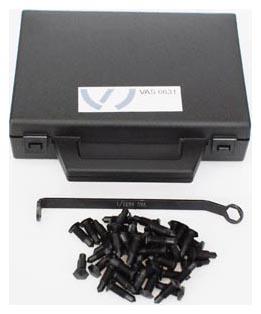

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14362236Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14362237Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14362238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

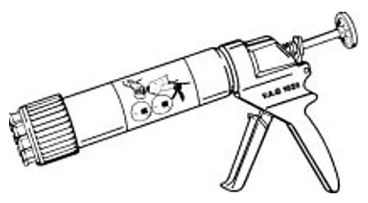

Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14362239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

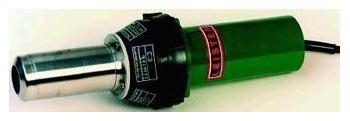

Hot-air blower General workshop equipment > V.A.G 1416
G14362240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

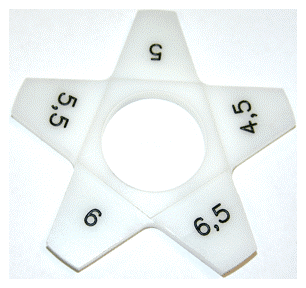

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14362241Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14362242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

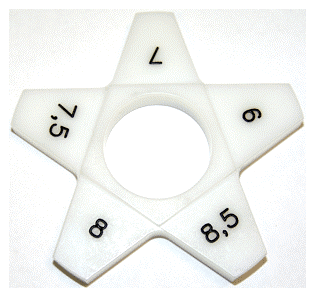

Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14362243Courtesy of PORSCHE CARS NORTH AMERICA, INC.
