WM, 5X00IN25 Making Ground Connections: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
PARTS DESCRIPTION
| Part number | Description | Addition | Quantity |
|---|---|---|---|
| > 99907354901 | COUNTERSUNK SCREW 999.073.549.01 | ||
| > 90037700301 | HEXAGON NUT 900.377.003.01 | ||
| > 99907354901 | COUNTERSUNK SCREW 999.073.549.01 | ||
| > 90037700301 | HEXAGON NUT 900.377.003.01 | ||
| > 99950019601 | BLIND RIVET NUT 999.500.196.01 | ||
| > 99907354901 | COUNTERSUNK SCREW 999.073.549.01 |
TOOLS DESCRIPTION
| Tool denomination | Type | Tool number | Image |
|---|---|---|---|

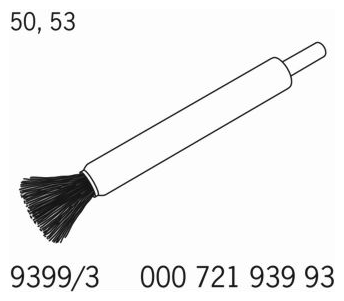

| end brush | Special tool | > 9399/3 | |

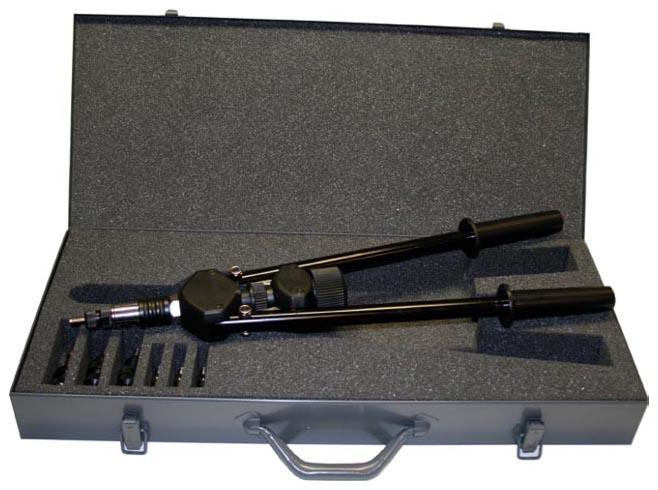

| Pop Rivet Nut Pliers | Vehicle-specific workshop equipment | > V.A.G 1765C |
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Drill bit | Diameter | 4 mm | |||
| Drill bit | Diameter | 8 mm | |||
| Threaded joint for ground connection | Tightening torque | 15 (11 ftlb.) Nm | |||
| Drill bit | Diameter | 4 mm | |||
| Drill bit | Diameter | 11 mm | |||
| Threaded joint for ground connection | Tightening torque | 15 (11 ftlb.) Nm |
