WM, 5X00IN Technical Values: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing upper part of lock carrier to side part of lock carrier Item 1 Tightening torque 9.7 (7.5 ftlb.) Nm
G14360218Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper part of lock carrier
Screws securing upper part of lock carrier to transverse strut Item 2 Tightening torque 9.7 (7.5 ftlb.) Nm
G14360219Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper part of lock carrier

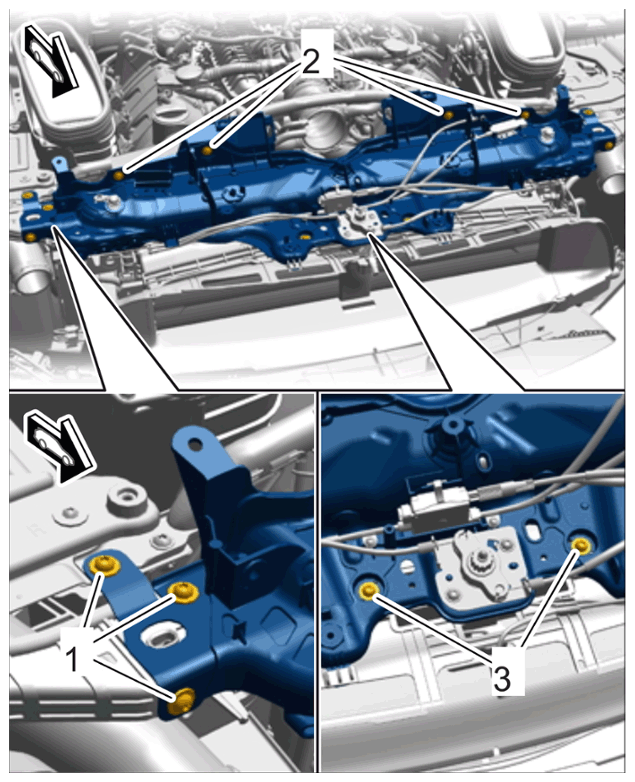

Screws securing upper part of lock carrier to radiator assembly Item 3 Tightening torque 9.7 (7.5 ftlb.) Nm
G14360220Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for upper part of lock carrier

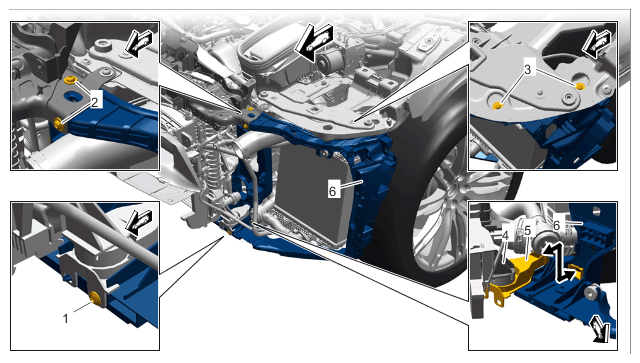

Screws securing side part of lock carrier to lock carrier Item 2 and 3 Tightening torque 9.7 (7.5 ftlb.) Nm
G14360221Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for side part of lock carrier
Screw securing radiator assembly holder to lock carrier Item 1 Tightening torque 9.7 (7.5 ftlb.) Nm
G14360222Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for side part of lock carrier

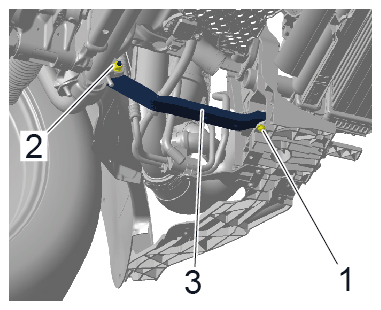

Screw securing support to lock carrier Item 1 Tightening torque 3.6 (2.6 ftlb.) Nm
G14360223Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support

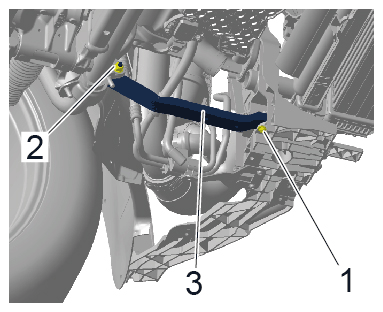

Nut securing support to lock carrier Item 2 Tightening torque 23 (17 ftlb.) Nm
G14360224Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support

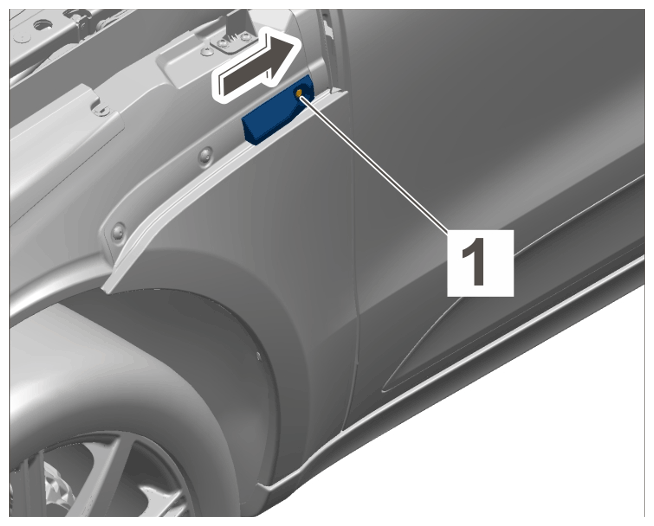

Screw securing guide wedge to wing Item 1 Tightening torque 8 (6 ftlb.) Nm
G14360225Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge

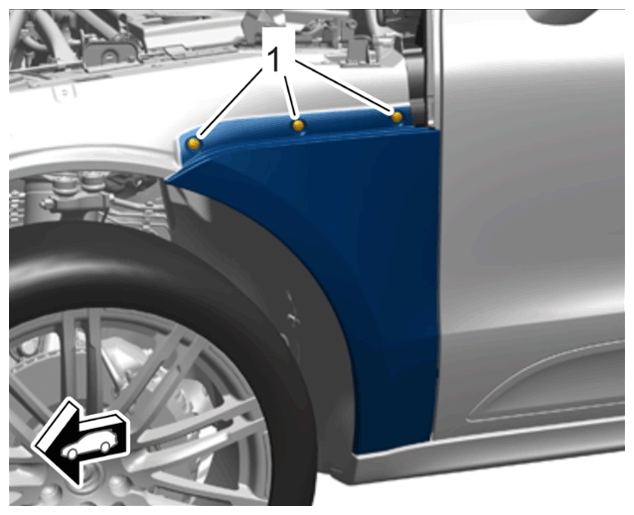

Screws securing wing to inner wing Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360226Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for outer wing

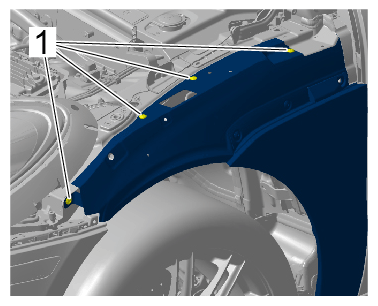

Screws securing wing to body Item 1 Tightening torque 8 (6 ftlb.) Nm
G14360227Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Outer screws

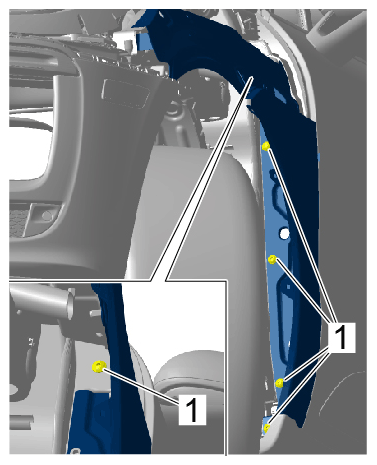

G14360228Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Inner screws
Nut securing front wheel housing liner to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360229Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel housing liner, right

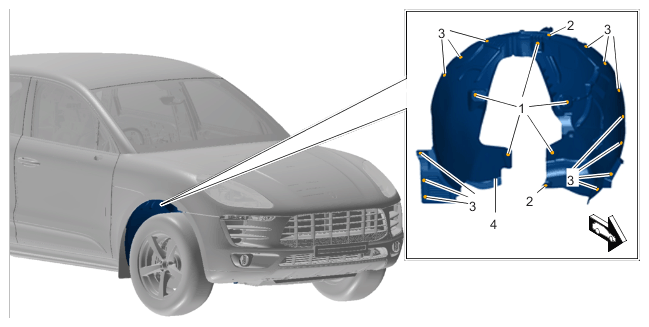

Screw securing front wheel housing liner to body Item 3 Tightening torque 2 (1.5 ftlb.) Nm
G14360230Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front wheel housing liner, right

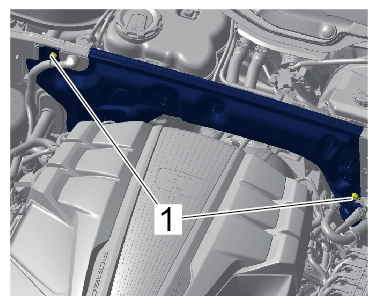

Screws securing cross panel to plenum panel Item 1 Tightening torque 9 (6.5 ftlb.) Nm
G14360231Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on cross panel

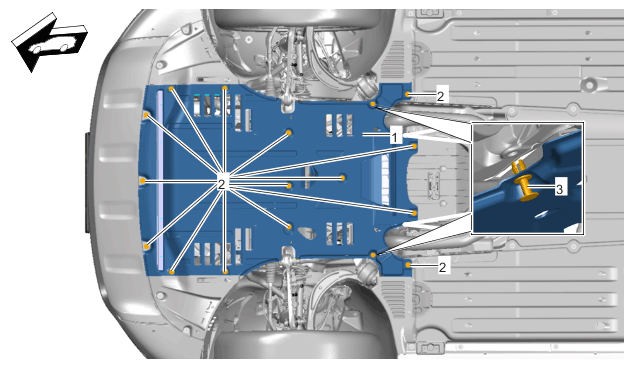

Screw securing front underbody cover to body Item 2 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360232Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front underbody cover

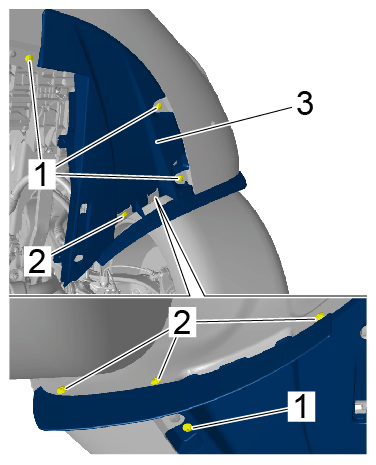

Screw securing side cover for front underbody to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360233Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side cover for front underbody

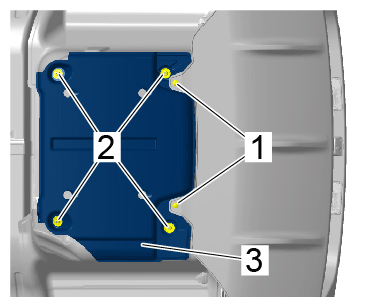

Nuts securing rear underbody cover to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360234Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for rear underbody

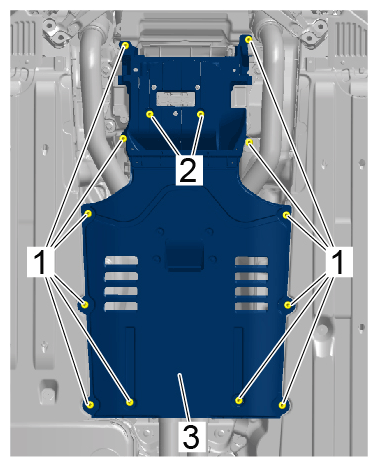

Screws securing central cover for centre underbody to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360235Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Central cover for centre underbody

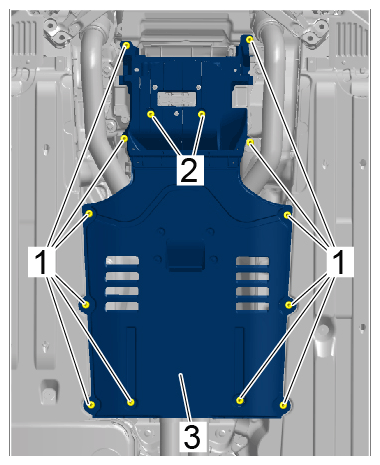

Screws securing central cover for centre underbody to gear support Item 2 Tightening torque 3.5 (2.5 ftlb.) Nm
G14360236Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Central cover for centre underbody

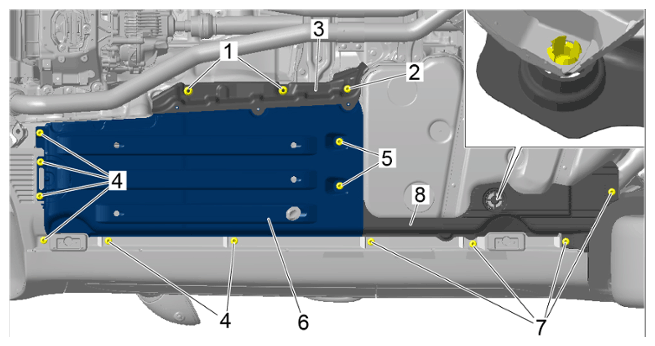

Nuts securing right heat shield to body Item 1 Tightening torque 2.5 (1.75 ftlb.)
G14360237Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right heat shield		     Nm

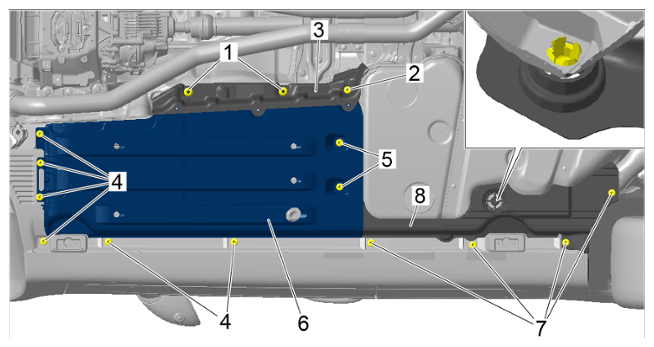

Screw securing right heat shield to body Item 2 Tightening torque 2.5 (1.75 ftlb.)
G14360238Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Right heat shield		     Nm
Screws securing cover for centre underbody at the right to body Item 4 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360239Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody at the right
Nuts securing cover for centre underbody at the right to body Item 5 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360240Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody at the right
Screws securing side cover at the rear to body Item 7 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360241Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side cover at the rear

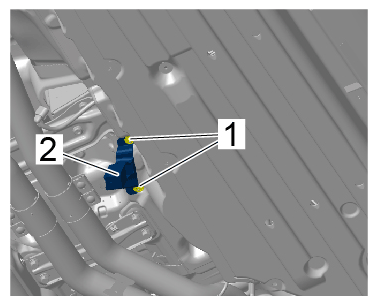

Nuts securing holder to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360242Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Holder

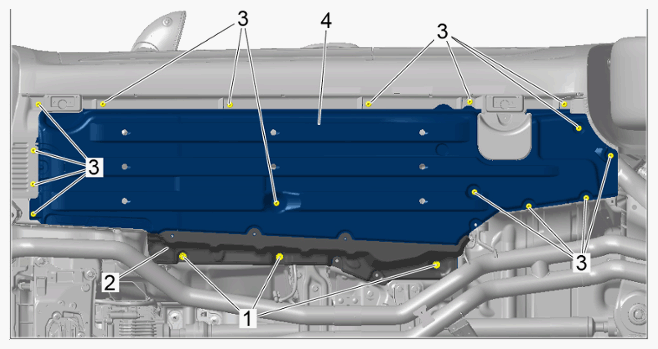

Nuts securing left heat shield to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360243Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left heat shield

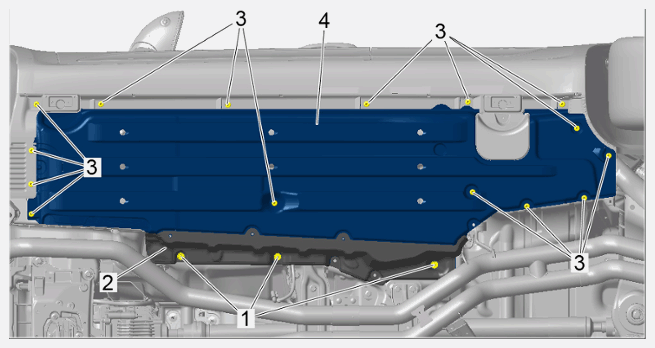

Screws securing cover for centre underbody at the left to body Item 3 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360244Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover for centre underbody at the left
Nut securing wheel housing liner to body Item 1 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360245Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner

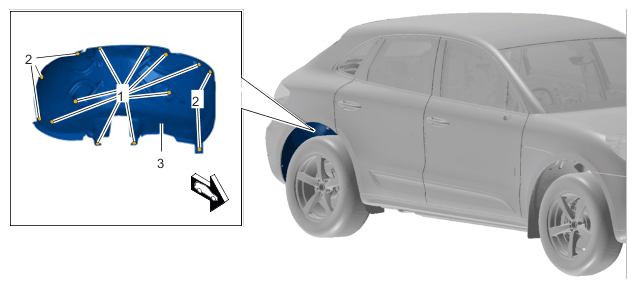

Screw securing wheel housing liner to body Item 2 Tightening torque 2 (1.5 ftlb.) Nm
G14360246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear wheel housing liner

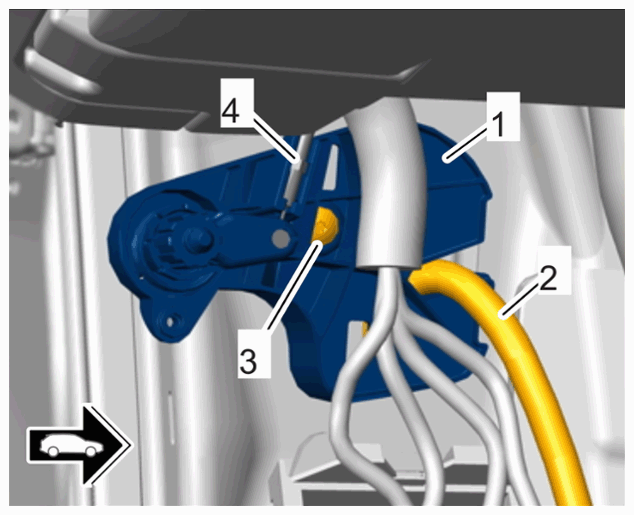

Screw securing release mechanism to body Item 3 Tightening torque 2.5 (1.75 ftlb.) Nm
G14360247Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release mechanism

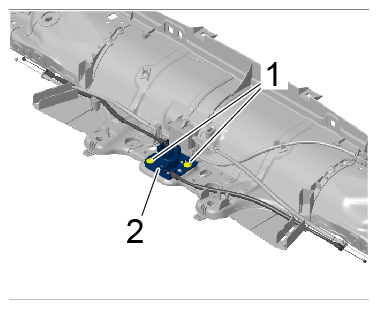

Screws securing release mechanism to upper part of lock carrier Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360248Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Release mechanism

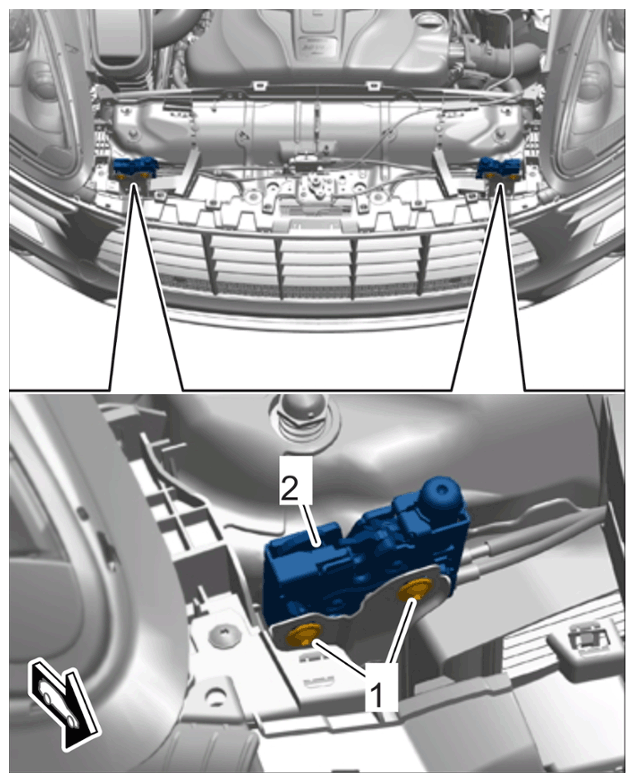

Screws securing lower part of front lid lock to front lock carrier Position 1 Tightening torque 11 Nm
G14360249Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of front lid lock

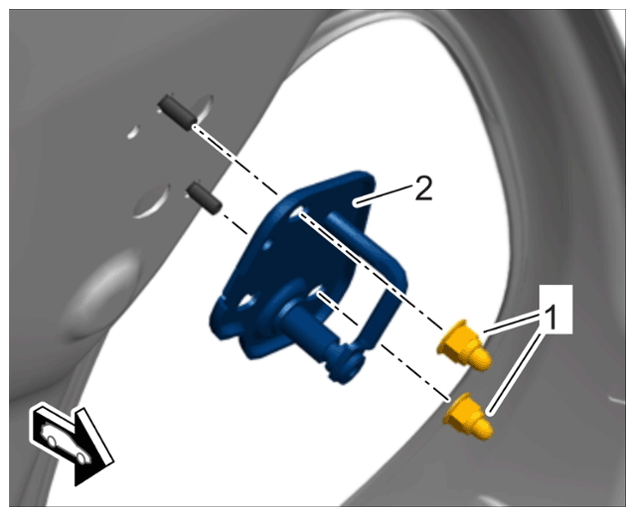

Nuts securing upper part of front lid lock to front lid Item 1 Tightening torque 8 (6 ftlb.) Nm
G14360250Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts securing upper part of front lid lock

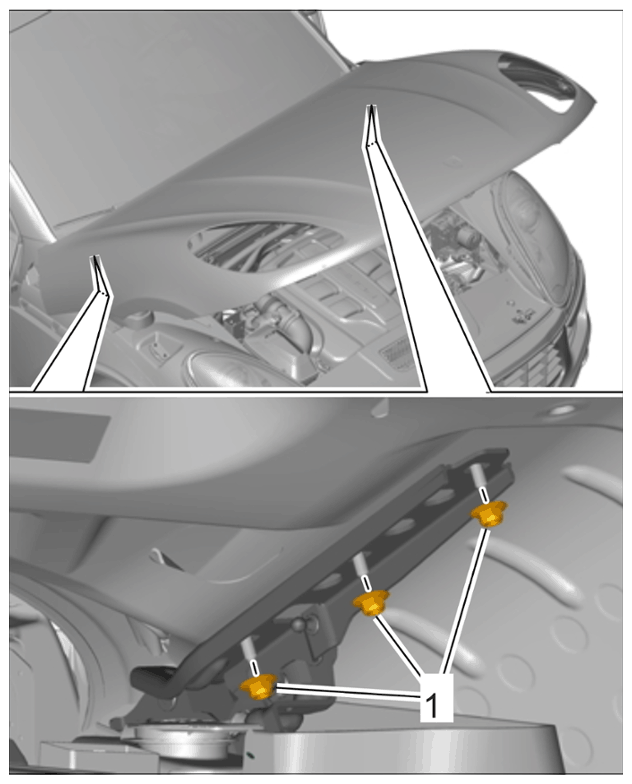

Nuts securing front lid hinge to front lid Item 1 Tightening torque 20 (15 ftlb.) Nm
G14360251Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid

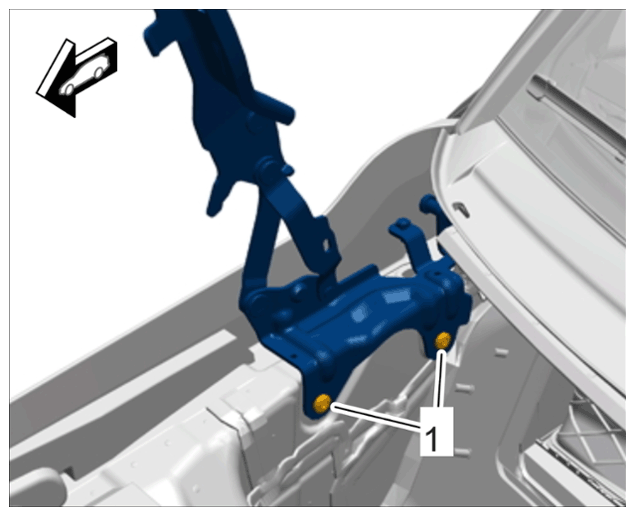

Screws securing front lid hinge to body Item 1 Tightening torque 20 (15 ftlb.) Nm
G14360252Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid hinge

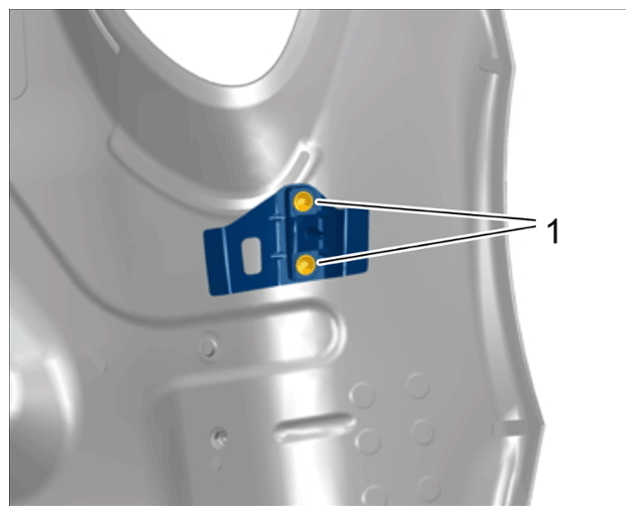

Screws securing guide plate to front lid Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360253Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide plate

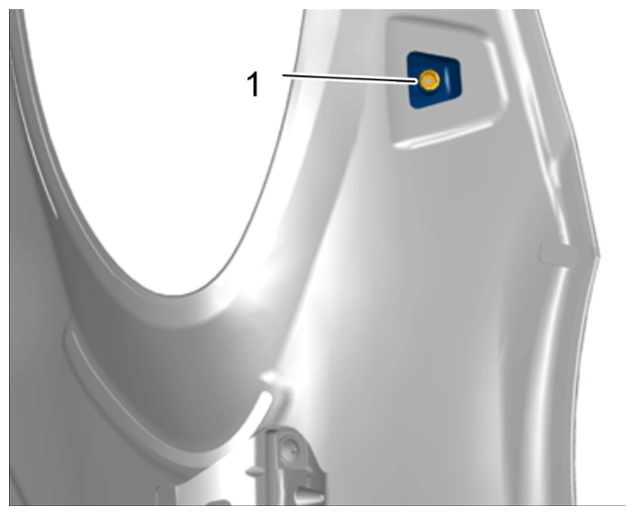

Nut securing rubber stop to lid front Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360254Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber stops

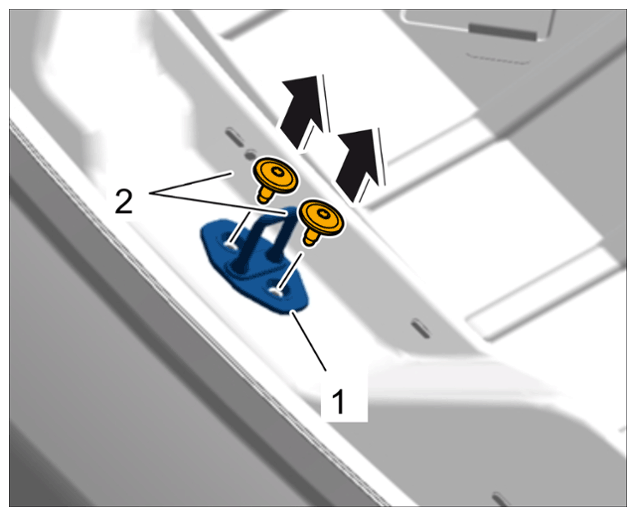

Screws securing lower part of rear lid lock to body Item 2 Tightening torque 18 (13 ftlb.) Nm
G14360255Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear lid lock

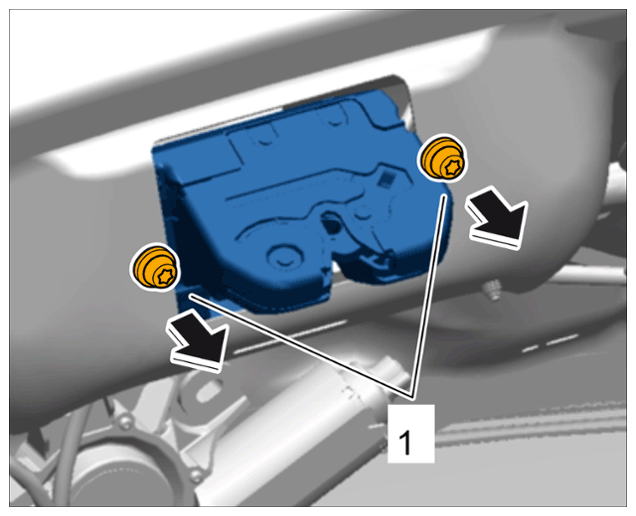

Screw securing rear upper part of lid lock to body Item 1; always use new screw. Initial tightening 8 (6 ftlb.) Nm
G14360256Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock, rear
Screw securing rear upper part of lid lock to body Item 1; always use new screw. Final tightening 45 °
G14360257Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of lid lock, rear

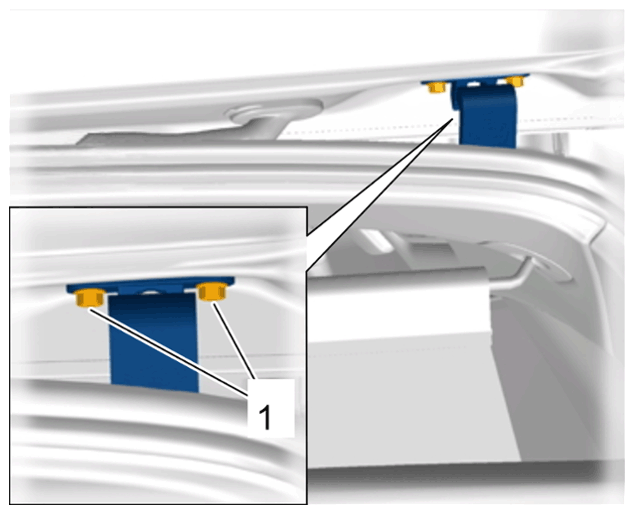

Screws securing rear lid hinge to body Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360258Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge

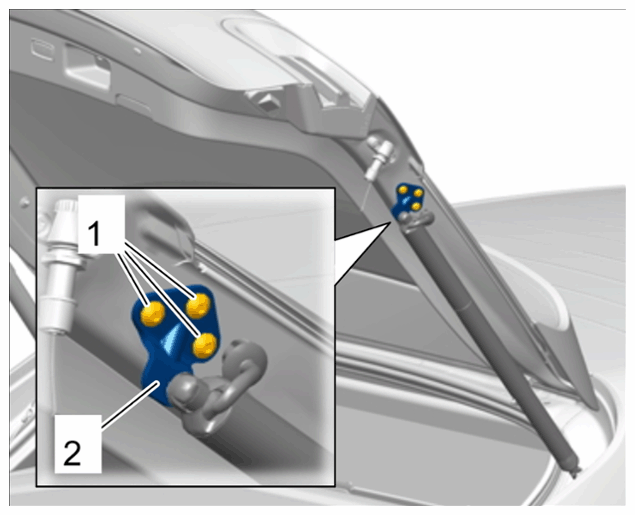

Screws securing bracket for gas-filled shock absorber to rear lid Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360259Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Bracket for gas-filled shock absorber

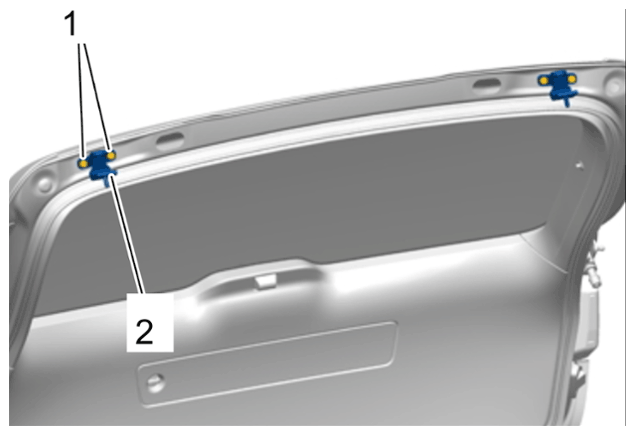

Screws securing tailgate hinge to rear lid Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360260Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tailgate hinge mounting

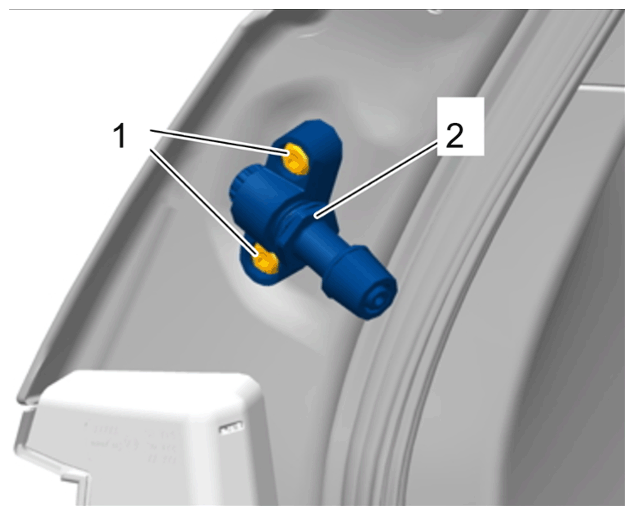

Screws securing adjusting element to rear lid Item 1 Tightening torque 8 (6 ftlb.) Nm
G14360261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting element

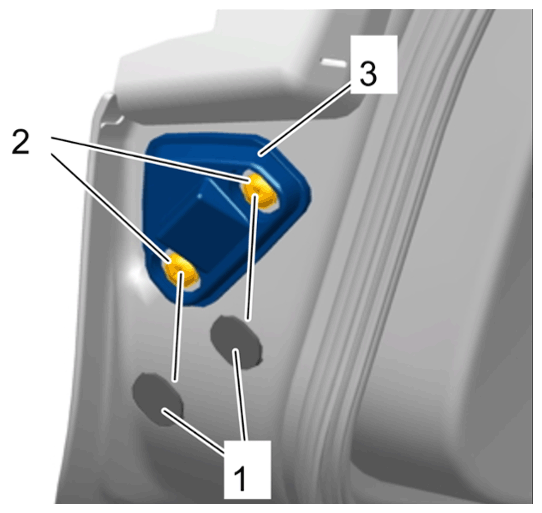

Screws securing guide wedge to rear lid Item 2 Tightening torque 6 (4.5 ftlb.) Nm
G14360262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge

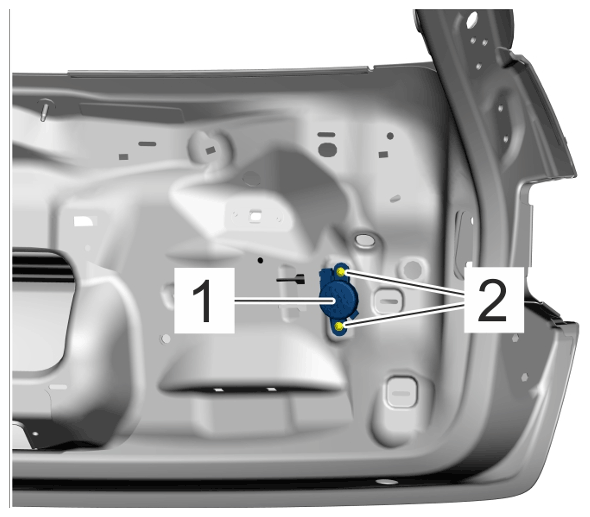

ParkAssist buzzer Item 2 Tightening torque 1.5 (1 ftlb.) Nm
G14360263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ParkAssist buzzer

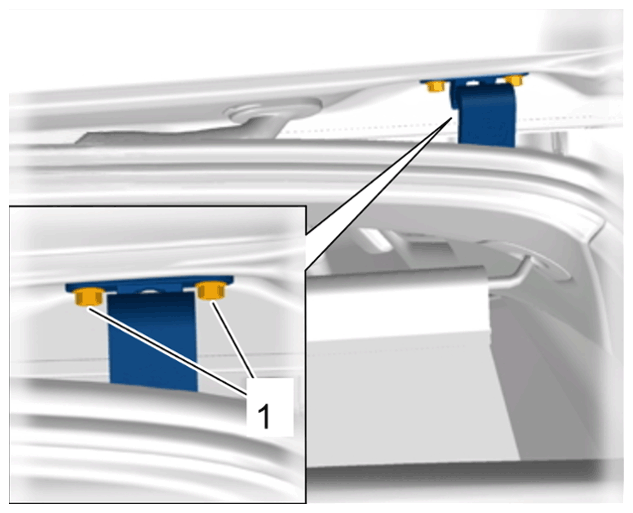

Screws securing rear lid hinge to rear lid Item 1 Tightening torque 10 (7.5 ftlb.) Nm
G14360264Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge

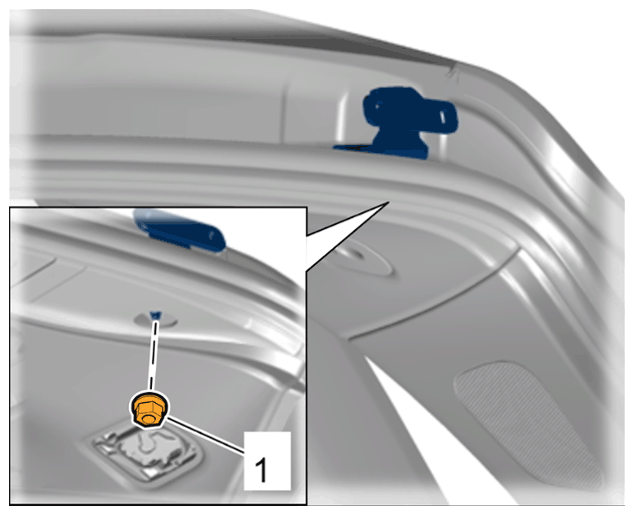

Nut securing rear lid hinge to body Item 1 Tightening torque 23 (17 ftlb.) Nm
G14360265Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear lid hinge (on body side)

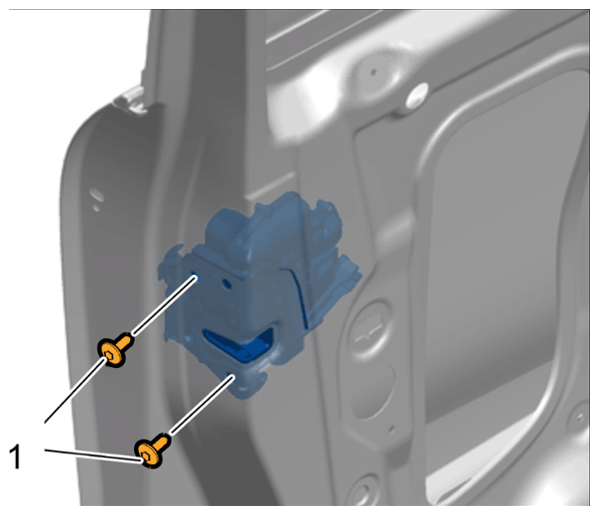

Screws securing door lock to door Item 1 Tightening torque 20 (15 ftlb.) Nm
G14360266Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

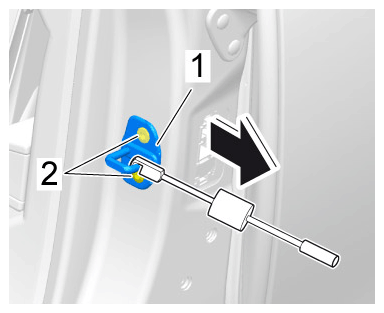

Screws securing lock peg to B-pillar Item 2 Tightening torque 25 (19 ftlb.) Nm
G14360267Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg (striker pin)

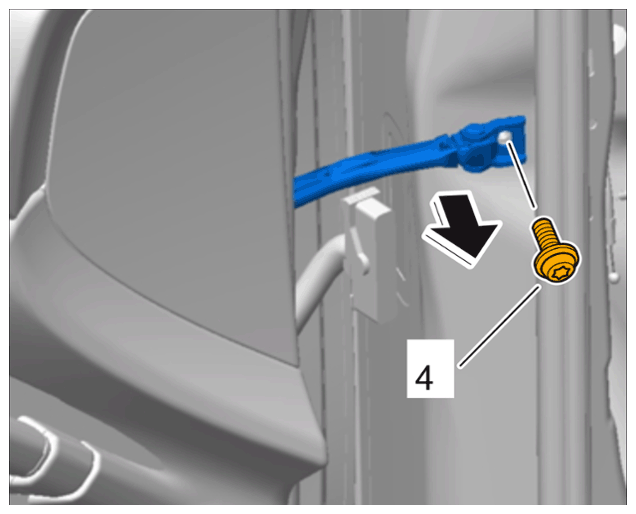

Screw securing door arrester to door Item 4 Tightening torque 33 (24 ftlb.) Nm
G14360268Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door arrester
Screws on door hinge joint Item 5 Tightening torque 27 (20 ftlb.) Nm
G14360269Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on door hinge joint

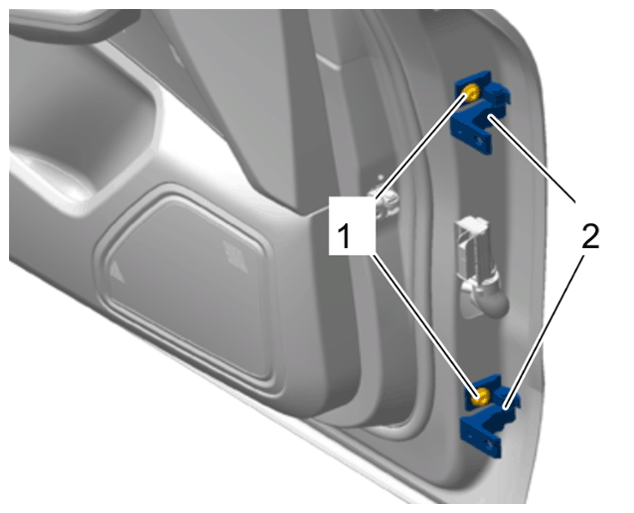

Screws securing front door hinge to front door Item 1 Tightening torque 55 (41 ftlb.) Nm
G14360270Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front door hinge

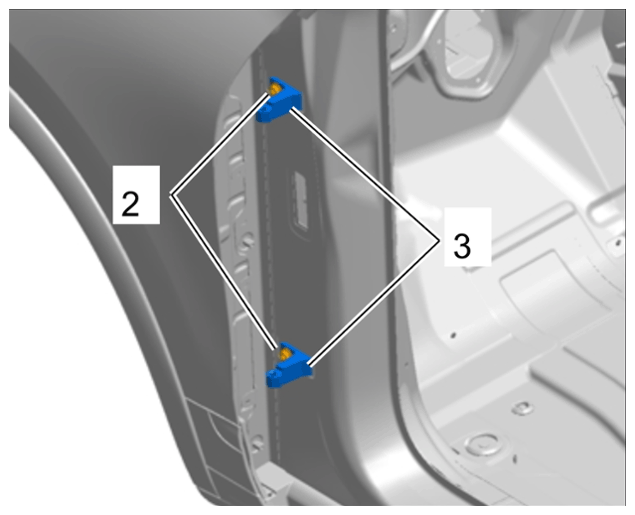

Screws securing front door hinge to outer A-pillar Item 2 Tightening torque 50 (37 ftlb.) Nm
G14360271Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge on body side, outer

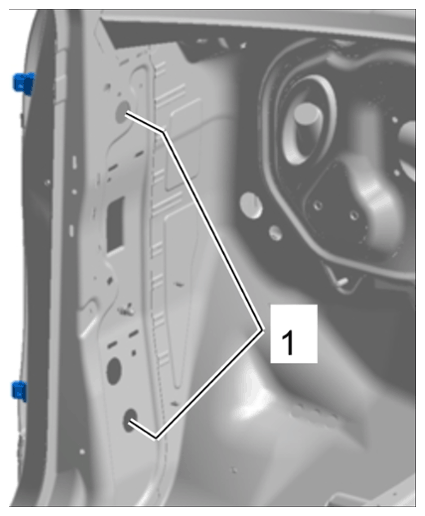

Screws securing front door hinge to inner A-pillar Item 1 Tightening torque 50 (37 ftlb.) Nm
G14360272Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door hinge on body side, inner

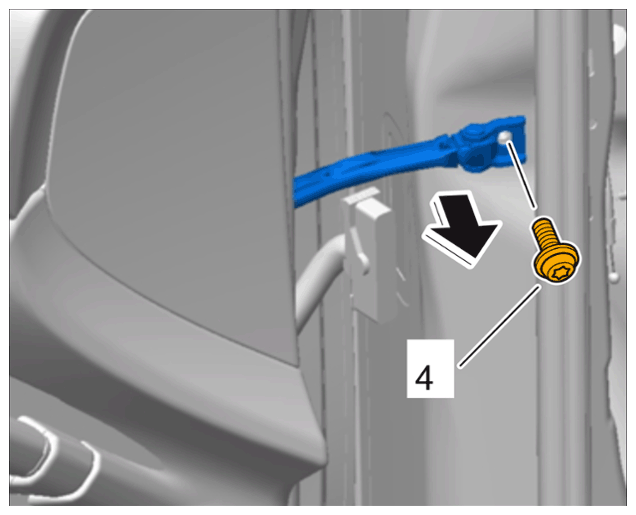

Screw securing front door arrester to body Item 4 Tightening torque 33 (24 ftlb.) Nm
G14360273Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw
Screws securing front door arrester to door Item 2 Tightening torque 8 (6 ftlb.) Nm
G14360274Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws

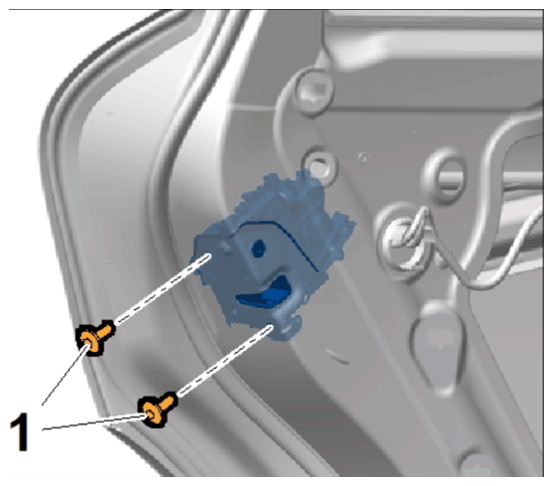

Screw for rear door lock Item 1 Tightening torque 20 (15 ftlb.) Nm
G14360275Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for door lock

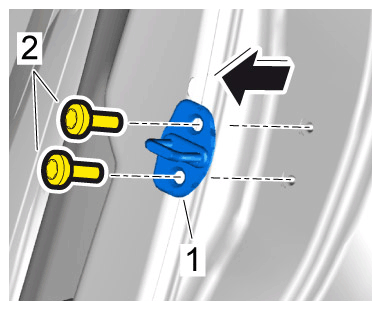

Screws securing lock peg to body Item 2 Tightening torque 25 (19 ftlb.) Nm
G14360276Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lock peg (striker pin)

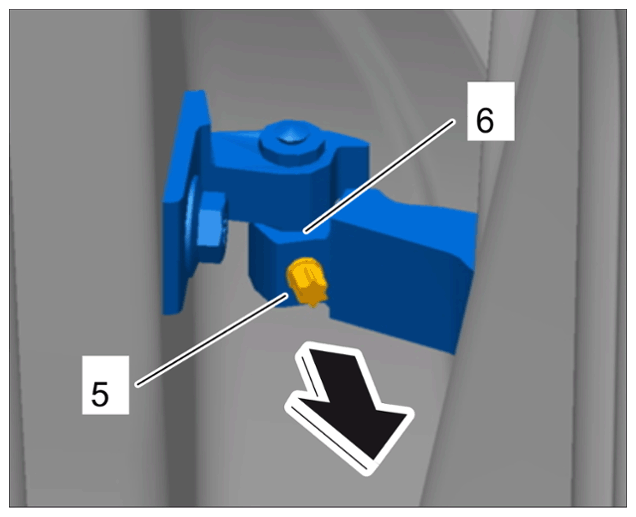

Screws on door hinge joint Item 5 Tightening torque 27 (20 ftlb.) Nm
G14360277Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on door hinge joint

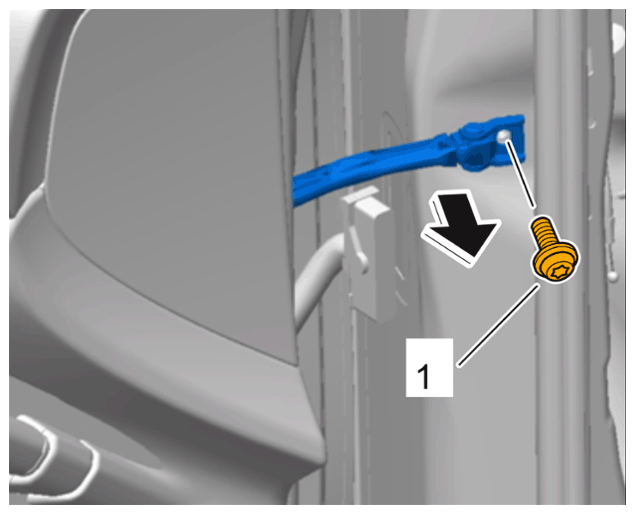

Screw securing door arrester to door Item 1 Tightening torque 33 (24 ftlb.) Nm
G14360278Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screw for door arrester

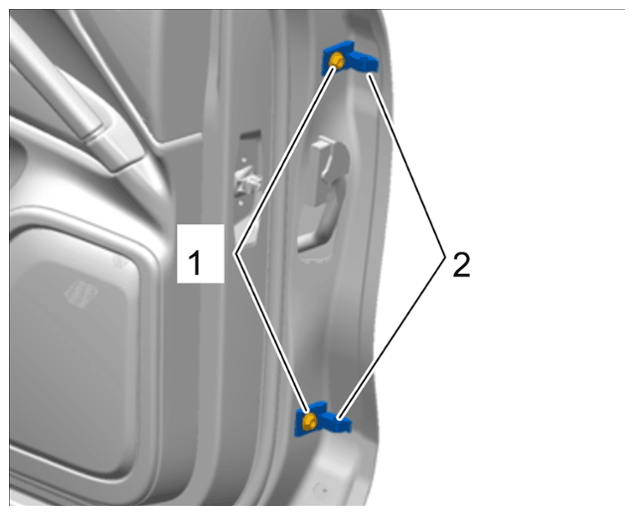

Screws securing door hinge to rear door Item 1 Tightening torque 55 (41 ftlb.) Nm
G14360279Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door hinge on door side

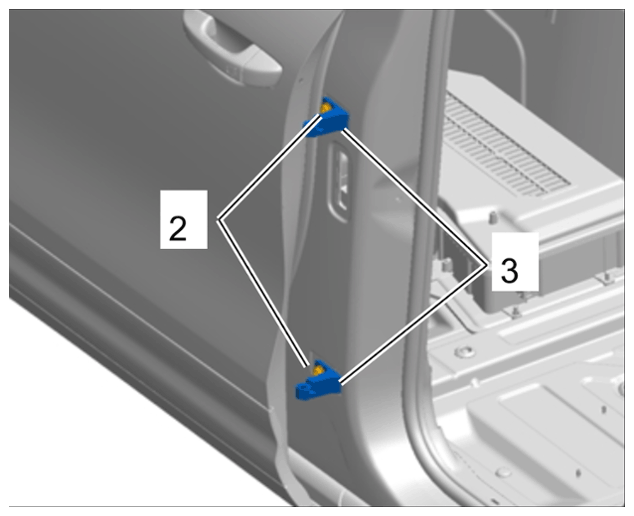

Screws securing door hinge to outer B-pillar Item 2 Tightening torque 50 (37 ftlb.) Nm
G14360280Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door hinge on body side, outer

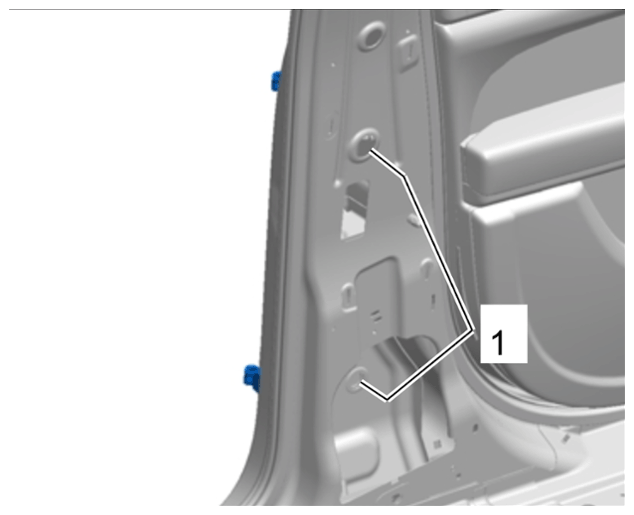

Screws securing door hinge to inner B-pillar Item 1 Tightening torque 50 (37 ftlb.) Nm
G14360281Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear door hinge on body side, inner

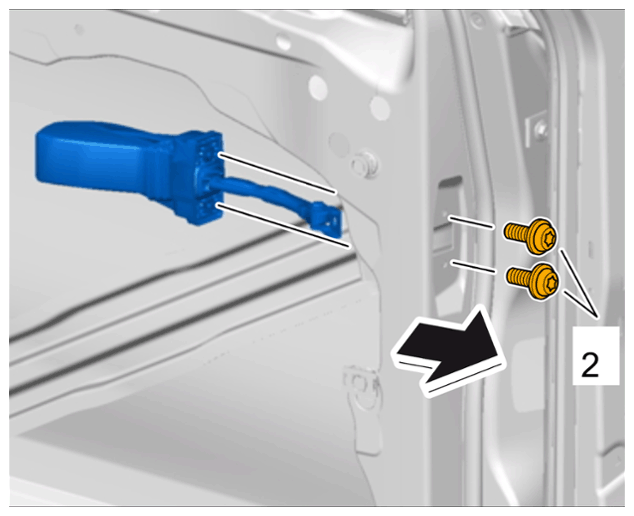

Screw securing rear door arrester to door Item 2 Tightening torque 8 (6 ftlb.) Nm
G14360282Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Door arrester

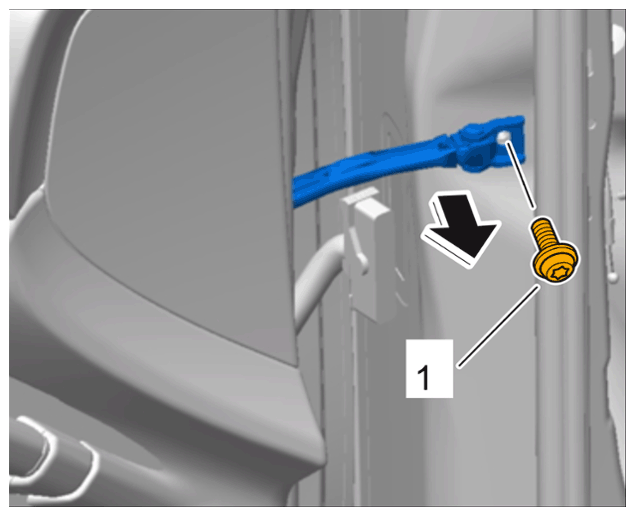

Screw securing rear door arrester to B-pillar Item 1 Tightening torque 33 (24 ftlb.) Nm
G14360283Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Unscrewing fastening screw at the body
