Front Door
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
| Location |
Description |
Type |
Basic value |
Tolerance |

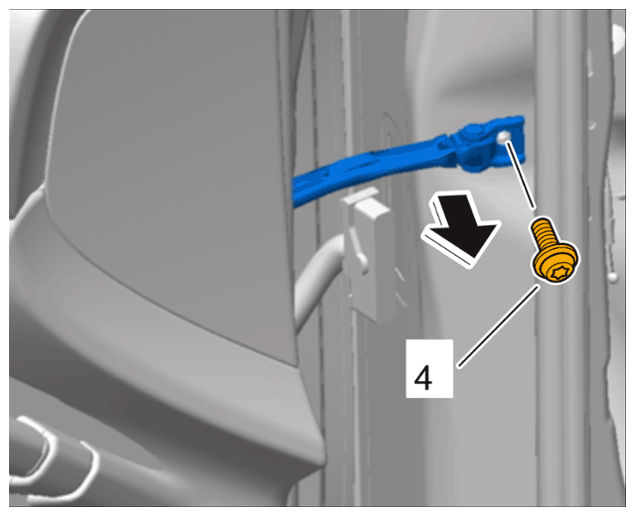

| Screw securing door arrester to door |
Item 4 |
Tightening torque |
33 (24 ftlb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw for door arrester |
|
|
|
|

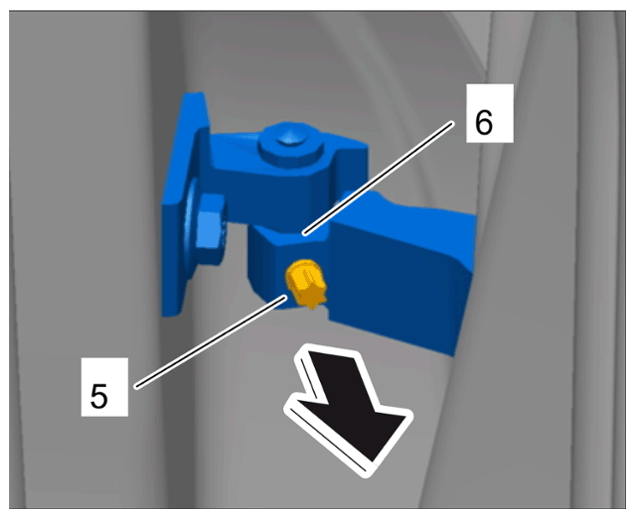

| Screws on door hinge joint |
Item 5 |
Tightening torque |
27 (20 ftlb.) Nm |
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screws on door hinge joint |
|
|
|
|
