Front Door Hinge

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Screws securing front door hinge to front door	Item 1	Tightening torque	55 (41 ftlb.) Nm

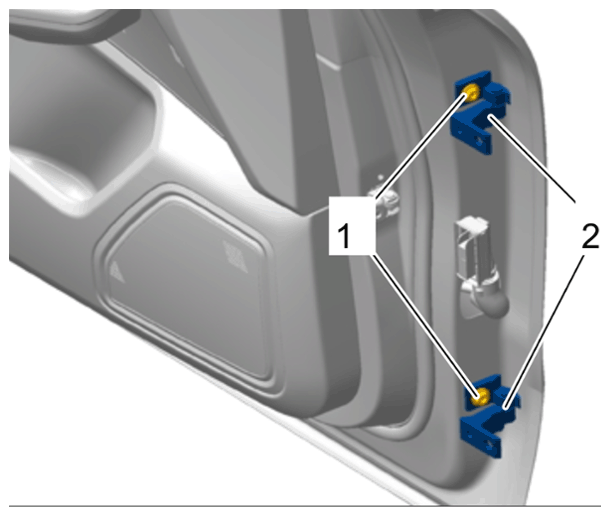

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front door hinge
Screws securing front door hinge to outer A-pillar	Item 2	Tightening torque	50 (37 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge on body side, outer
Screws securing front door hinge to inner A-pillar	Item 1	Tightening torque	50 (37 ftlb.) Nm

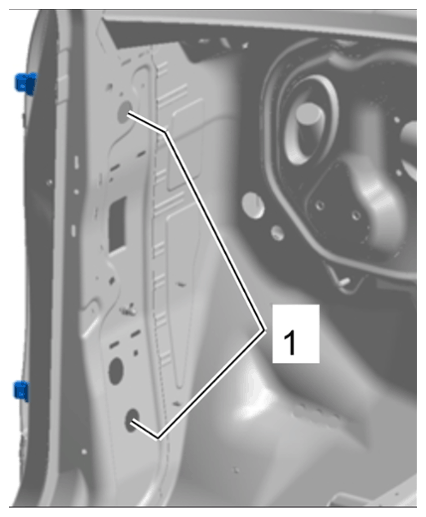

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Door hinge on body side, inner
