Upper Part Of Lid Lock, Rear

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value
Screw securing rear upper part of lid lock to body	Item 1; always use new screw.	Initial tightening	8 (6 ftlb.) Nm

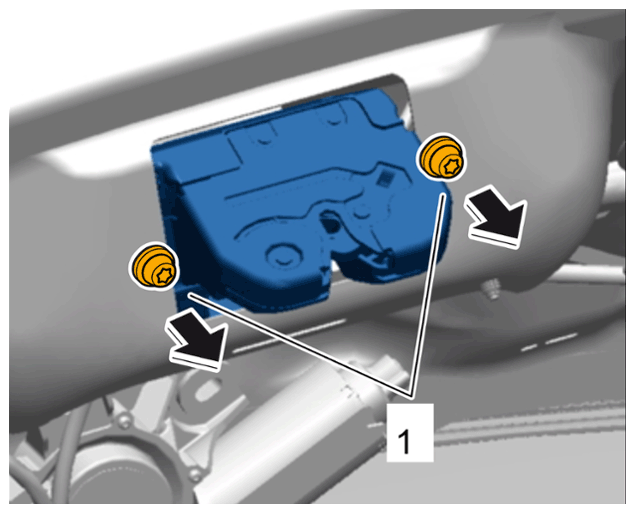

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of lid lock, rear
Screw securing rear upper part of lid lock to body	Item 1; always use new screw.	Final tightening	45 °

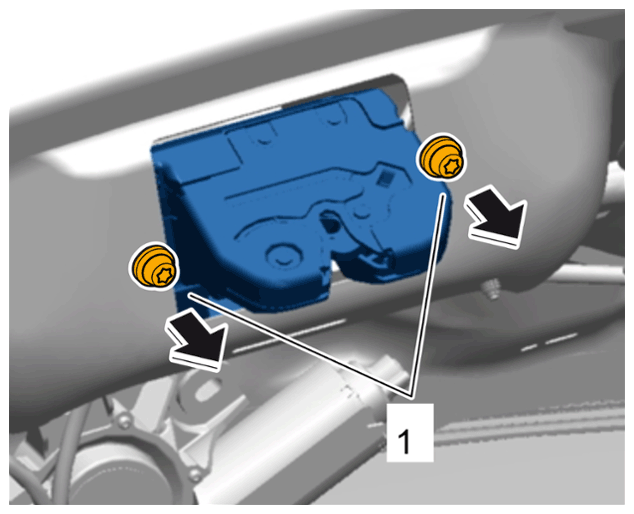

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Upper part of lid lock, rear
