Lower Part Of Front Lid Lock

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
Location Description Type Basic value Tolerance
Screws securing lower part of front lid lock to front lock carrier Position 1 Tightening torque 11 Nm

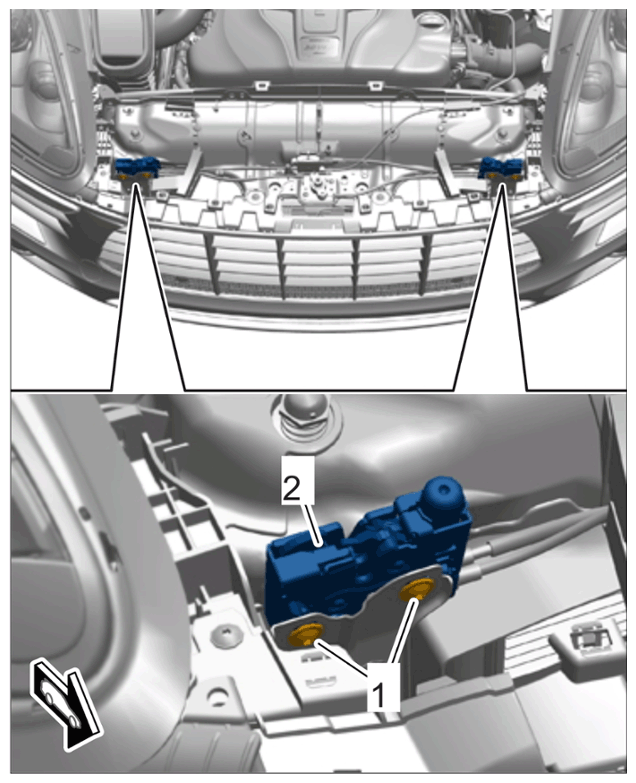

G14360315Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of front lid lock
