Front Lid

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

Location	Description	Type	Basic value

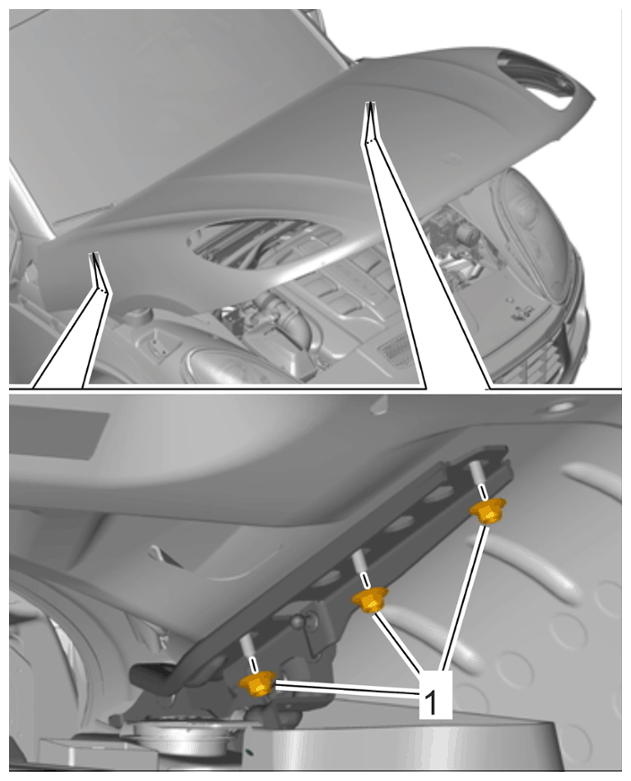

Nuts securing front lid hinge to front lid	Item 1	Tightening torque	20 (15 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid

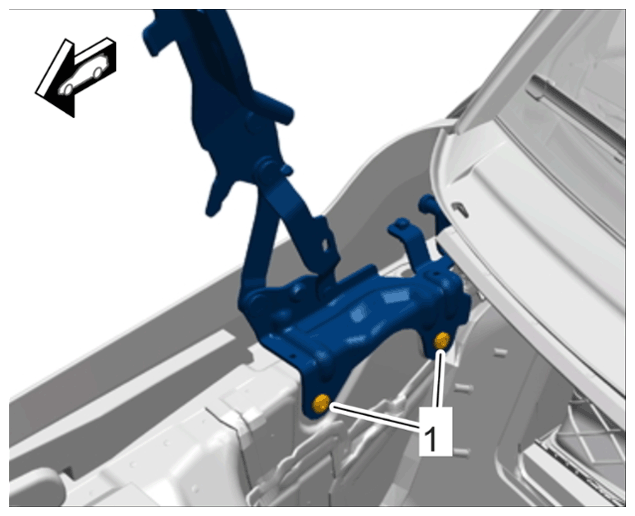

Screws securing front lid hinge to body	Item 1	Tightening torque	20 (15 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid hinge

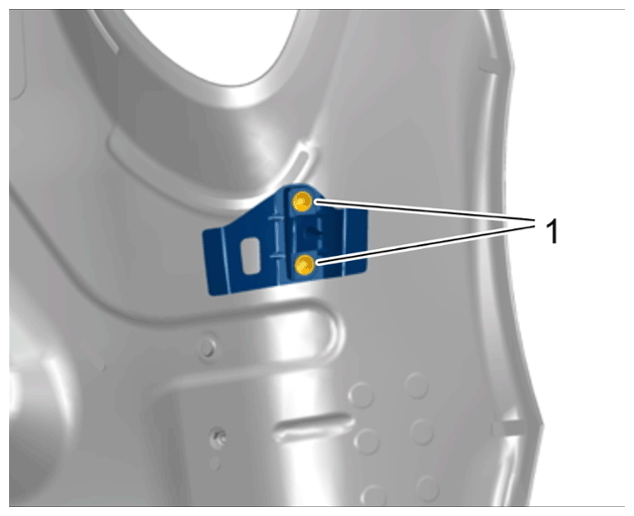

Screws securing guide plate to front lid	Item 1	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide plate

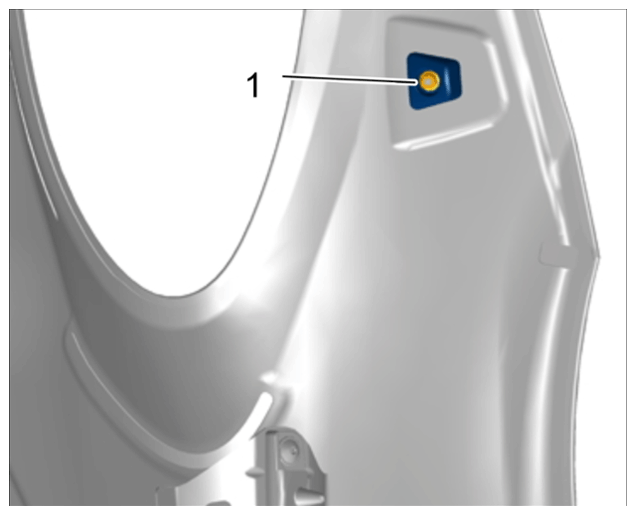

Nut securing rubber stop to lid front	Item 1	Tightening torque	10 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rubber stops
