TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2

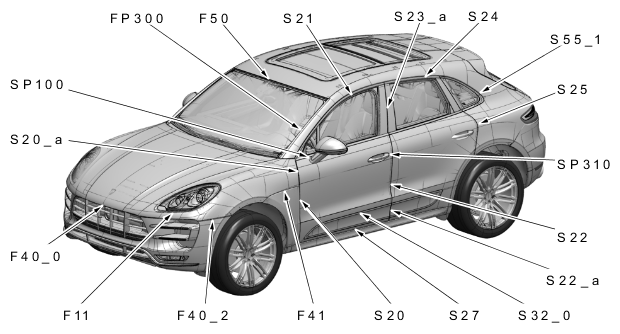

Mirror to door (SP100)		Gap dimension	1.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to pillar (FP300)		Gap dimension	- 0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Windscreen to roof (F50)		Gap dimension	3.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to side panel (S21)		Gap dimension	4.5 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Trim, front to rear (S23_a)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimension
Strip to side panel (S24)		Gap dimension	4.5 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Strip to side panel (S55_1)		Gap dimension	3.8 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear door to side panel (S25)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Handle to front door (SP310)		Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear door to front door (S22)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Trim, front to rear (S22a)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Trim to door (S32_0)		Gap dimension	1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

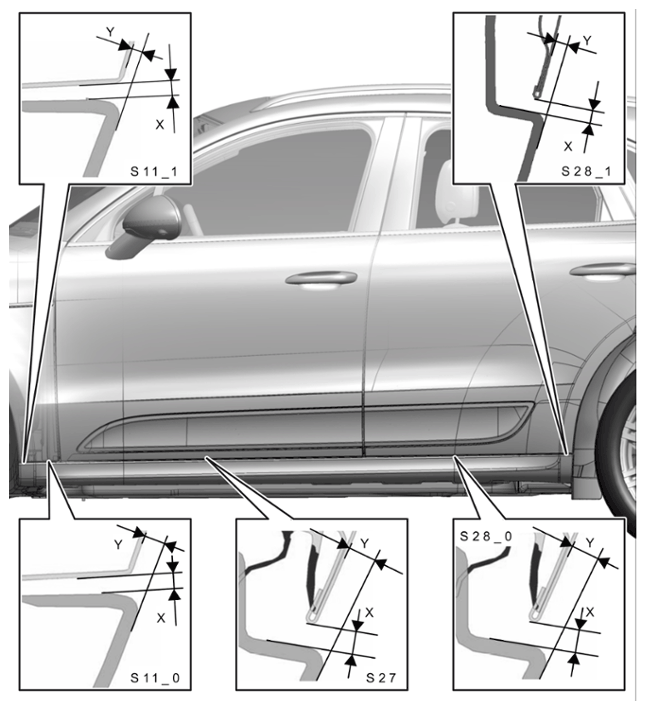

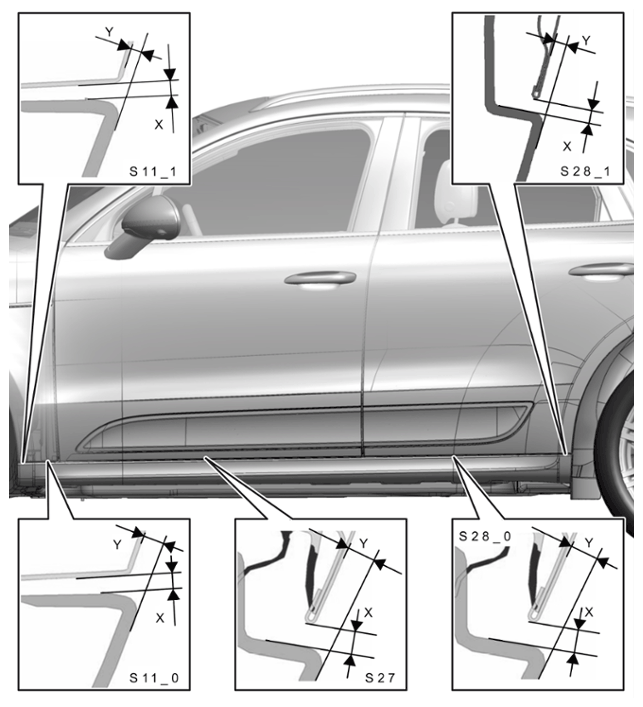

Door sill to door (S27)		Gap dimension	4 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Door to wing (S20)		Gap dimension	4.1 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Front lid to wing (F41)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Front lid to front apron (F40_2)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Headlight to front lid (F11)		Gap dimension	4.7 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Front lid to front apron (F40_0)		Gap dimension	4.8 mm	+ 1 mm	- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Door to front lid (S20_a)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

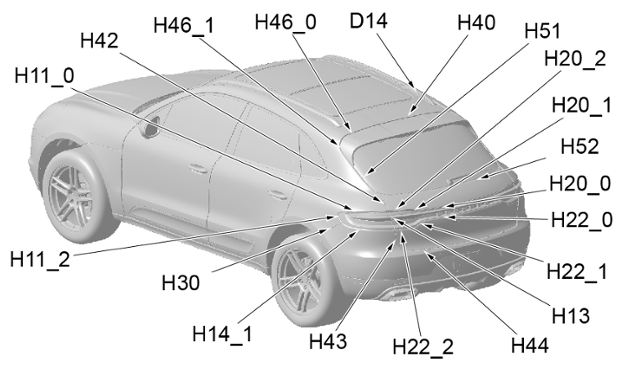

Light to side panel (H11_0)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to side panel (H42)		Gap dimension	4 mm	+ 0.7 mm	- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Spoiler to side panel (H46_1)		Gap dimension	4 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Spoiler to side panel (H46_0)		Gap dimension	6 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Roof to side panel (D14)		Gap dimension	- 3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Spoiler to roof (H40)		Gap dimension	6 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear window to side panel (H51)		Gap dimension	4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

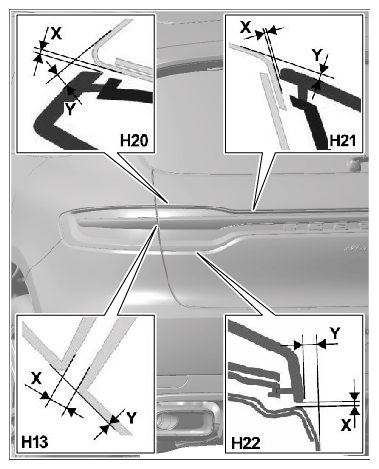

Tail light to rear lid (H20_2)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to rear lid (H20_1)		Gap dimension	1.3 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear window to rear lid (H52)		Gap dimension	4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to rear lid (H20_0)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to rear lid (H22 0)		Gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to rear lid (H22_1)		Gap dimension	1.8 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to outer tail light (H13)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to rear apron (H44)		Gap dimension	4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Light to rear lid (H22_2)		Gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to rear apron (H43)		Gap dimension	4 mm	+ 0.7 mm	- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to rear apron (H14_1)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear apron to side panel (H30)		Gap dimension	0 mm	+ 0.5 mm	- 0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Tail light to side panel (H11_2)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions

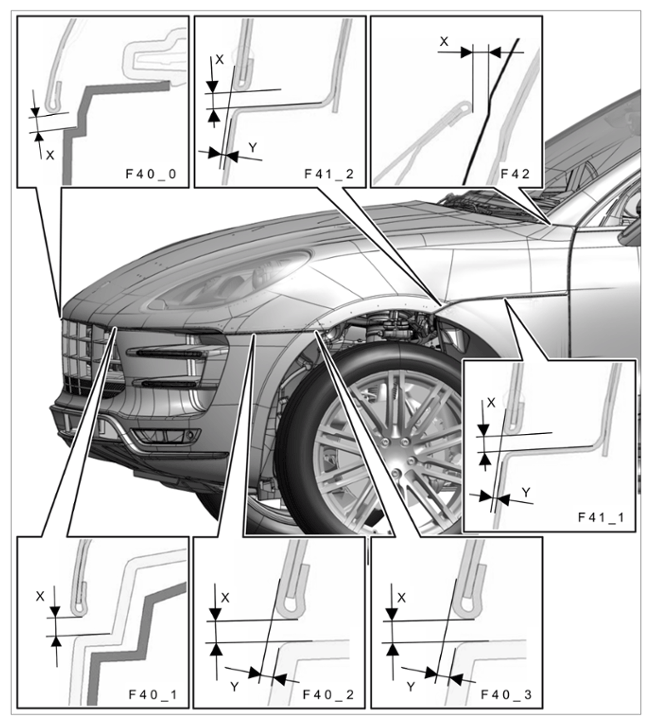

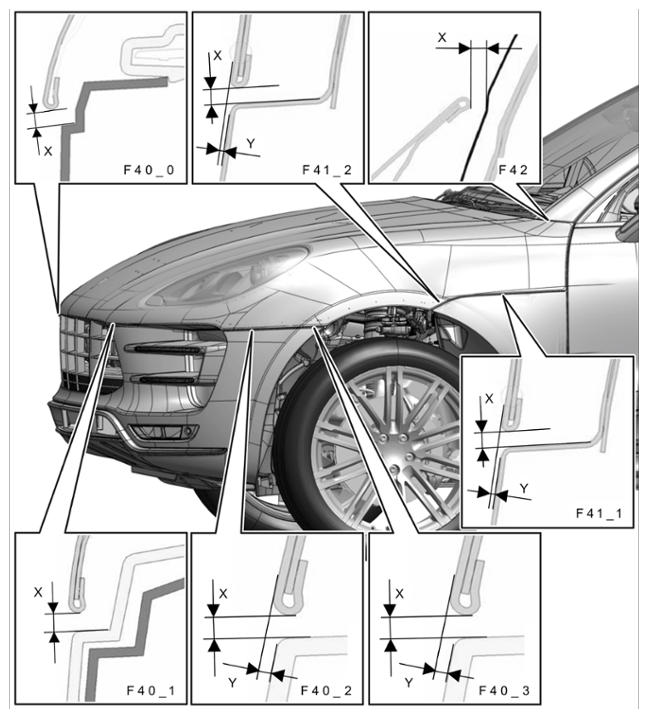

Front lid to front apron (x) (F40_0)		Gap dimension	4.8 mm	+ 1 mm	- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (x) (F40_1)		Gap dimension	4.8 mm	+ 1 mm	- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (x) (F40_2)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (y) (F40_2)		Gap dimension	1.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (x) (F40_3)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to front apron (y) (F40_3)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (x) (F41_1)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (y) (F41_1)		Gap dimension	1 mm	+ 1.5 mm	- 0 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (x) (F41_2)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to wing (y) (F41_2)		Gap dimension	1, 5 mm	+ 1.5 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section
Front lid to side panel (x) (F42)		Gap dimension	4.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for body front section

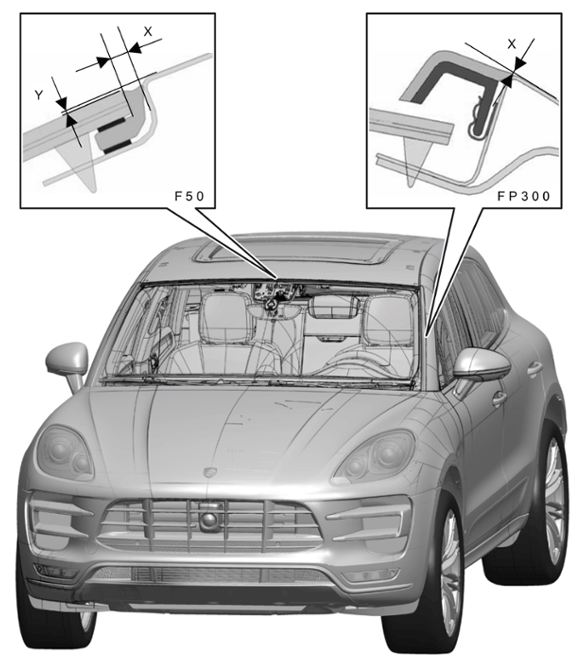

Windscreen to roof (x) (F50)		Gap dimension	3.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for windscreen
Windscreen to roof (y) (F50)		Gap dimension	- 0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for windscreen
Water drain strip to side panel (x) (FP300)		Gap dimension	- 0.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for windscreen

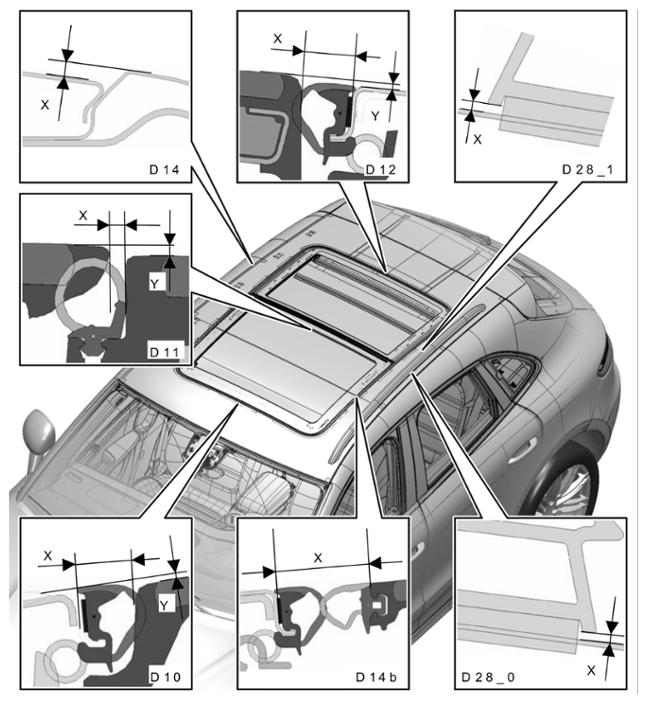

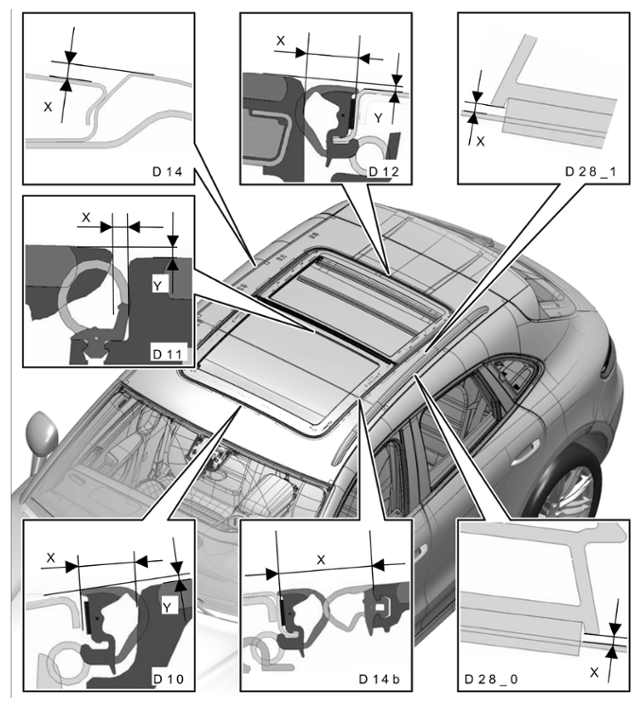

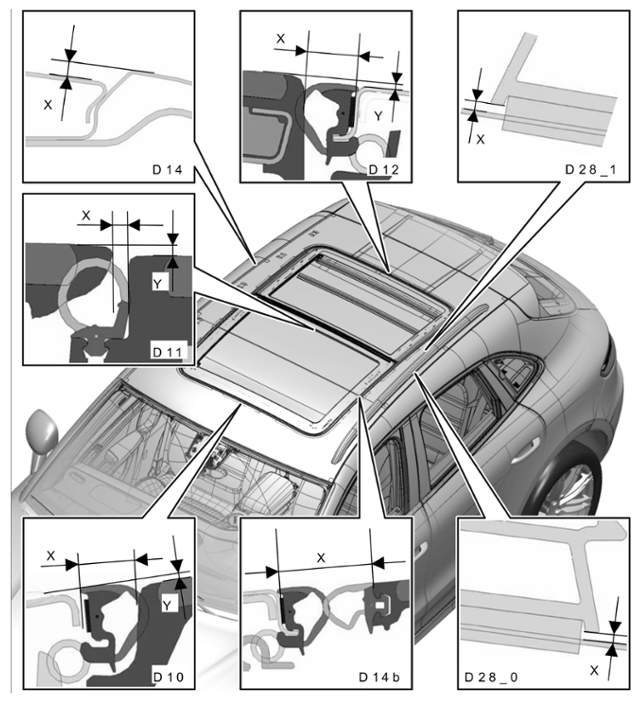

Panoramic sliding roof to roof, front (x) (D10)		Gap dimension	10 mm	+/- 1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, front (y) (D10)		Gap dimension	- 1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof part 1 to part 2 (x) (D11)		Gap dimension	2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof part 1 to part 2 (y) (D11)		Gap dimension	1 mm	+/- 1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, rear (x) (D12)		Gap dimension	10 mm	+/- 1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, rear (y) (D12)		Gap dimension	1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Roof to side panel (x) (D14)		Gap dimension	- 3 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Panoramic sliding roof to roof, sides (x) (D14b)		Gap dimension	22 mm	+/- 1.2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Roof rail to roof, outer (x) (D28_0)		Gap dimension	1.5 mm	+/- 0.75 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof
Roof rail to roof, inner (x) (D28_1)		Gap dimension	1.5 mm	+/- 0.75 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for roof

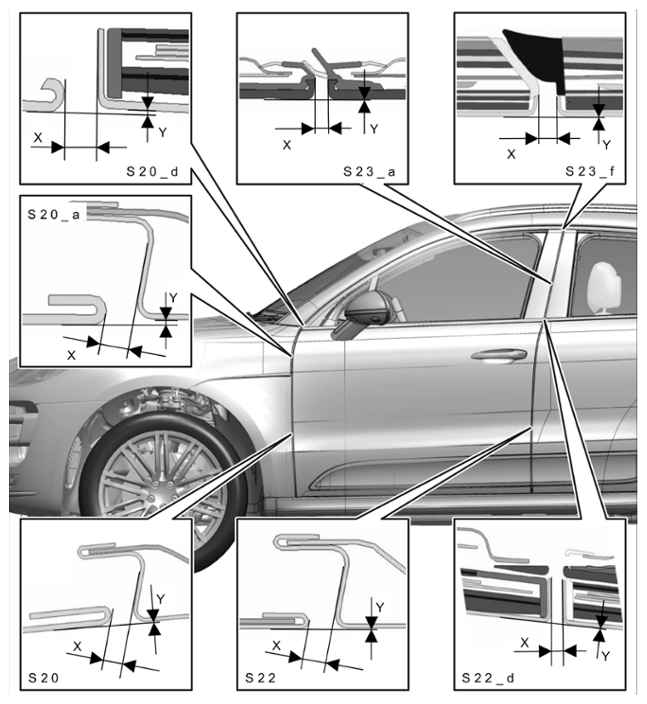

Door moulding, rear to front (x) (S20_d)		Gap dimension	4.1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door moulding, rear to front (y) (S20_d)		Gap dimension	- 1 mm	+ 1 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
B-pillar trim, rear to front (x) (S23_a)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
B-pillar trim, rear to front (y) (S23_a)		Gap dimension	0 mm	+ 0.5 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door moulding, top rear to front (x) (S23_f)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door moulding, top rear to front (y) (S23_f)		Gap dimension	0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to front lid (x) (S20_a)		Gap dimension	4.1 mm	+ 0.7 mm	- 0.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to front lid (y) (S20 a)		Gap dimension	- 1 mm	+ 0 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to wing (x) (S20)		Gap dimension	4.1 mm	+ 0.7 mm	- 0.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door to wing (y) (S20)		Gap dimension	0 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Rear door to front door (x) (S22)		Gap dimension	4.2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Rear door to front door (y) (S22)		Gap dimension	0 mm	- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door moulding, rear to front (x) (S22_d)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door moulding, rear to front (y) (S22_d)		Gap dimension	0 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door
Door moulding, top to side panel (x) (S21)		Gap dimension	4.5 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Door moulding, top to side panel (y) (S21)		Gap dimension	0 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door

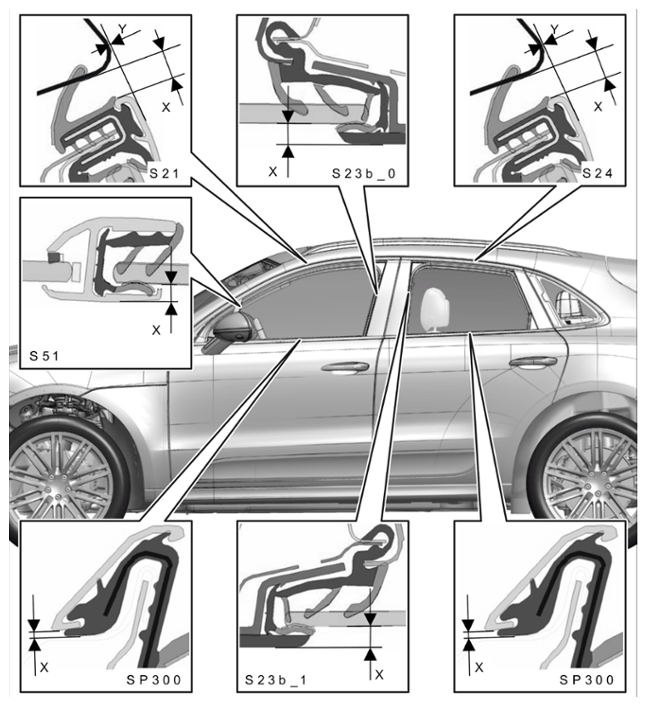

B-pillar trim, front to glazing (x) (S23b_0)		Gap dimension	4.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions of front door to rear door
Door moulding, top to side panel (x) (S24)		Gap dimension	4.5 mm	+/- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Door moulding, top to side panel (y) (S24)		Gap dimension	0 mm	- 2 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Triangular window bar to glazing (x) (S51)		Gap dimension	4.1 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Door moulding, front to outer door panel (x) (SP300)		Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
B-pillar trim, rear to glazing (x) (S23b_1)		Gap dimension	4.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions of front door to rear door
Door moulding, rear to outer door panel (x) (SP300)		Gap dimension	0.8 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for front door to rear door
Rear door to side panel (x) (S25)		Gap dimension	3.5 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear door to side panel (y) (S25)		Gap dimension	0 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window

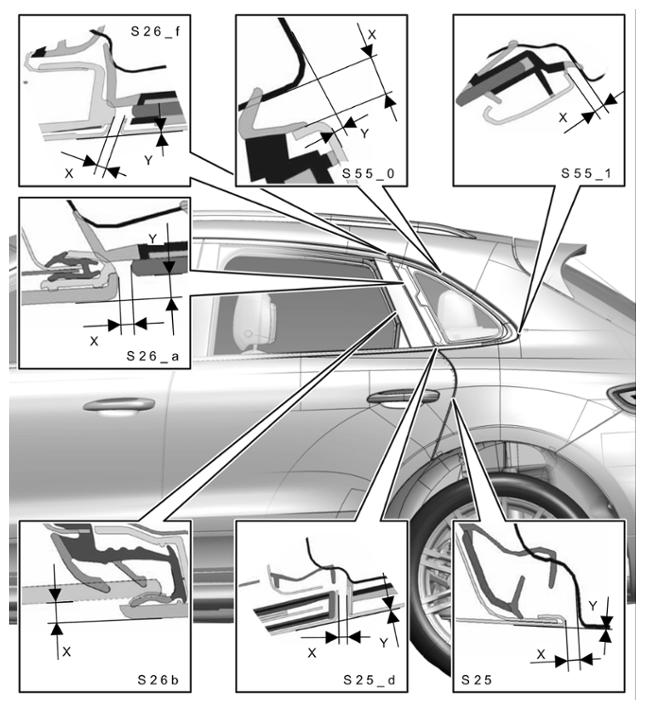

Rear door moulding to rear window moulding (x) (S25_d)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear door moulding to rear window moulding (y) (S25_d)		Gap dimension	0 mm	+ 1.5 mm	- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
C-pillar trim to door window (x) (S26b)		Gap dimension	4.6 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
C-pillar trim to rear window (x) (S26_a)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
C-pillar trim to rear window (y) (S26_a)		Gap dimension	4.2 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Door moulding, top to rear window moulding (x) (S26_f)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Door moulding, top to rear window moulding (y) (S26_f)		Gap dimension	0.3 mm	+ 0.5 mm	- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear window moulding to side panel (x) (S55_0)		Gap dimension	4.5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear window moulding to side panel (y) (S55_0)		Gap dimension	0.8 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window
Rear window moulding to side panel (x) (S55_1)		Gap dimension	3.8 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear door/rear side window

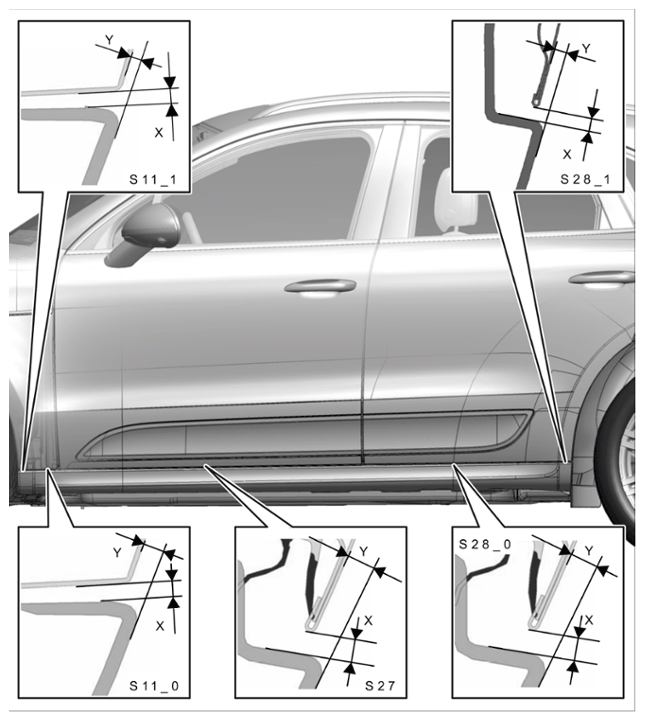

Door sill to wing (x) (S11_0)		Gap dimension	4 mm	+/- 1.5 mm

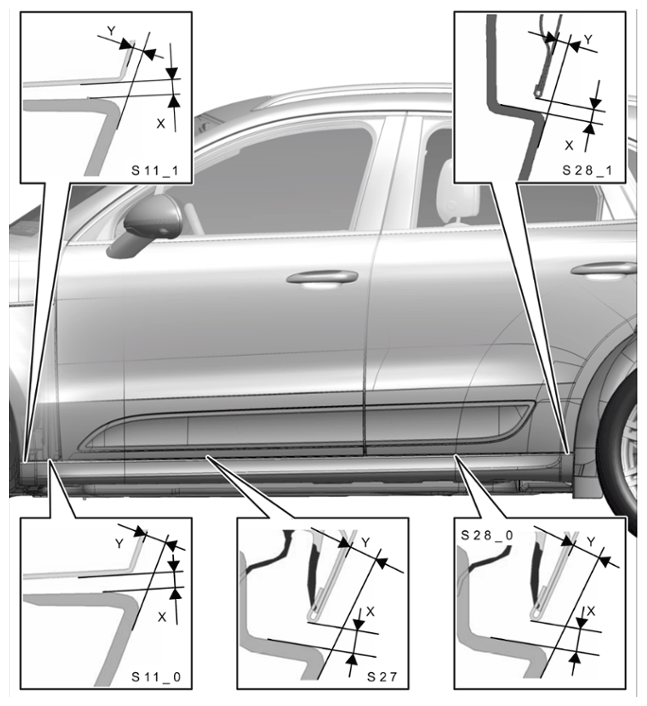

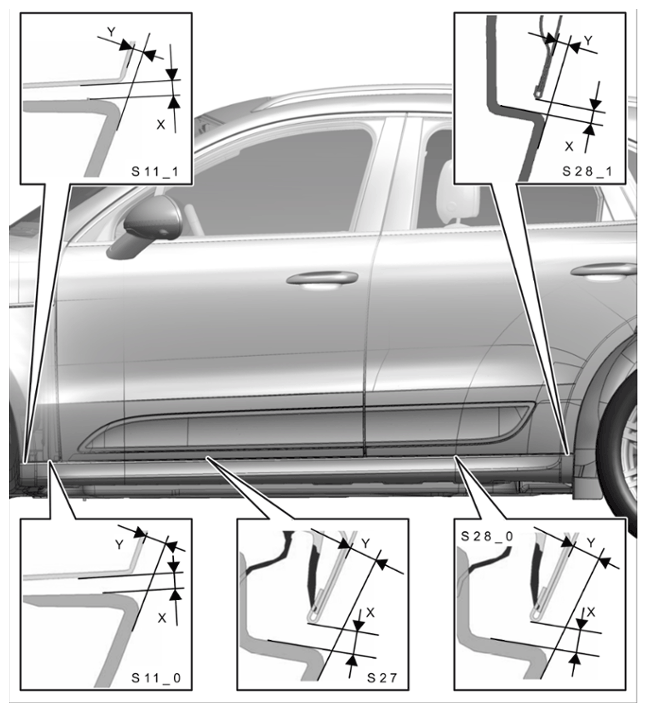

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to wing (y) (S11_0)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to wing (x) (S11_1)		Contact force	4 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to wing (y) (S11_1)		Gap dimension	3 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover

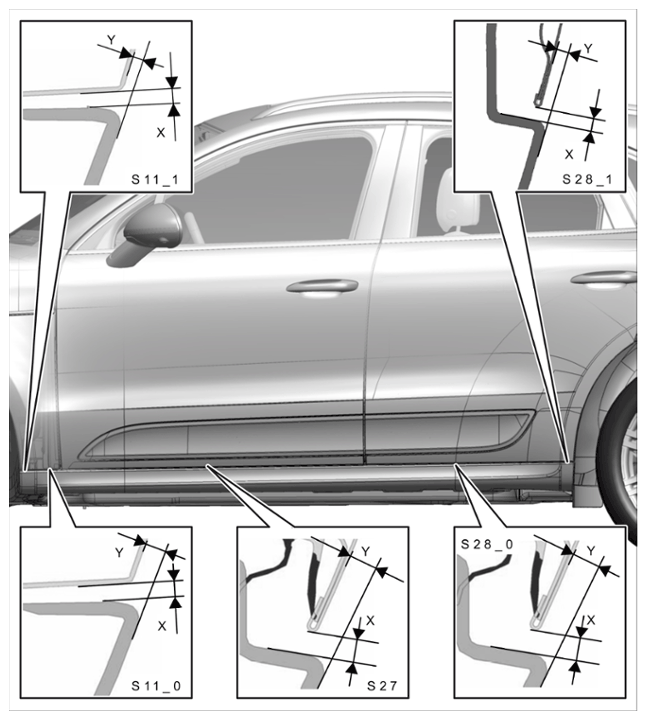

Door sill to front door (x) (S27)		Gap dimension	4 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to front door (y) (S27)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (x) (S28_0)		Gap dimension	4 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (y) (S28_0)		Gap dimension	5 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (x) (S28_1)		Gap dimension	4 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover
Door sill to rear door (y) (S28_1)		Gap dimension	3 mm	+/- 1.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for sill cover

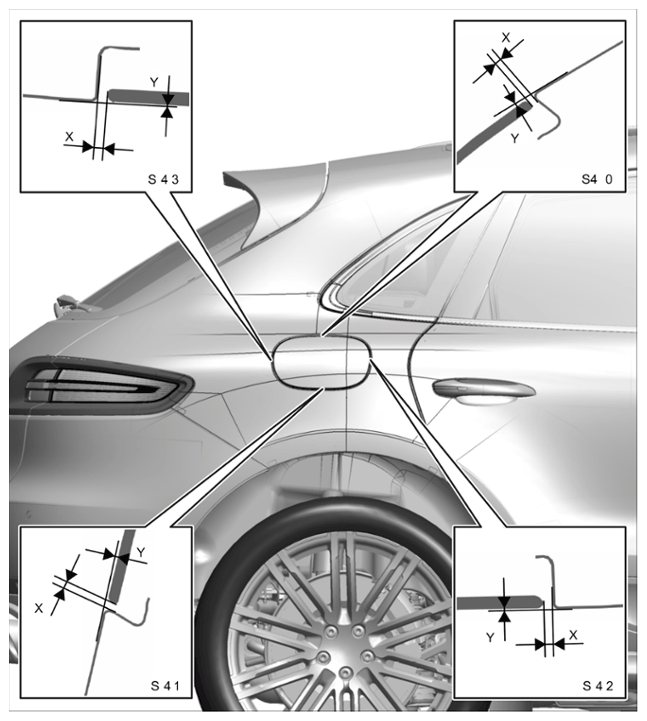

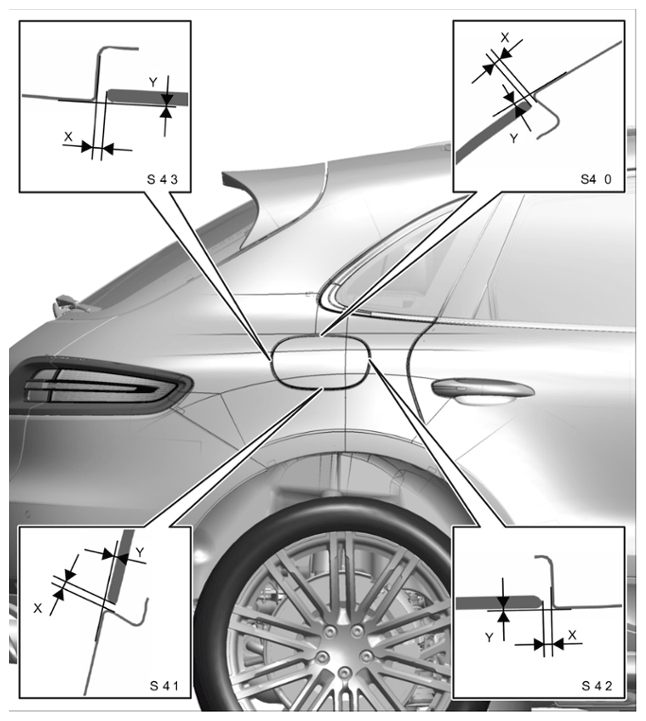

Filler cap to side panel (x) (S40)		Gap dimension	2 mm	+/- 0.5 mm

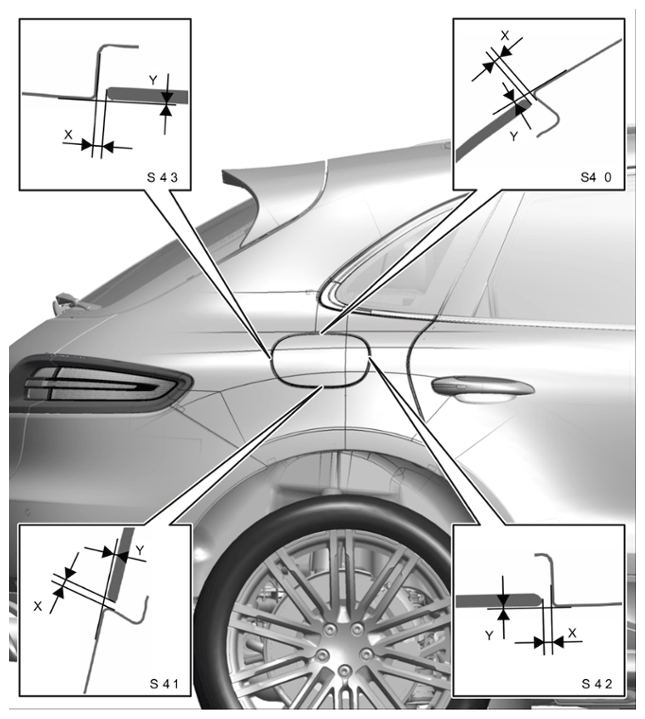

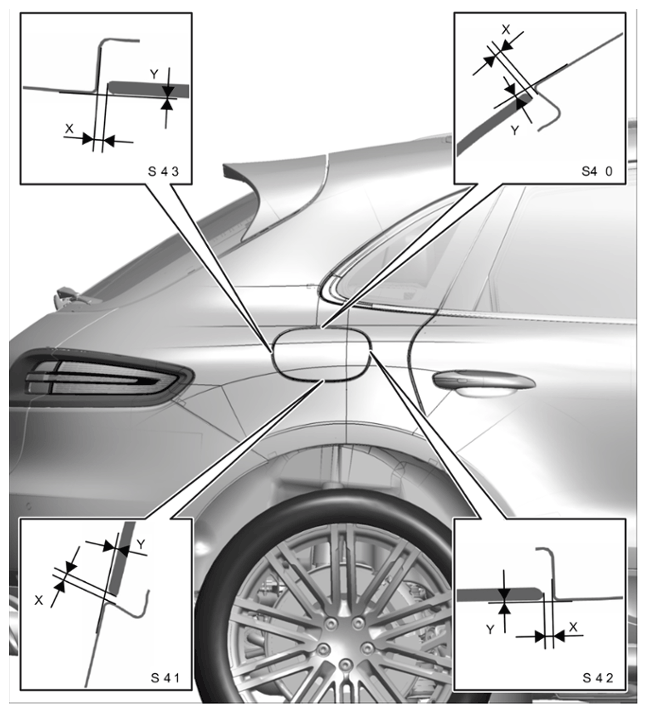

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (y) (S40)		Gap dimension	- 0.25 mm	- 0.25 mm	- 0.85 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (x) (S4)		Gap dimension	2.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (y) (S41)		Gap dimension	- 0.25 mm	+ 0.35 mm	- 0.25 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (x) (S42)		Gap dimension	2, 3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (y) (S42)		Gap dimension	- 0.25 mm	- 0.05 mm	- 0.65 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (x) (S43)		Gap dimension	2.3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap
Filler cap to side panel (y) (S43)		Gap dimension	- 0.25 mm	+ 0.15 mm	- 0.45 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for filler cap

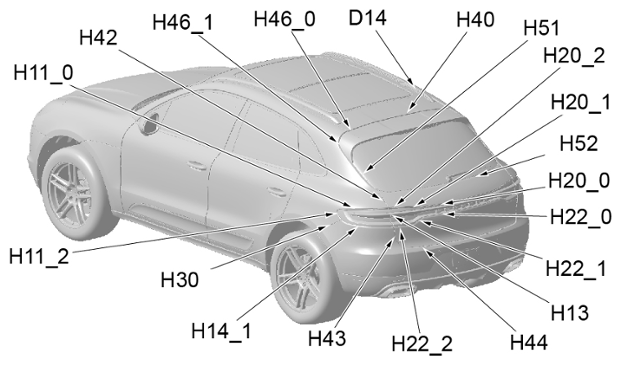

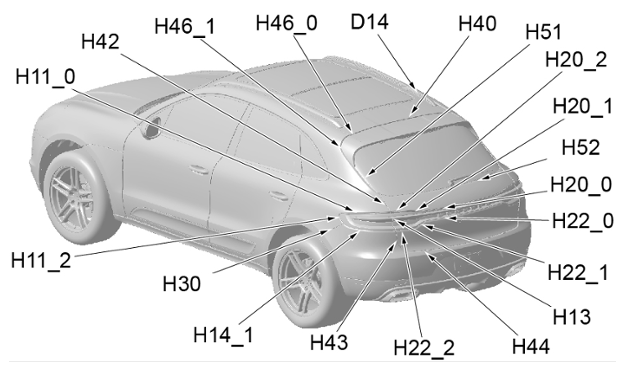

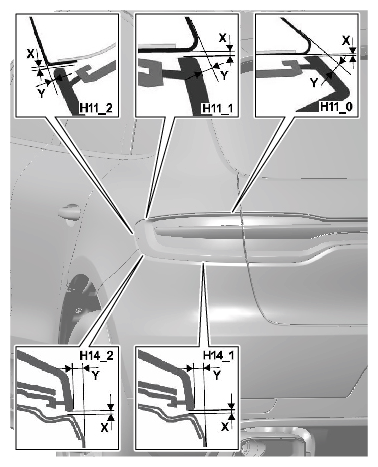

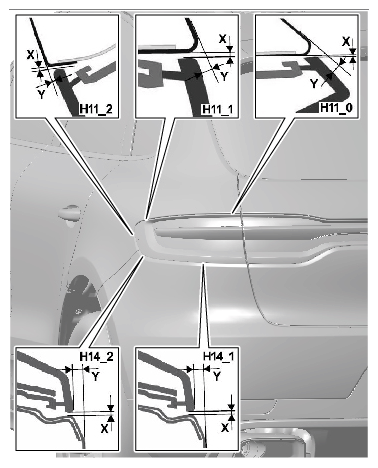

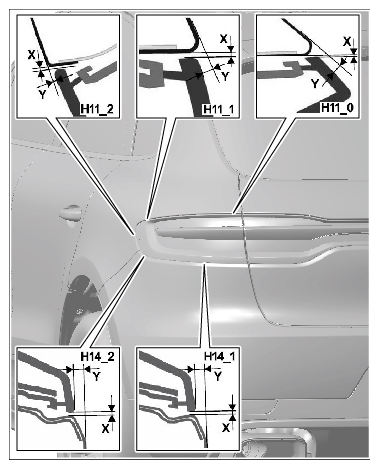

Tail/brake/direction indicator/reversing lights Part 1 to side panel (x) (H11 0)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (y) (H11_0)		Gap dimension	- 4.3 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x) (H11_0)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (y) (H11_1)		Gap dimension	- 2 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (x) (H11_2)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to side panel (y) (H11_2)		Gap dimension	- 2.2 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (x) (H14_1)		Gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (y) (H14_1)		Gap dimension	- 3 mm	+/- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (x) (H14_2)		Gap dimension	1 mm	+ 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to rear apron (y) (H14_2)		Gap dimension	- 2.5 mm	+/- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to Part 2 (x) (H13)		Gap dimension	5 mm	+/- 1.5 mm

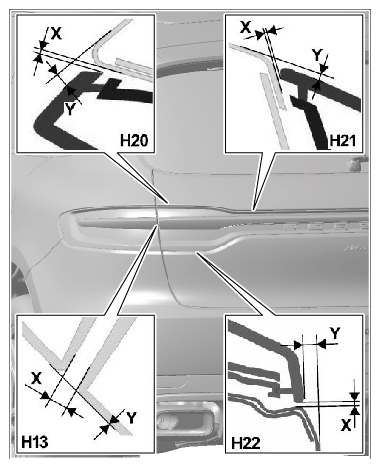

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 1 to Part 2 (y) (H13)		Gap dimension	0 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x) (H20)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y) (H20)		Gap dimension	- 4.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions fot tai. light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x) (H21)		Gap dimension	1 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y) (H21)		Gap dimension	- 4.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (x) (H22)		Gap dimension	2 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Tail/brake/direction indicator/reversing lights Part 2 to rear lid (y) (H22)		Gap dimension	- 2.7 mm	+/- 1, 5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner gap dimensions for tail light
Rear apron to side panel (x) (H30)		Gap dimension	0 mm	+ 0.5 mm

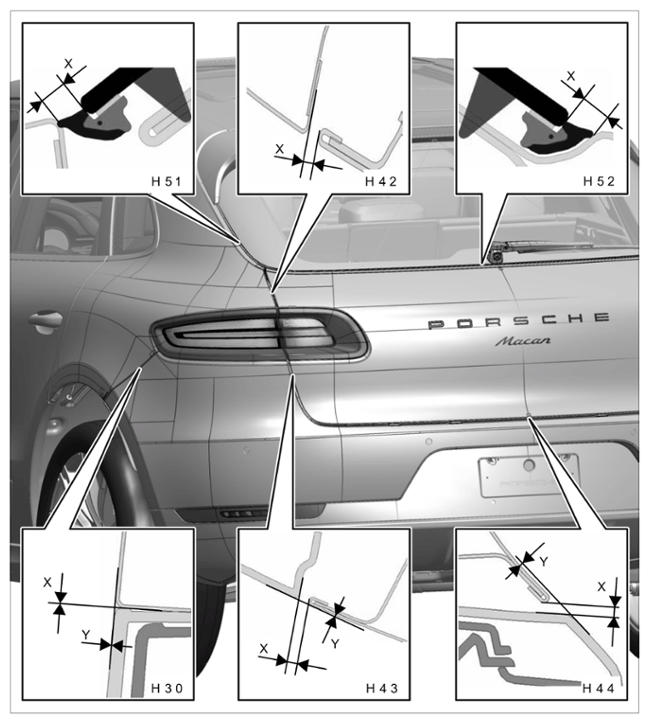

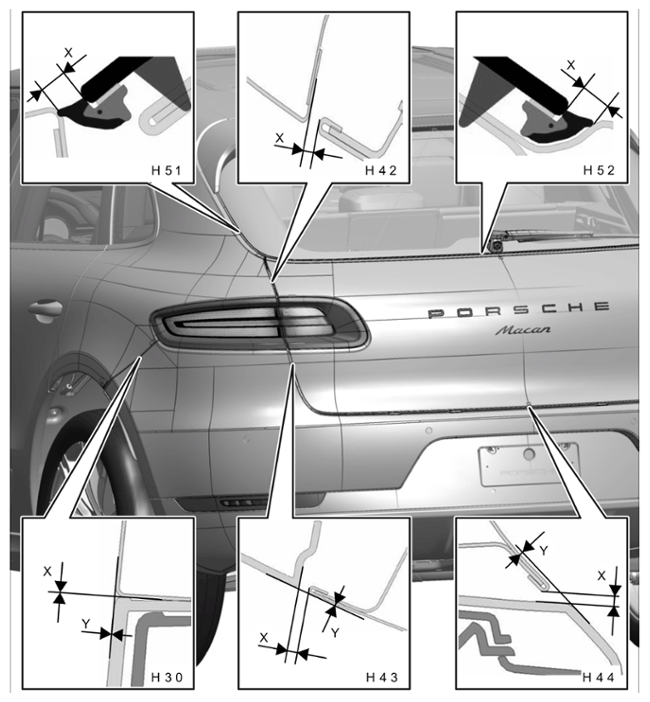

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear apron to side panel (y) (H30)		Gap dimension	0 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear lid to side panel (x) (H42)		Gap dimension	4 mm	+ 0.7 mm	- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear lid to side panel (x) (H43)		Gap dimension	4 mm	+ 0.7 mm	- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end
Rear lid to side panel (y) (H43)		Gap dimension	- 0.5 mm	+ 1.1 mm	- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimensions for rear end

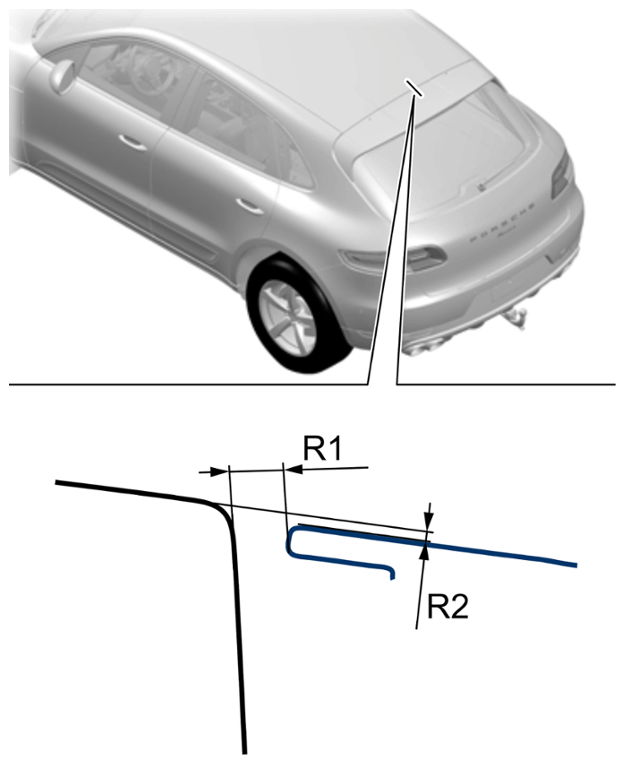

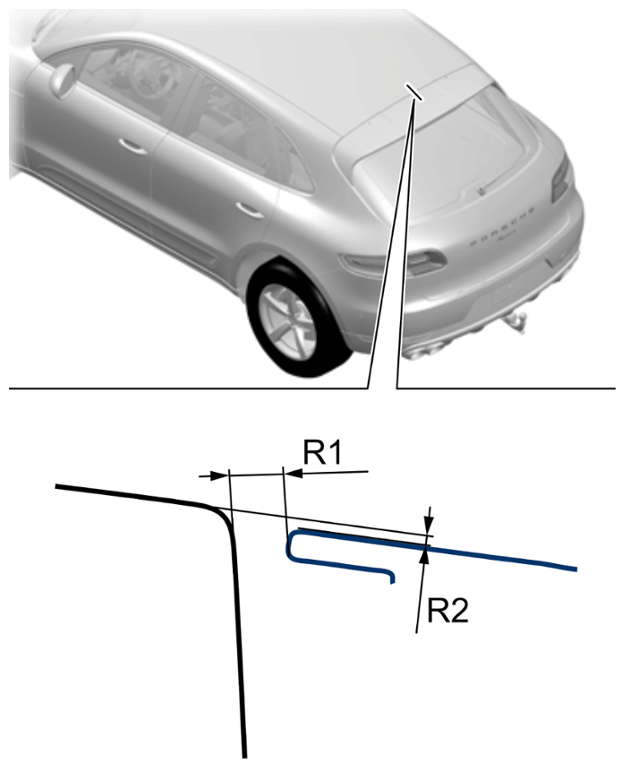

Rear lid/rear spoiler to roof	R1 (gap)	Gap dimension	6 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler
Rear lid/rear spoiler to roof	R2 (offset)	Gap dimension	- 1.5 mm	+/- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid/rear spoiler to roof

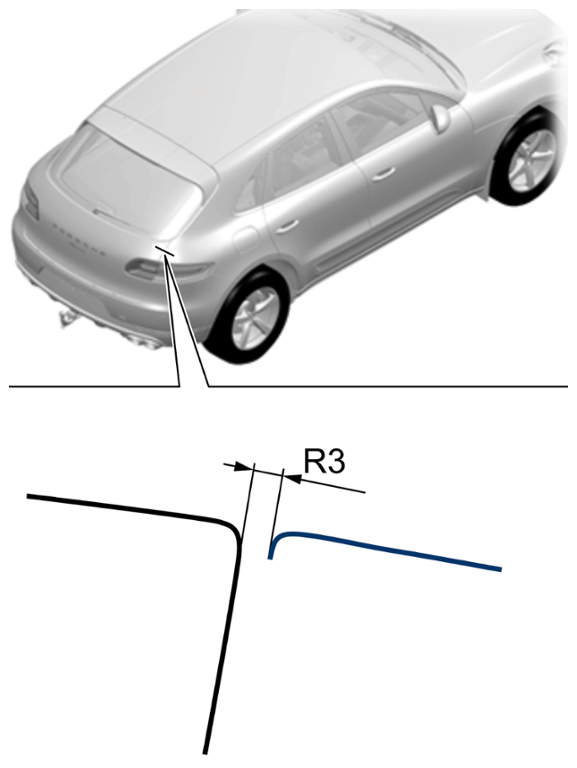

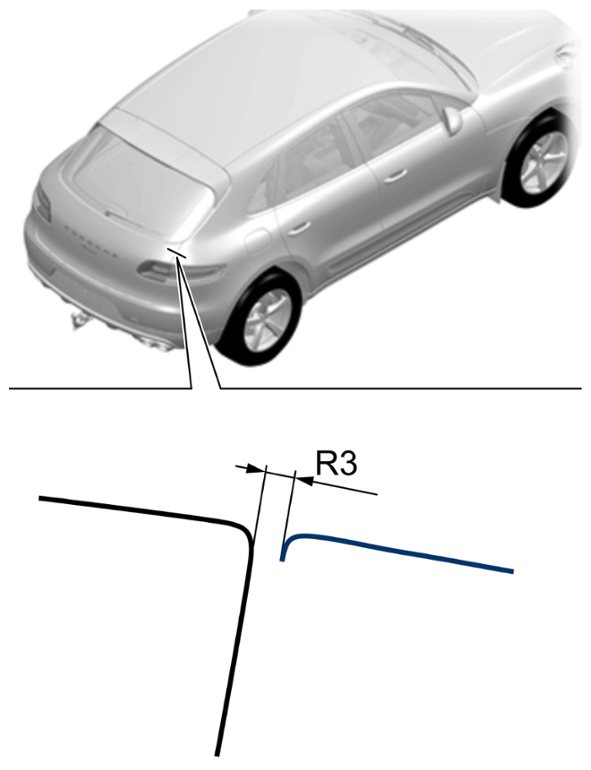

Rear lid to side panel	R3 (gap)	Gap dimension	4 mm	+ 0.7 mm	- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel
Rear lid to side panel	R3b (offset)	Gap dimension	0 mm	+/- 0.6 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to side panel

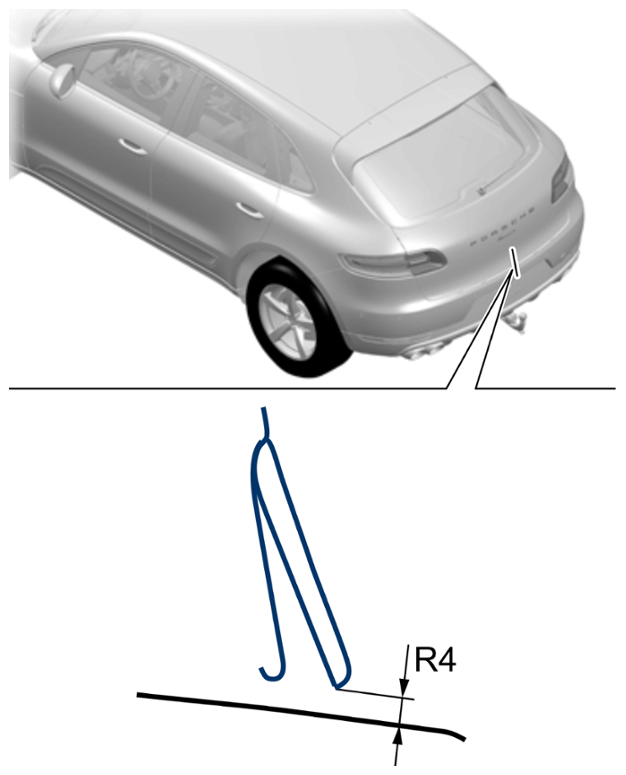

Rear lid to rear apron	R4 (gap)	Gap dimension	4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear lid to rear apron
