WM, 559037 Disassembling And Assembling Rear Lid: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image

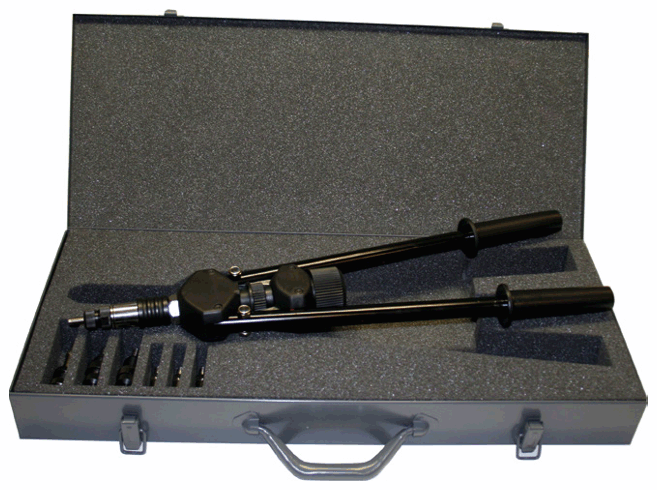

pop rivet nut pliers	Vehicle-specific workshop equipment	> V.A.G 1765C	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Screws securing bracket for gas-filled shock absorber to rear lid	Item 1	Tightening torque	10 (7.5 ftlb.) Nm

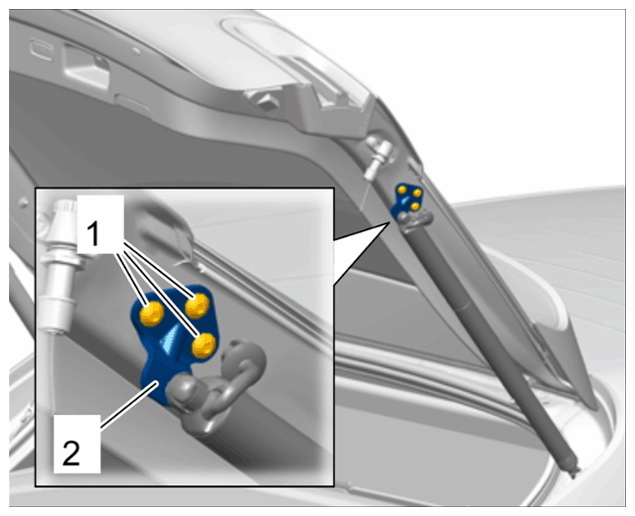

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Bracket for gas-filled shock absorber
Screws securing tailgate hinge to rear lid	Item 1	Tightening torque	10 (7.5 ftlb.) Nm

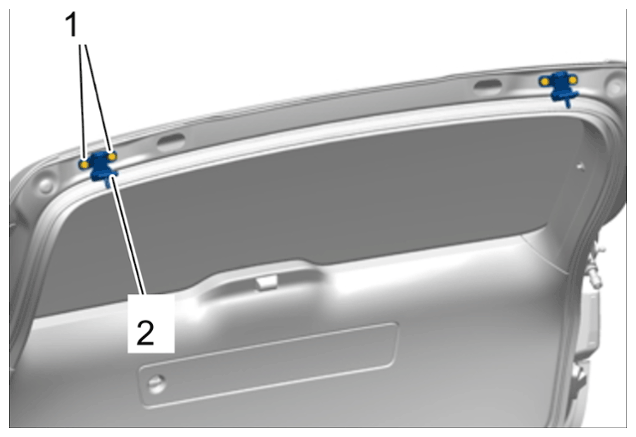

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate hinge mounting
Screws securing adjusting element to rear lid	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Adjusting element
Screws securing guide wedge to rear lid	Item 2	Tightening torque	6 (4.5 ftlb.) Nm

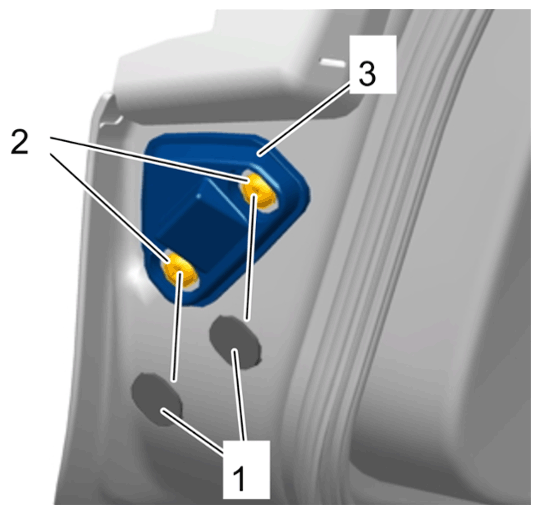

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide wedge
ParkAssist buzzer	Item 2	Tightening torque	1.5 (1 ftlb.) Nm

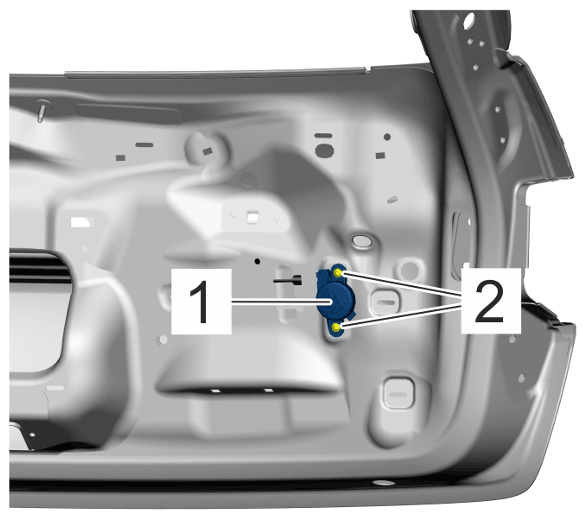

Courtesy of PORSCHE CARS NORTH AMERICA, INC. ParkAssist buzzer
