WM, 559015 Adjusting Rear Lid: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6937	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Spoiler to roof (H40)		Gap dimension	6 mm	+/- 1.1 mm

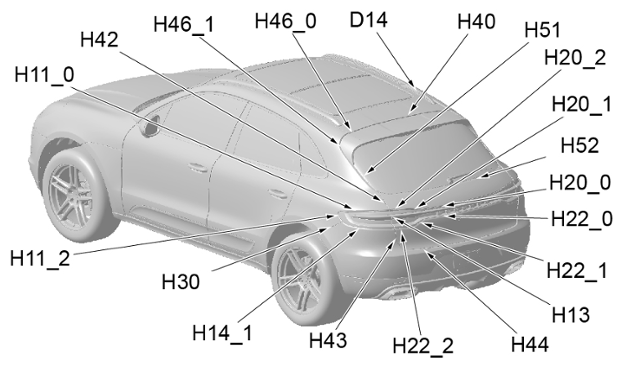

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear window to rear lid (H52)		Gap dimension	4 mm	+/- 0.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Rear lid to rear apron (H43)		Gap dimension	4 mm	+ 0.7 mm	- 0.9 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Overview of gap dimensions
Fastening screw for tailgate hinge		Tightening torque	10 (7.5 ftlb.) Nm

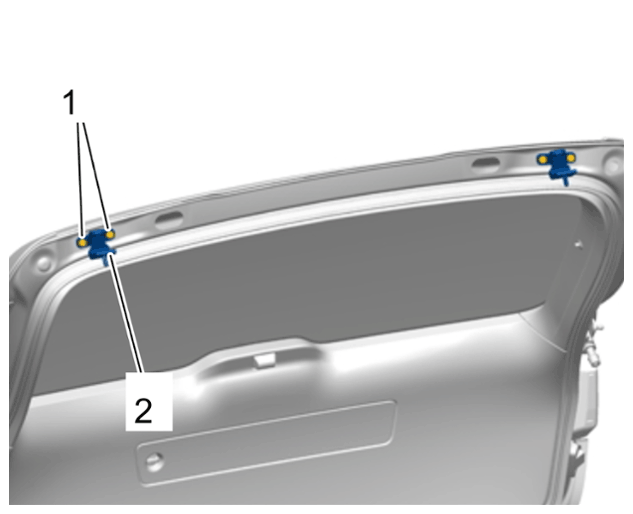

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Tailgate hinge mounting
Fastening nut securing tailgate hinge to roof frame	Item 2	Tightening torque	23 (17 ftlb.) Nm

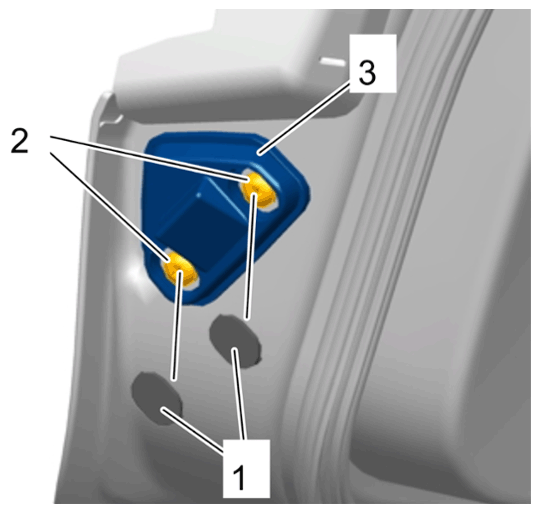

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut securing tailgate hinge to roof frame
Fastening screw for guide wedge		Tightening torque	6 (4.5 ftlb.) Nm

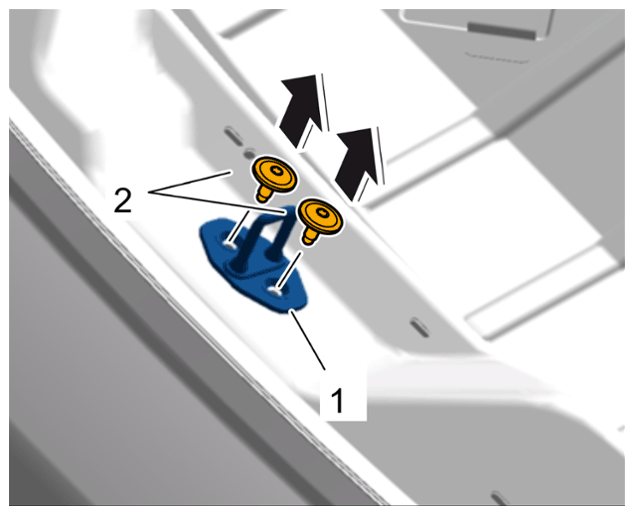

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Removing guide wedge
Screws securing lower part of rear lid lock to body	Item 2	Tightening torque	18 (13 ftlb.) Nn

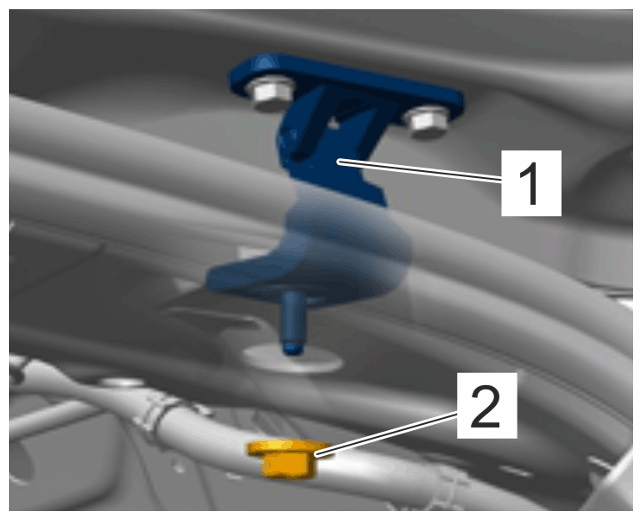

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Lower part of rear lid lock
