WM, 558719 Removing And Installing Upper Part Of Rear Lid Lock: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

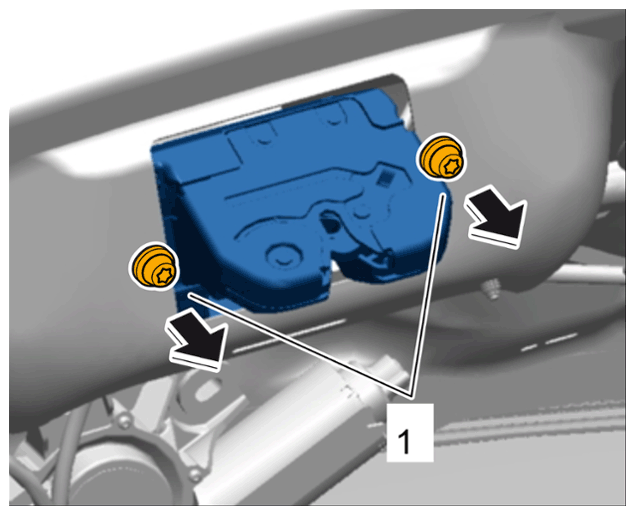

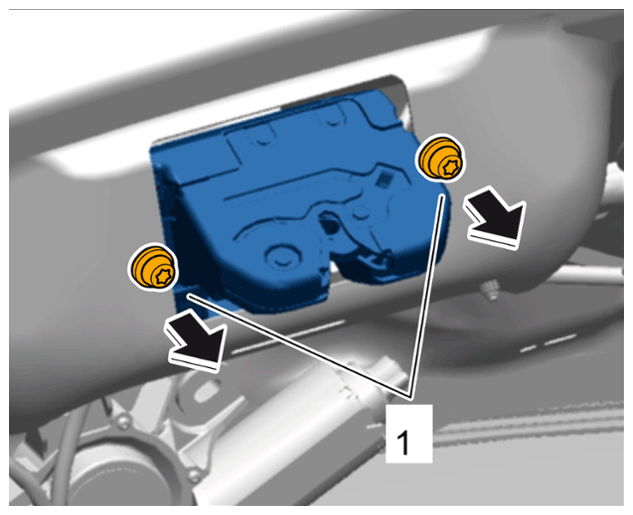

| Screw securing rear upper part of lid lock to body | Item 1; always use new screw. | Initial tightening | 8 (6 ftlb.) Nm | ||
|
Upper part of lid lock, rear |
|||||
| Screw securing rear upper part of lid lock to body | Item 1; always use new screw. | Final tightening | 45 ° | ||
|
Upper part of lid lock, rear |
