WM, 558619 Removing And Installing Lower Part Of Rear Lid Lock: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Screws securing lower part of rear lid lock to body Item 2 Tightening torque 18 (13 ftlb.) Nm

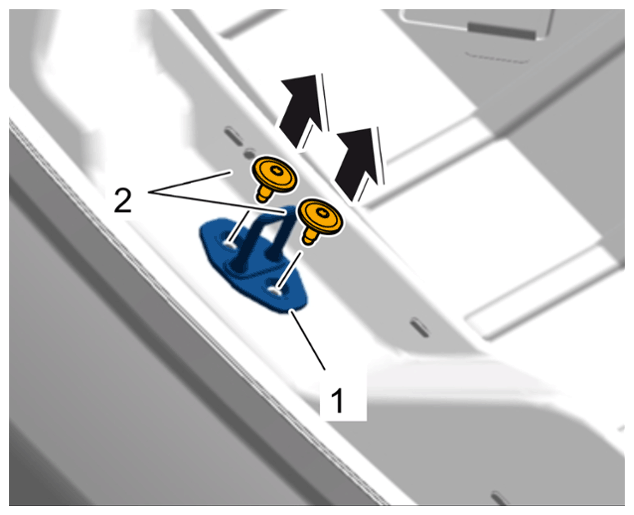

G14362730Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lower part of rear lid lock
