WM, 552519 Removing And Installing Front Lid Hinge: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Screws securing front lid hinge to body	Item 1	Tightening torque	20 (15 ftlb.) Nm

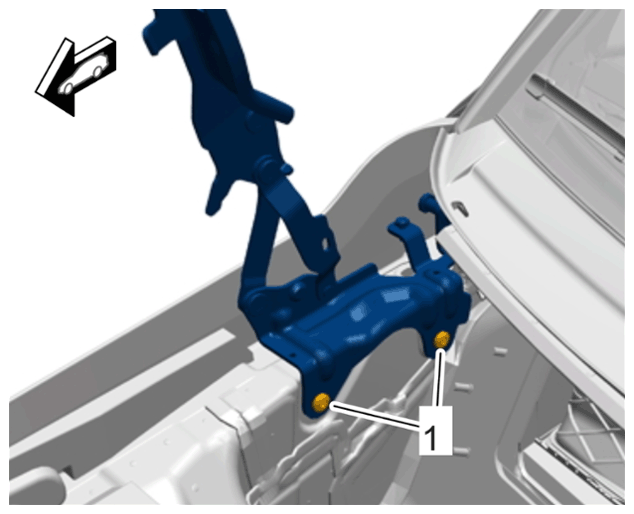

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid hinge
