WM, 552237 Disassembling And Assembling Front Lid: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing guide plate to front lid |
Item 1 |
Tightening torque |
10 (7.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

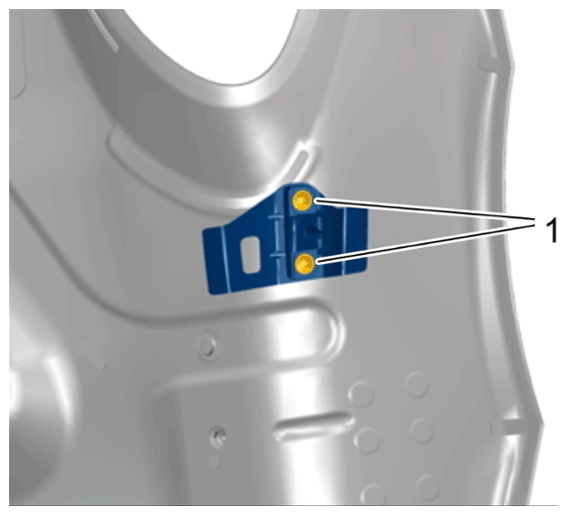

Guide plate |
|
|
|
|
|
| Nut securing rubber stop to lid front |
Item 1 |
Tightening torque |
10 (7.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

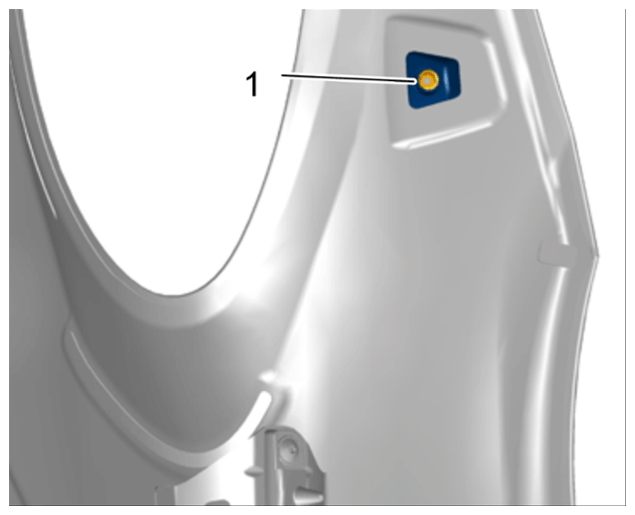

Rubber stops |
|
|
|
|
|
