WM, 552215 Adjusting Front Lid: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination	Type	Tool number	Image
Adjusting gauge	Vehicle-specific workshop equipment	> VAS 6937	Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value	Tolerance 1	Tolerance 2
Nuts securing upper part of front lid lock to front lid	Item 1	Tightening torque	8 (6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts securing upper part of front lid lock
Nuts securing front lid hinge to front lid	Item 1	Tightening torque	20 (15 ftlb.) Nm

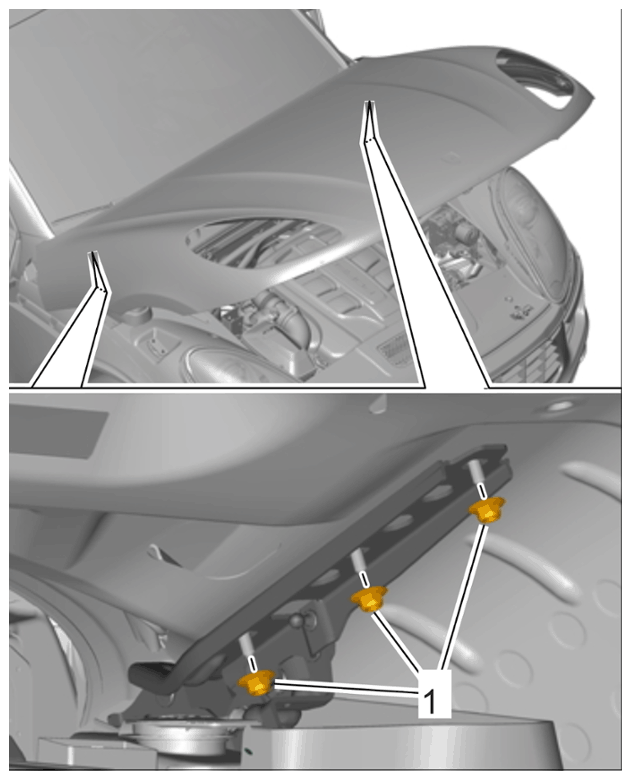

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid
Screws securing front lid hinge to body	Item 1	Tightening torque	20 (15 ftlb.) Nm

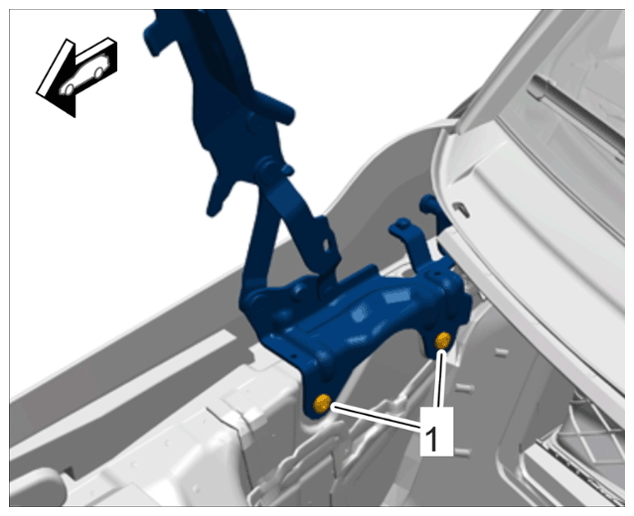

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front lid hinge
Screws securing guide plate to front lid	Item 1	Tightening torque	10 (7.5 ftlb.) Nm

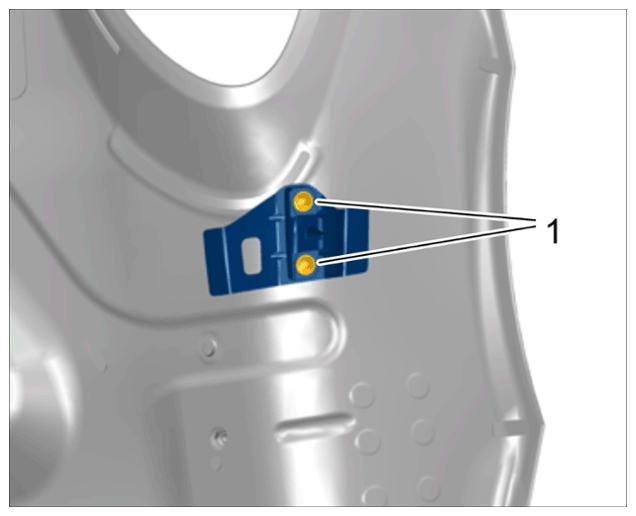

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide plate
Nut securing rubber stop to lid front	Item 1	Tightening torque	10 (7.5 ftlb.) Nm

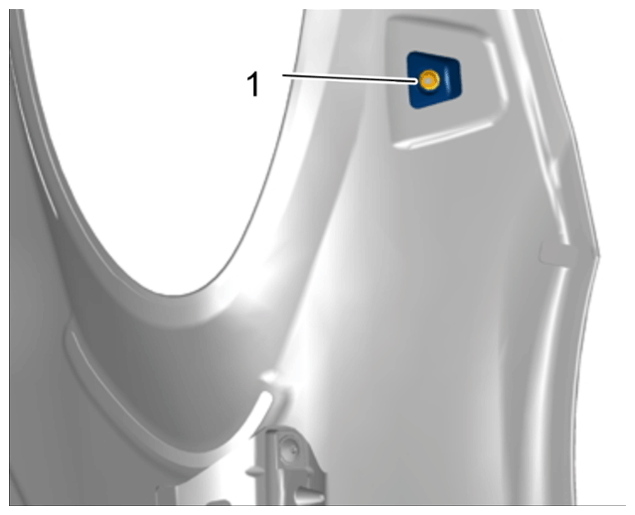

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rubber stops
