WM, 508119 Removing And Installing Cross Panel (Disassembling Plenum Panel): Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing cross panel to plenum panel |
Item 1 |
Tightening torque |
9 (6.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

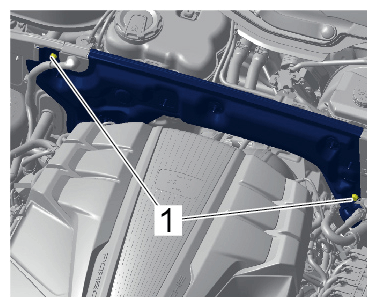

Screws on cross panel |
|
|
|
|
|
| coolant reservoir to body |
screw |
tightening torque |
8 (5.9 ftlb.) Nm |
|
|
