WM, 505619 Removing And Installing Front Wheel Housing Liner: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

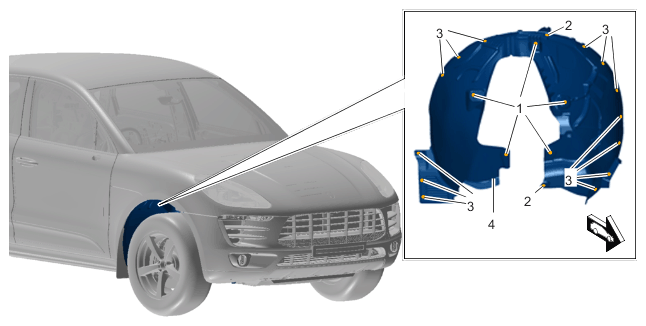

| Nut securing front wheel housing liner to body | Item 1 | Tightening torque | 2.5 (1.75 ftlb.) Nm | ||
|
Front wheel housing liner, right |
|||||
| Screw securing front wheel housing liner to body | Item 3 | Tightening torque | 2 (1.5 ftlb.) Nm | ||
|
Front wheel housing liner, right |
