WM, 505519 Removing And Installing Wing: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value
Screw securing guide wedge to wing	Item 1	Tightening torque	8 (6 ftlb.) Nm

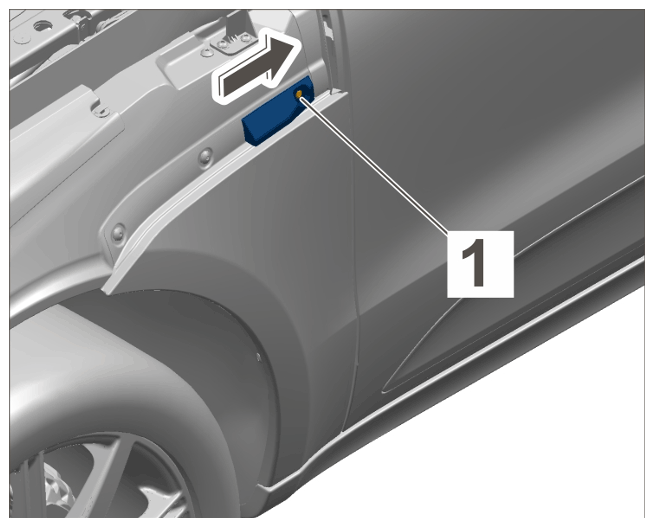

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Guide wedge
Screws securing wing to inner wing	Item 1	Tightening torque	10 (7.5 ftlb.)

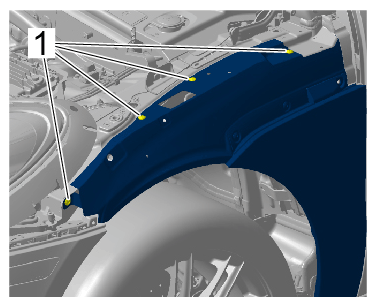

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for outer wing			IMm
Screws securing wing to body	Item 1	Tightening torque	8 (6 ftlb.) Nm

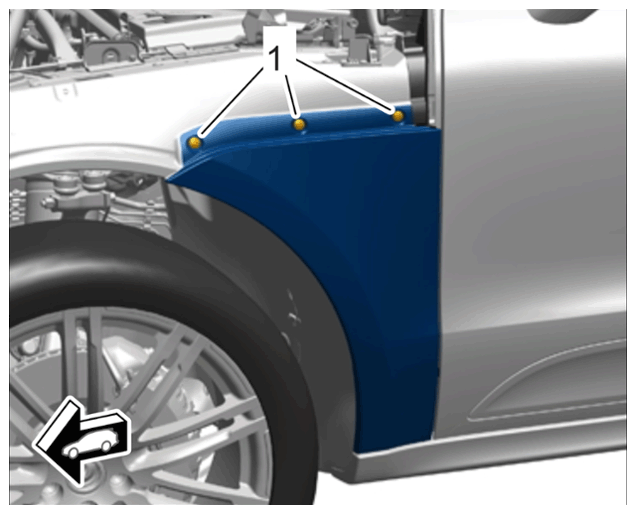

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Outer screws

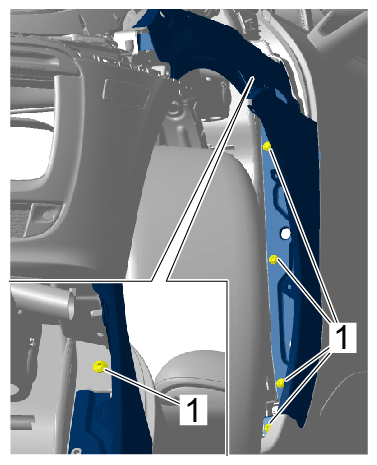

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Inner screws
