WM, 503819 Removing And Installing Lock Carrier: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value
Refrigerant line holder to dual clip for refrigerant lines	Tapping screw	Tightening torque	4.5 (3.25 ftlb.) Nm

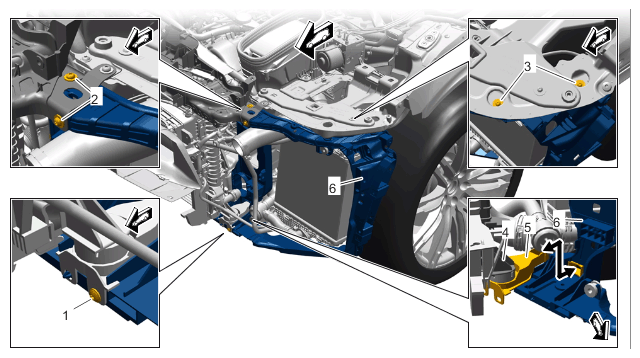

Screws securing side part of lock carrier to lock carrier	Item 2 and 3	Tightening torque	9.7 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for side part of lock carrier

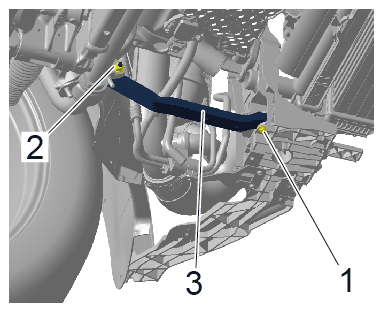

Screw securing support to lock carrier	Item 1	Tightening torque	3.6 (2.6 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support

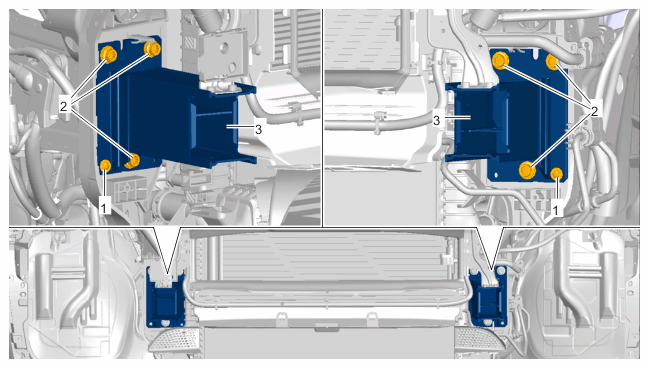

Screws securing carrier to body	Item 2	Tightening torque	55 (41 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front carrier

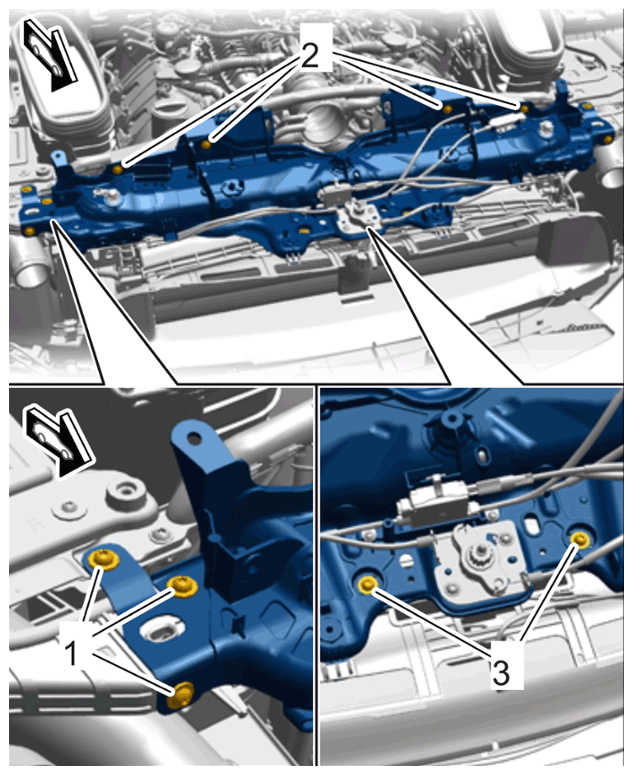

Screws securing upper part of lock carrier to transverse strut	Item 2	Tightening torque	9.7 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for upper part of lock carrier
