WM, 503819 Removing And Installing Lock Carrier Side Section At The Right: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value
Screws securing side part of lock carrier to lock carrier	Item 2 and 3	Tightening torque	9.7 (7.5 ftlb.) Nm

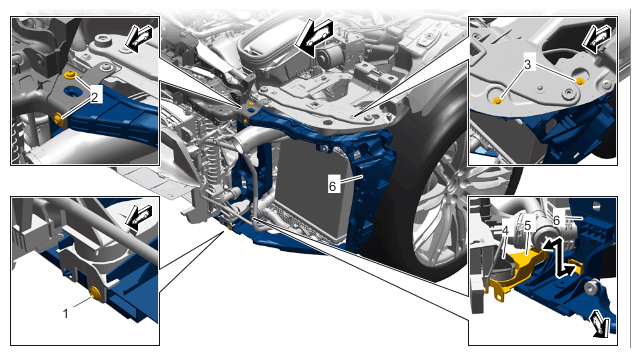

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for side part of lock carrier
Screw securing radiator assembly holder to lock carrier	Item 1	Tightening torque	9.7 (7.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for side part of lock carrier
Screw securing support to lock carrier	Item 1	Tightening torque	3.6 (2.6 ftlb.) Nm

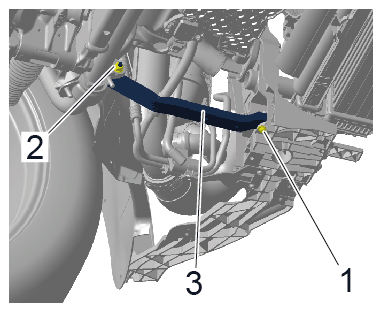

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support
Nut securing support to lock carrier	Item 2	Tightening torque	23 (17 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Support
