WM, 519419 Removing And Installing Cover For Rear Underbody: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Nuts securing rear underbody cover to body | Item 1 | Tightening torque | 2.5 (1.75 ftlb.) Nm | ||
|

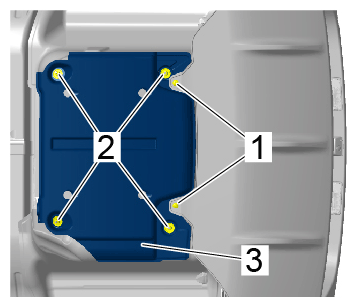

Cover for rear underbody |
|||||
| Screws securing rear panel to underbody | Item 1 | Tightening torque | 2 (1.5 ftlb.) Nm | ||
|

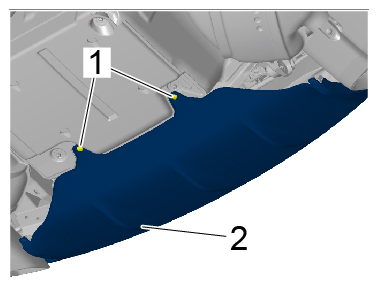

Screws on underbody |
