WM, 519219 Removing And Installing Cover For Front Underbody: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

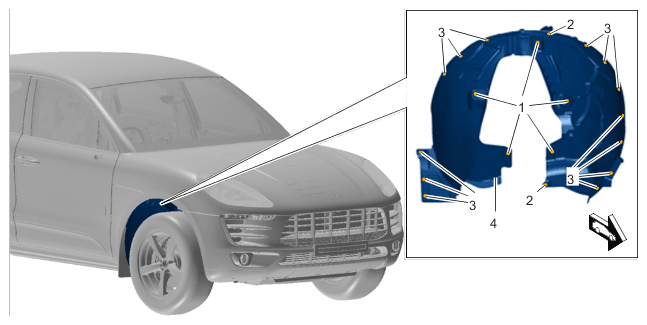

| Screw securing front wheel housing liner to body | Item 3 | Tightening torque | 2 (1.5 ftlb.) Nm | ||
|
Front wheel housing liner, right |
|||||
| Screw securing front underbody cover to body | Item 2 | Tightening torque | 2.5 (1.75 ftlb.) Nm | ||
|
Front underbody cover |
|||||

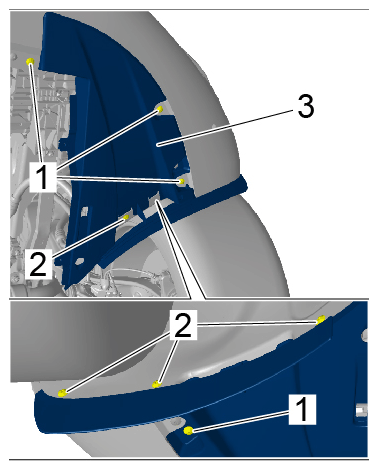

| Screw securing side cover for front underbody to body | Item 1 | Tightening torque | 2.5 (1.75 ftlb.) Nm | ||
|
Side cover for front underbody |
