WM, 514155 Replacing B-Pillar: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14361511Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14361512Courtesy of PORSCHE CARS NORTH AMERICA, INC.

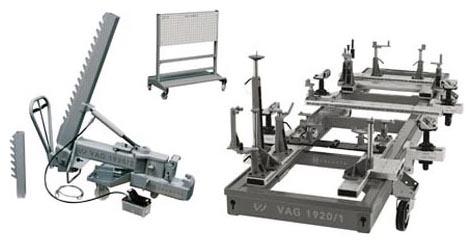

Body alignment system package General workshop equipment > V.A.G 1920
G14361513Courtesy of PORSCHE CARS NORTH AMERICA, INC.

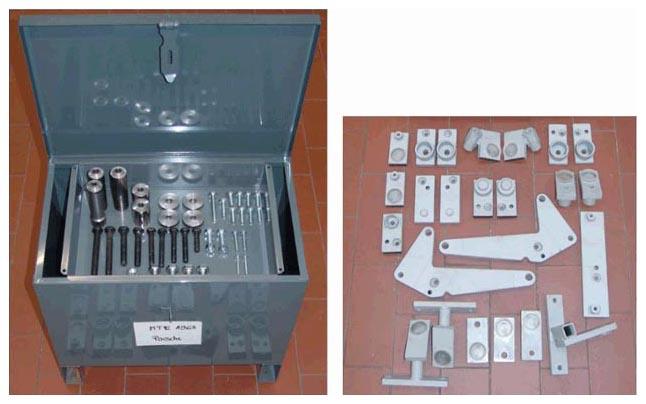

Straightening Set - Macan (95B) Vehicle-specific workshop equipment > VAS 6902
G14361514Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Straightening Bracket System MZ Plus Vehicle-specific workshop equipment > VAS 6630
G14361515Courtesy of PORSCHE CARS NORTH AMERICA, INC.

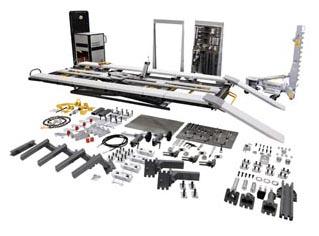

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14361516Courtesy of PORSCHE CARS NORTH AMERICA, INC.

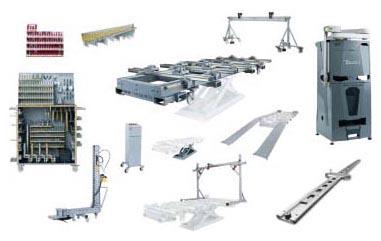

Measuring and straightening system General workshop equipment > VAS 811 017
G14361517Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14361518Courtesy of PORSCHE CARS NORTH AMERICA, INC.

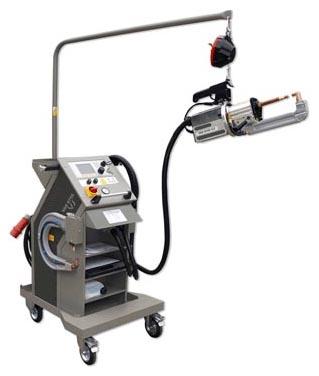

Resistance Spot Welder General workshop equipment > VAS 6755
G14361519Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14361520Courtesy of PORSCHE CARS NORTH AMERICA, INC.

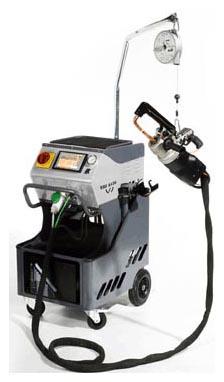

Resistance Spot Welder General workshop equipment > VAS 6530A
G14361521Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14361522Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14361523Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G14361524Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G14361525Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G14361526Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14361527Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G14361528Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14361529Courtesy of PORSCHE CARS NORTH AMERICA, INC.

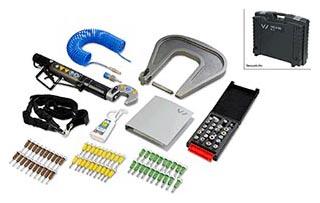

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14361530Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14361531Courtesy of PORSCHE CARS NORTH AMERICA, INC.

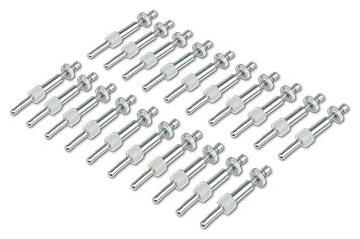

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14361532Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14361533Courtesy of PORSCHE CARS NORTH AMERICA, INC.

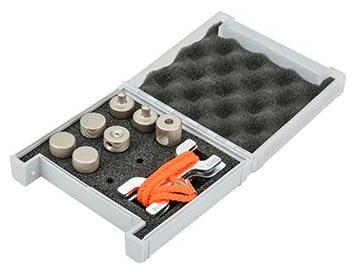

Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14361534Courtesy of PORSCHE CARS NORTH AMERICA, INC.

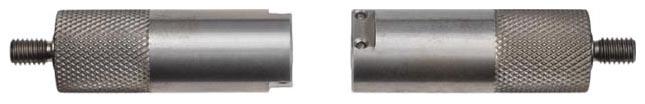

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14361535Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14361536Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14361537Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14361538Courtesy of PORSCHE CARS NORTH AMERICA, INC.

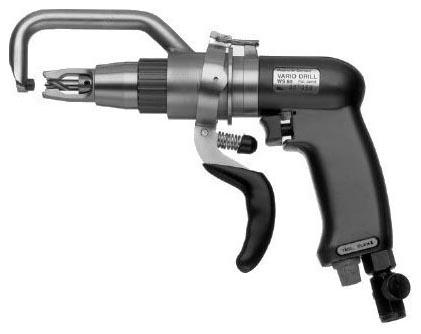

Spot-weld remover General workshop equipment > VAS 882 001
G14361539Courtesy of PORSCHE CARS NORTH AMERICA, INC.

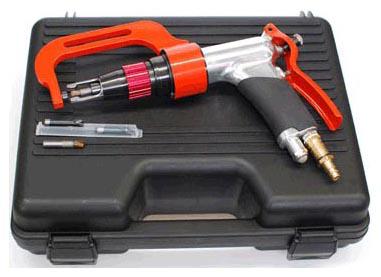

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14361540Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14361541Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14361542Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14361543Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14361544Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14361545Courtesy of PORSCHE CARS NORTH AMERICA, INC.

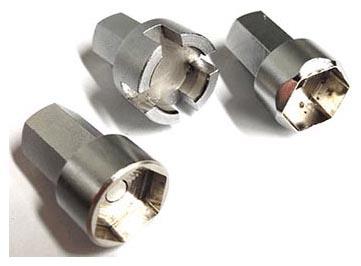

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14361546Courtesy of PORSCHE CARS NORTH AMERICA, INC.

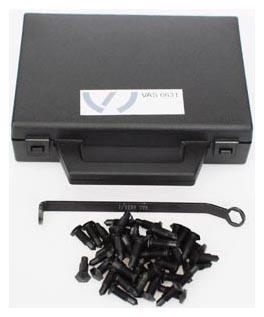

Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14361547Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14361548Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14361549Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14361550Courtesy of PORSCHE CARS NORTH AMERICA, INC.

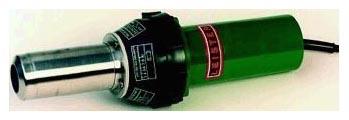

Hot-air blower General workshop equipment > V.A.G 1416
G14361551Courtesy of PORSCHE CARS NORTH AMERICA, INC.

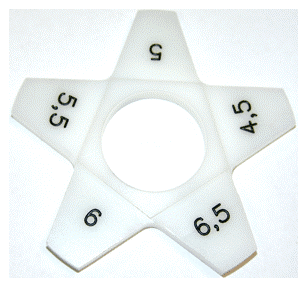

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14361552Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14361553Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14361554Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Dimensions E   Distance 23 mm
Dimensions F   Distance 75 mm
Dimensions G   Distance 120 mm
Applying adhesive   Application depth 3.0 mm
