WM, 511255 Replacing A-Pillar: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TOOLS DESCRIPTION

Tool denomination Type Tool number Image
Tool trolley General workshop equipment > V.A.G 2010/2A-1
G14361388Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Aluminium tool set General workshop equipment > V.A.G 2010/2A
G14361389Courtesy of PORSCHE CARS NORTH AMERICA, INC.

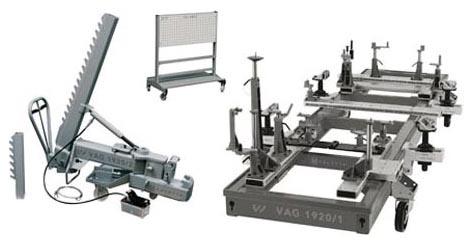

Body alignment system package General workshop equipment > V.A.G 1920
G14361390Courtesy of PORSCHE CARS NORTH AMERICA, INC.

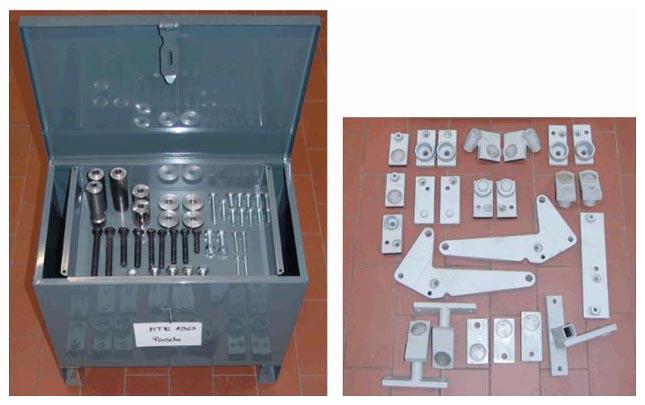

Straightening Set - Macan (95B) Vehicle-specific workshop equipment > VAS 6902
G14361391Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Straightening Bracket System MZ Plus Vehicle-specific workshop equipment > VAS 6630
G14361392Courtesy of PORSCHE CARS NORTH AMERICA, INC.

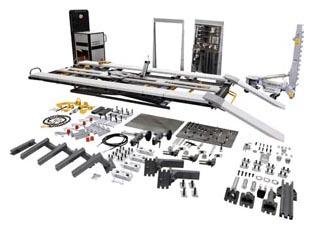

Measuring and alignment system, professional Vehicle-specific workshop equipment > VAS 6527
G14361393Courtesy of PORSCHE CARS NORTH AMERICA, INC.

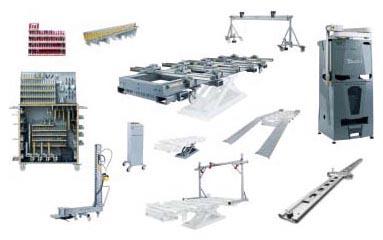

Measuring and straightening system General workshop equipment > VAS 811 017
G14361394Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Measuring system Vehicle-specific workshop equipment > VAS 811 019
G14361395Courtesy of PORSCHE CARS NORTH AMERICA, INC.

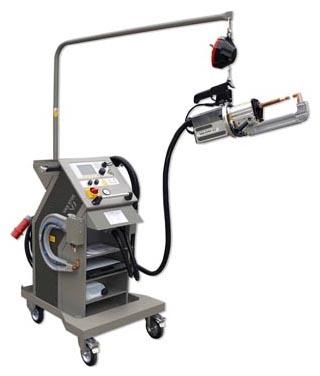

Resistance Spot Welder General workshop equipment > VAS 6755
G14361396Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 6545A
G14361397Courtesy of PORSCHE CARS NORTH AMERICA, INC.

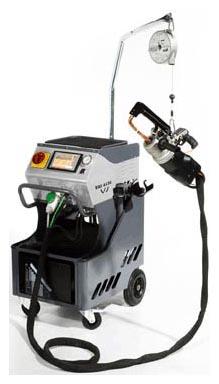

Resistance Spot Welder General workshop equipment > VAS 6530A
G14361398Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Resistance Spot Welder General workshop equipment > VAS 821 101
G14361399Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, MIG/MAG General workshop equipment > VAS 6741
G14361400Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 003
G14361401Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 005
G14361402Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, aluminium/steel/MIG/MAG General workshop equipment > VAS 821 001
G14361403Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Welding and brazing system, ALU/MIG/MAG General workshop equipment > VAS 6388A
G14361404Courtesy of PORSCHE CARS NORTH AMERICA, INC.

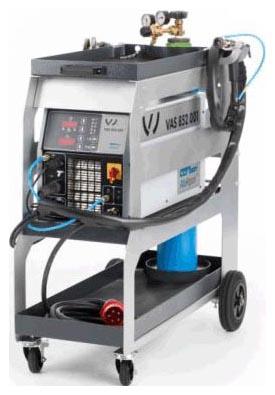

Body dent removal system, aluminium Vehicle-specific workshop equipment > VAS 852 001
G14361405Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Mobile extraction system, steel General workshop equipment > VAS 6571/1
G14361406Courtesy of PORSCHE CARS NORTH AMERICA, INC.

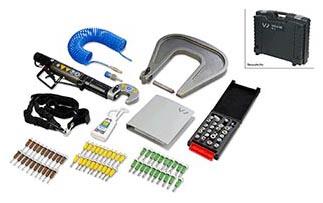

Compact Booster Vehicle-specific workshop equipment > VAS 6790
G14361407Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplementary Riveting Set Vehicle-specific workshop equipment > VAS 6790/2
G14361408Courtesy of PORSCHE CARS NORTH AMERICA, INC.

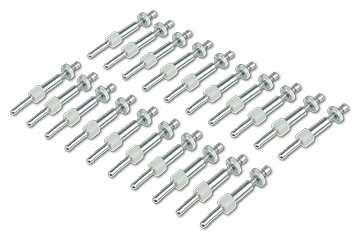

Threaded needles Vehicle-specific workshop equipment > VAS 6790/64
G14361409Courtesy of PORSCHE CARS NORTH AMERICA, INC.

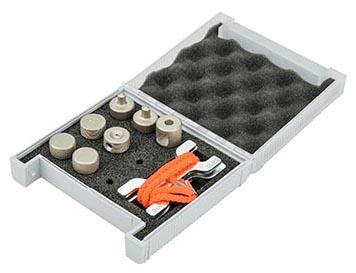

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/65
G14361410Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Supplement set for rivet nuts and bolts Vehicle-specific workshop equipment > VAS 6790/67
G14361411Courtesy of PORSCHE CARS NORTH AMERICA, INC.

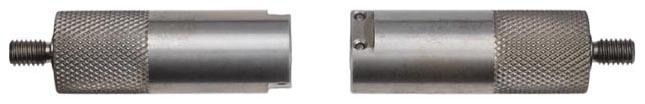

Rivet bar extension Vehicle-specific workshop equipment > VAS 6790/68
G14361412Courtesy of PORSCHE CARS NORTH AMERICA, INC.

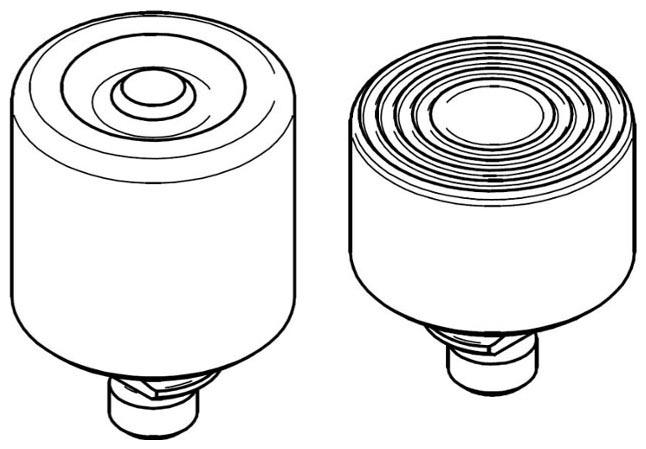

Rivet inserts Vehicle-specific workshop equipment > VAS 6790/70
G14361413Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/2
G14361414Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Extension Vehicle-specific workshop equipment > VAS 6792/28
G14361415Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Spot-weld remover General workshop equipment > VAS 882 001
G14361416Courtesy of PORSCHE CARS NORTH AMERICA, INC.

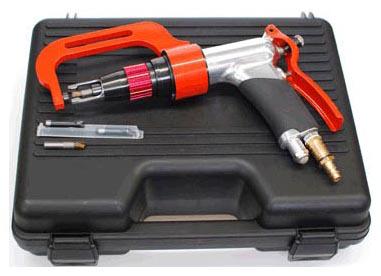

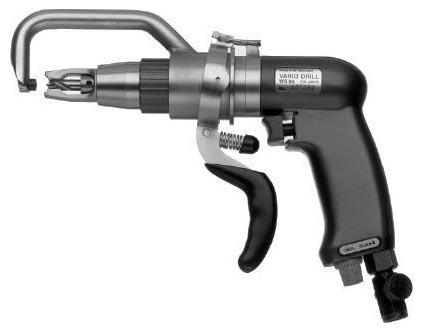

Pneumatic Spot-Weld Remover General workshop equipment > VAS 6322A
G14361417Courtesy of PORSCHE CARS NORTH AMERICA, INC.

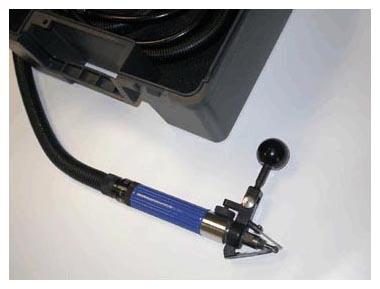

Laser-weld seam grinder Vehicle-specific workshop equipment > VAS 6319
G14361418Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6780
G14361419Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Body saw General workshop equipment > VAS 6598A
G14361420Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Electric cutter Vehicle-specific workshop equipment > V.A.G 1561B
G14361421Courtesy of PORSCHE CARS NORTH AMERICA, INC.
100° countersink Vehicle-specific workshop equipment > VAS 6957
G14361422Courtesy of PORSCHE CARS NORTH AMERICA, INC.

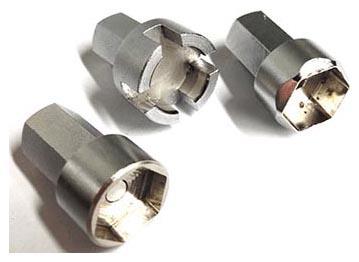

FDS sockets Vehicle-specific workshop equipment > VAS 852 007A
G14361423Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Repair Kit for FD Screws Vehicle-specific workshop equipment > VAS 6631
G14361424Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pneumatic Cartridge Gun for Seam Sealing General workshop equipment > V.A.G 1761/1
G14361425Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Compressed-air gun General workshop equipment > VAS 6648
G14361426Courtesy of PORSCHE CARS NORTH AMERICA, INC.

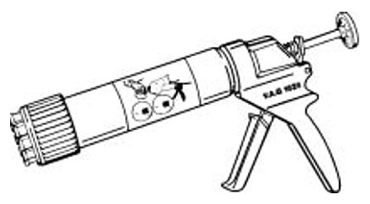

Hand cartridge gun Vehicle-specific workshop equipment > V.A.G 1628
G14361427Courtesy of PORSCHE CARS NORTH AMERICA, INC.

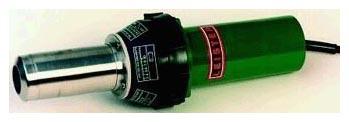

Hot-air blower General workshop equipment > V.A.G 1416
G14361428Courtesy of PORSCHE CARS NORTH AMERICA, INC.

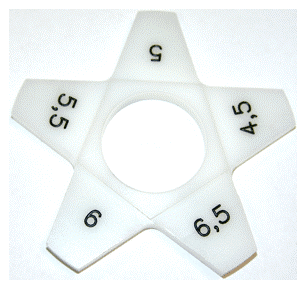

Adjusting gauge Vehicle-specific workshop equipment > VAS 6936
G14361429Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6937
G14361430Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Adjusting gauge Vehicle-specific workshop equipment > VAS 6938
G14361431Courtesy of PORSCHE CARS NORTH AMERICA, INC.

TECHNICAL VALUES SPECIFICATION

Location Description Type Basic value Tolerance 1 Tolerance 2
Dimension X   Distance 70 mm
Dimension Y   Distance 65 mm
Wing rail   Dimension x 90 mm
Drill bit   Diameter 8.0 mm
Applying adhesive   Application depth 3.0 mm
