WM, 635719 Removing And Installing Rear Retaining Strip: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

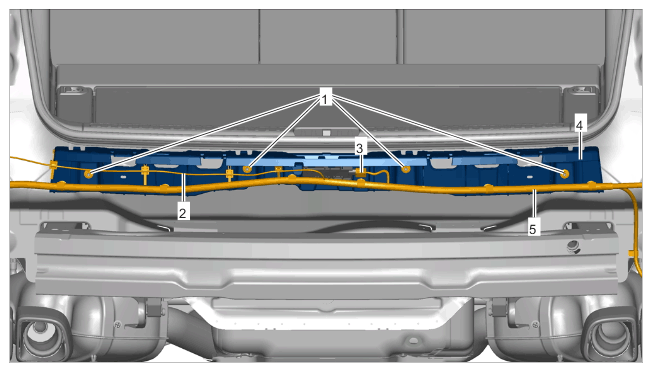

TECHNICAL VALUES SPECIFICATION
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Screw securing rear retaining strip (rear section) to rear retaining strip (front section) | Item 3 | Tightening torque | 2 (1.5 ftlb.) Nm | ||
| Loosening rear retaining strip |
|||||
| Nuts securing rear retaining strip (front section) to body | Item 1 | Tightening torque | 9.7 (7.5 ftlb.) Nm | ||
| Rear retaining strip (front section) |
|||||
| Nuts securing rear retaining strip (central section) to body | Item 1 | Tightening torque | 9.7 (7.5 ftlb.) Nm | ||
|
Rear retaining strip (central section) |
