WM, 635519 Removing And Installing Rear Apron: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value
Screws securing rear apron to rear retaining strip	Item 3	Tightening torque	2 (1.5 ftlb.) Nm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing rear apron, top
Screw securing guide pins for tailgate to rear apron	Item 2	Tightening torque	10 (7.5 ftlb.) Nm

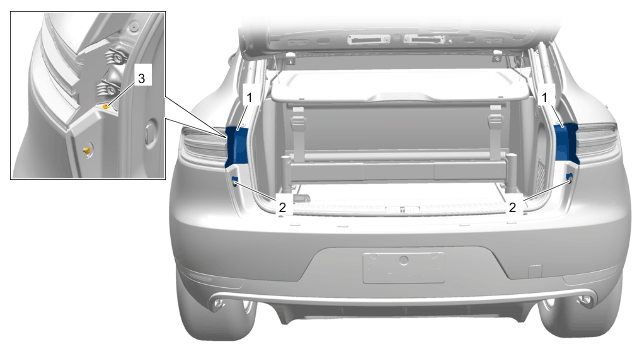

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing rear apron, top
Screws securing rear apron to wing	Item 2	Tightening torque	2 (1.5 ftlb.) Nm

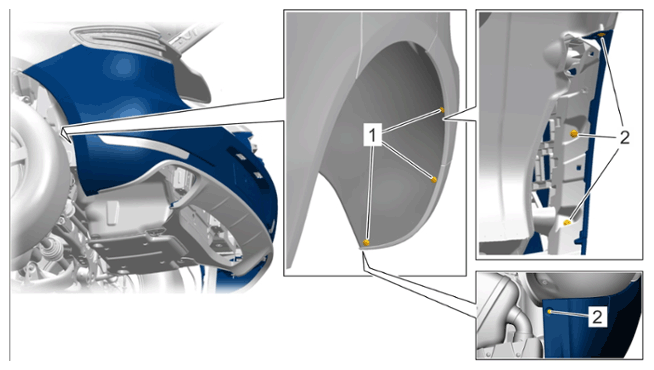

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Securing rear apron at wheel housing
Screws securing rear panel to underbody	Item 1	Tightening torque	2 (1.5 ftlb.) Nm

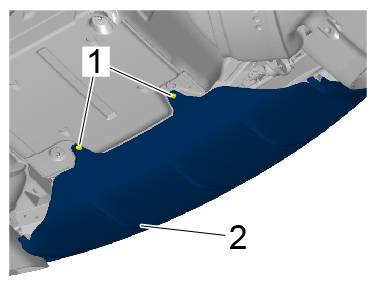

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws on underbody
Screw securing wheel housing liner to body	Item 2	Tightening torque	2 (1.5 ftlb.) Nm

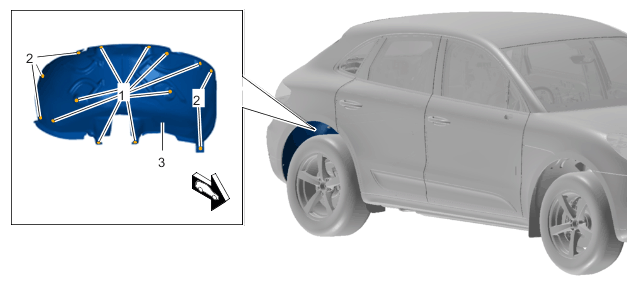

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear wheel housing liner
