WM, 633319 Removing And Installing Front Carrier: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |

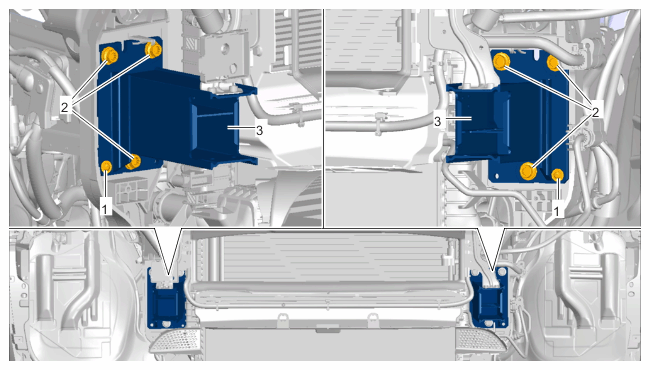

| Screw securing carrier to body |
Item 1 |
Tightening torque |
4.5 (3.25 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front carrier |
|
|
|
|
|
| Screws securing carrier to body |
Item 2 |
Tightening torque |
55 (41 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Front carrier |
|
|
|
|
|
