WM, 631719 Removing And Installing Front Retaining Strip: Notes
WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.
TECHNICAL VALUES SPECIFICATION
| Location |
Description |
Type |
Basic value |
Tolerance 1 |
Tolerance 2 |
| Screws securing front retaining strip to lock carrier |
Item 2 and 3 |
Tightening torque |
9.7 (7.5 ftlb.) Nm |
|
|
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.

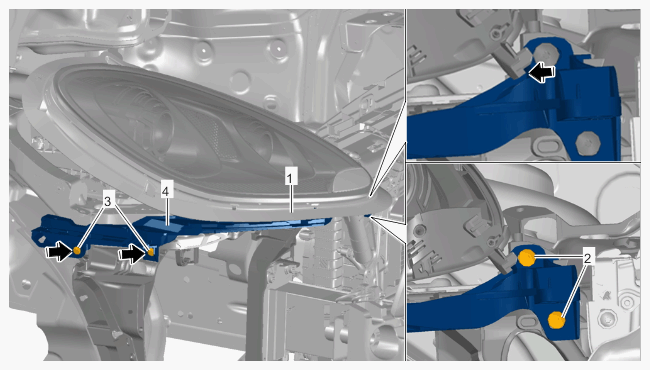

Front retaining strip |
|
|
|
|
|
