WM, 631519 Removing And Installing Front Apron: Notes

WARNING: This page is about a different car, the 2021 Porsche Macan, 2020 Porsche Macan, and 2019 Porsche Macan. However, it is still accessible from the selected car via links, so may be relevant.

TECHNICAL VALUES SPECIFICATION

Location	Description	Type	Basic value
Screw securing front apron to inner lock carrier	Item 2	Tightening torque	8 (6 ftlb.) Nm

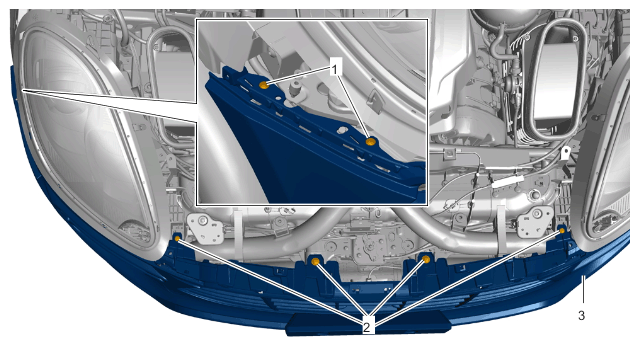

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front apron at the top and sides
Screw securing front apron to front retaining strip	Item 1	Tightening torque	2 (1.5 ftlb.) Nm

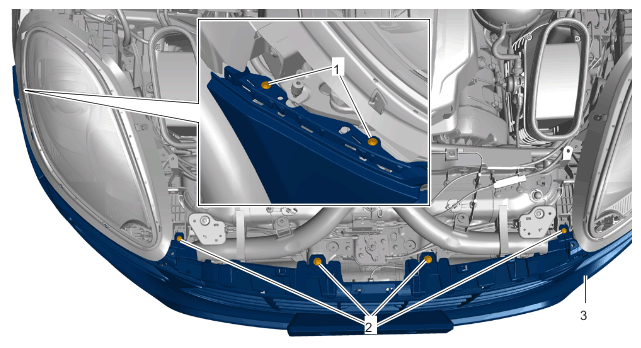

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front apron at the top and sides
Screw securing front apron to lower lock carrier	Item 1	Tightening torque	2 (1.5 ftlb.) Nm

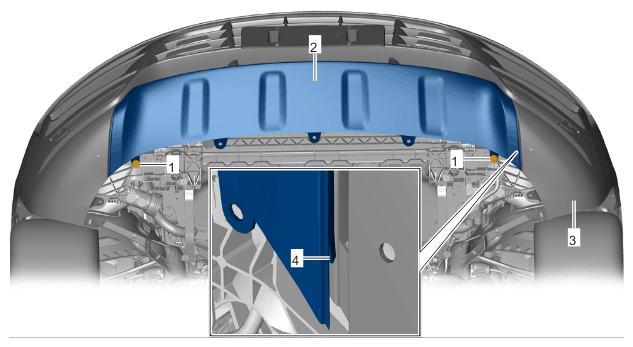

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Front spoiler
Screw securing front apron to lock carrier at the side	Item 3	Tightening torque	2 (1.5 ftlb.) Nm

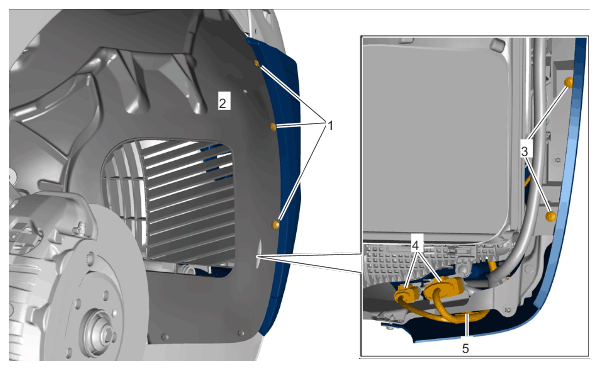

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for front apron in wheel housing
