Removing Control Unit For Distance Measuring Sensor

NOTIFICATION

Voltage peaks

• Risk of damage to electrical load or to the control unit
  1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
  2. → Switch off electrical loads before disconnecting or removing them.

1. Switch off ignition and keep transmitter key outside of the transmission range (at least 2 m).

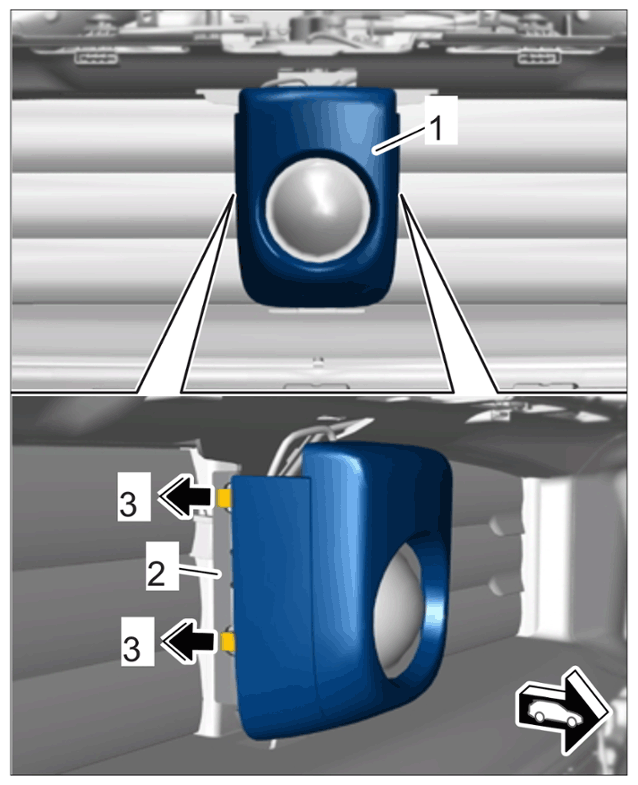

2. Disengage trim cover -1-  at the left and right of the holder -2-  for the distance measuring sensor control unit -arrows -3-  and remove it.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Trim cover

   Information

   Always comply with the regulations for handling ESD-sensitive components!

   • Always wear approved work clothes and shoes when carrying out assembly work.
   • Do not remove new parts from ESD (electrostatic discharge) protective packaging until shortly before installation.
   • Do not touch electric pins and plug contacts.

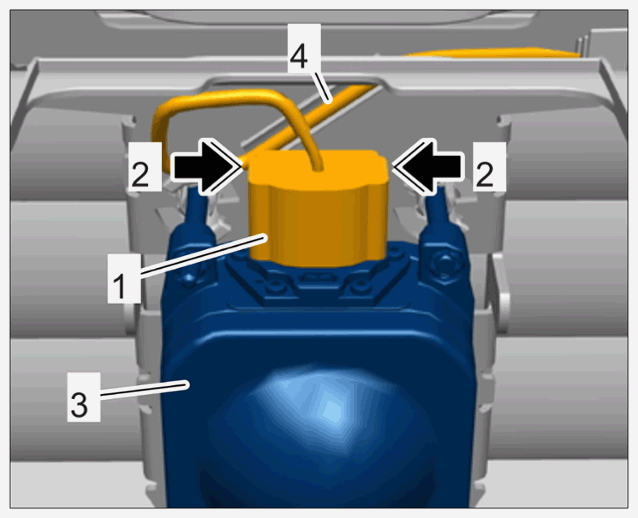

3. Release electric plug connection -1-  (-arrows 2-  ) and disconnect it from the distance measuring sensor control unit -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

4. Unclip bracket for electric line -4-  at the holder for the distance measuring sensor control unit -3-  and set electric line -4-  aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric line

5. Loosen air guide -1-  close to the distance measuring sensor control unit -2-  at the lock carrier.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air guide

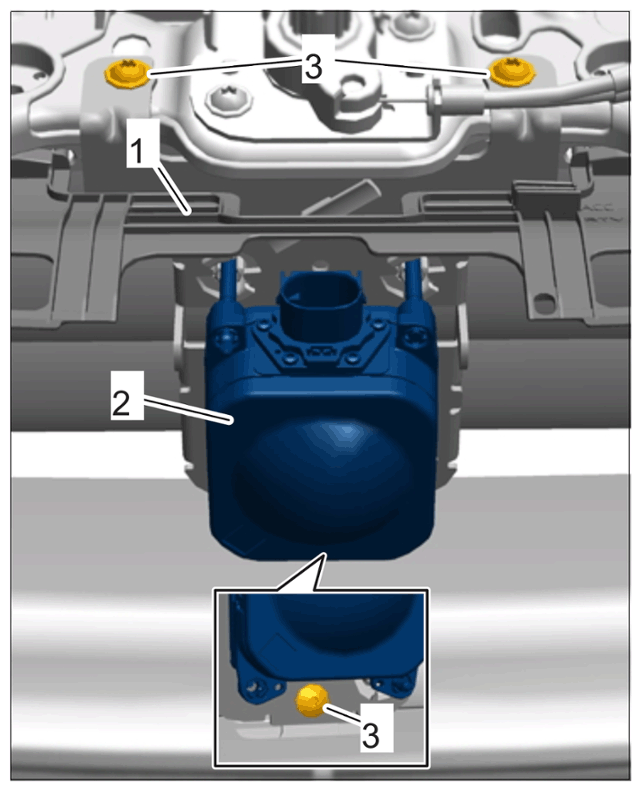

6. Unscrew fastening screws -3-  and remove distance measuring sensor -2-  control unit and holder.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Distance measuring sensor control unit
