Installing Battery Sensor

Information

Switch off all loads and keep transmitter key outside of the transmission range (at least 2 metres/6 feet).

• Do not disconnect the battery while the engine is running.
• Disconnect and re-connect battery with extreme caution.

Information

After replacing the battery sensor, the battery sensor will be detected automatically by the gateway control unit.

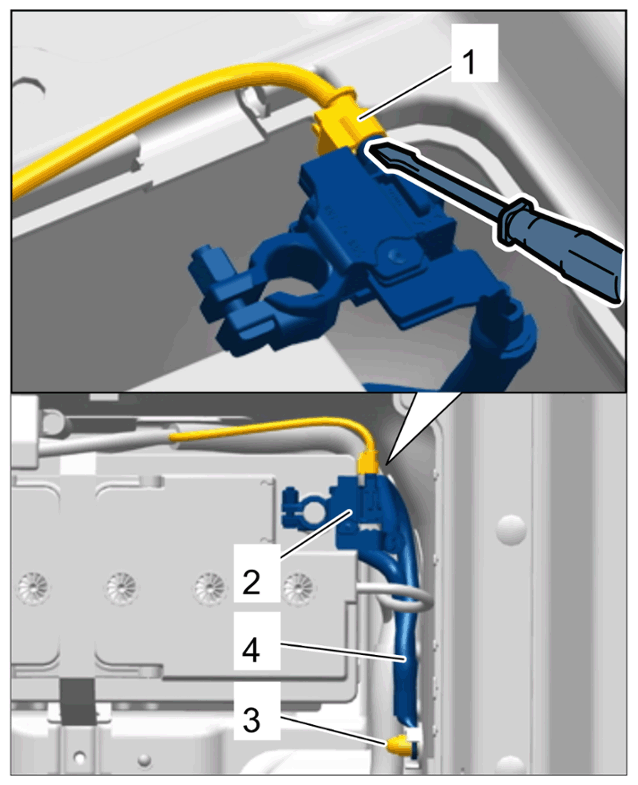

1. Installation is performed in reverse order. Pay particular attention to the following: Tighten fastening nut -3-  to > Tightening - torque 18 Nm (13 ftlb.)  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Battery sensor
