Installation Position

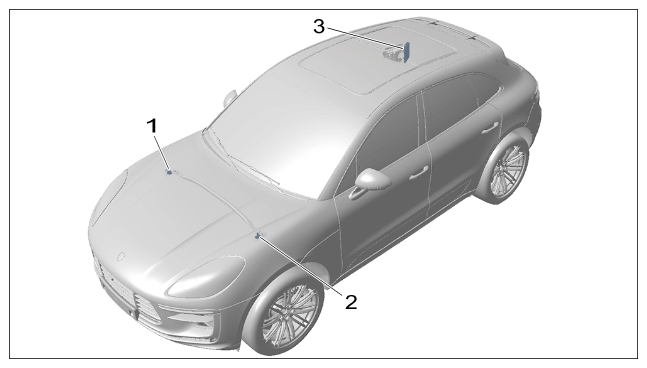

G15154006Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installation position

1 Sensor for body on front axle, right
2 Sensor for body on front axle, left
3 Sensor for body on rear axle (integrated in control unit for chassis control (PASM))
