Removing Rear Level Sensor

Information

Either two or four level sensors are installed on the vehicle, depending on equipment variant:

• Steel springs without PASM: only left side of the vehicle (front and rear axle)
• Air springs and steel springs with PASM: left and right side of the vehicle (front and rear axle)

1. Remove rear level sensor -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

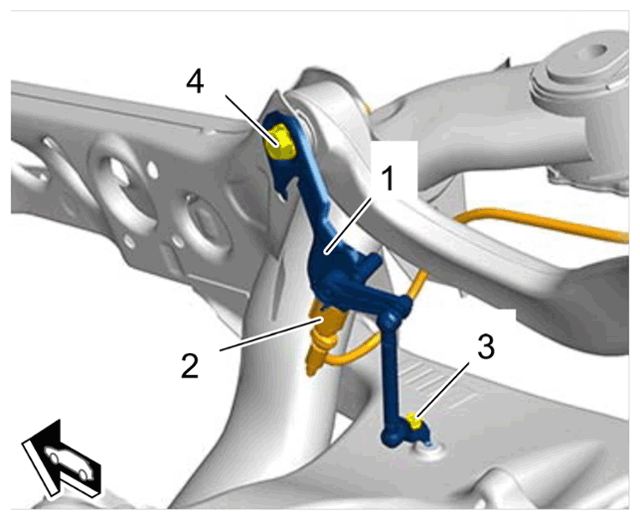

   Level sensor

   1. 1.1 Release and disconnect electric plug connection -2-  .
   2. 1.2 Unscrew screw on trailing arm -3-  .
   3. 1.3 Unscrew screw on rear axle housing -4-  and counter at the nut.
   4. 1.4 Remove rear level sensor -1-  .
