Installing Rear Level Sensor

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

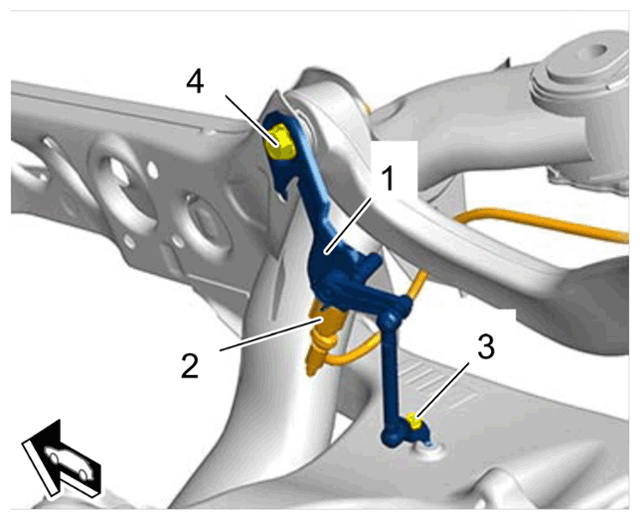

Level sensor

1. 1.1 Position rear level sensor -1-  .
2. 1.2 Screw in and tighten new  screw on the rear axle housing -4-  with a new  nut.

   > Initial tightening 70 Nm

   > Final tightening + 180°

3. 1.3 Screw in and tighten screw on the trailing arm -3-  .

   > Tightening torque 9 Nm

4. 1.4 Connect and lock electric plug connection -2-  .
