Technical Values

Location Description Type Basic value Tolerance 1 Tolerance 2
Fastening nuts securing control unit to body Item 2 Tightening torque 4.3 Nm (3.2 ftlb.)

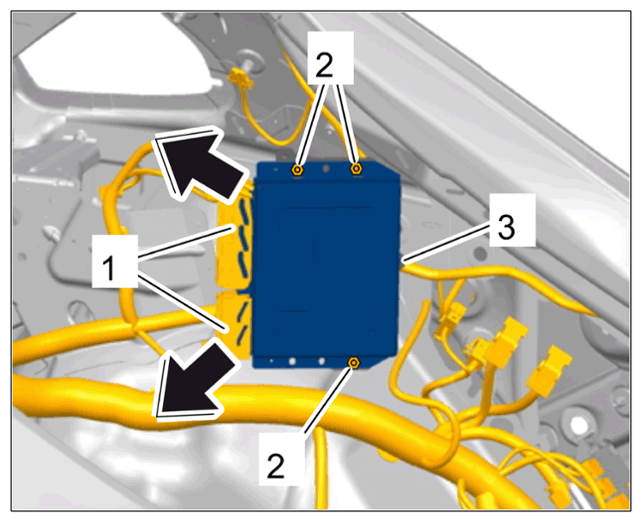

G15153970Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for PASM control unit
