Removing Valve Lifters

WARNING: This page is about a different variant/trim than selected.
  1. If you intend to re-use valve lifters, safety clips and valve levers:

    Mark allocation of the components using a coloured marker.

    Information

    If you intend to re-use hydraulic tappets and valve levers, check that the components are not damaged.

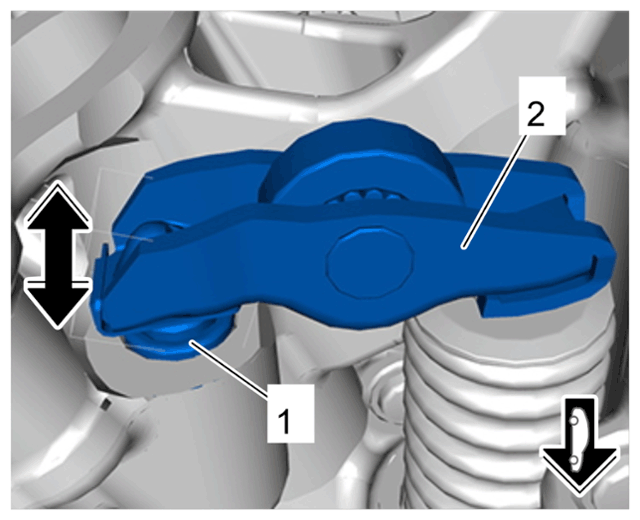

  2. Remove valve lifter -1-  and valve lever -2-  .
    1. 2.1  Take valve lifter -1-  with valve lever -2-  out of the cylinder head together.
    2. 2.2  Check component allocation and check that all components are fitted.
    G15150447Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Valve lifter with valve lever in cylinder head

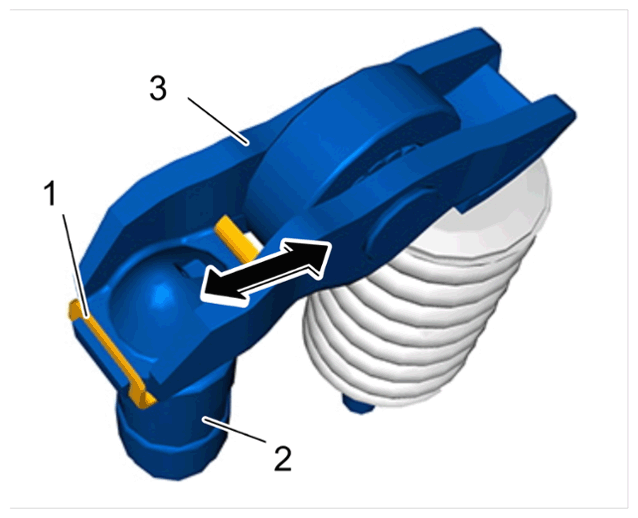

  3. Remove valve lifter -2-  from valve lever -3-  .
    1. 3.1  Open safety clip -1-  carefully.
    2. 3.2  Remove safety clip -1-  and valve lifter -2-  .
    G15150448Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Valve lifter
