Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove upper chain housing cover.
    • 153319 Removing and installing upper chain housing cover (V6 turbo)
  2. Remove pulse sender.
    • 287319 Removing and installing pulse sender (V6 turbo)
  3. Remove drive plate.
    • 136319 Removing and installing drive plate


  1. Remove the engine.
    • 100119 Removing and installing engine
  2. For engine with particle filter

    Remove particle filter.

    • 267419 Removing and installing particle filter
  3. For engine without particle filter

    Remove catalytic converter.

    • 267319 Removing and installing catalytic converter
  4. Only for removing upper chain housing cover on right cylinder bank:

    Remove additional coolant pump holder -1-  .

    1. 4.1  Unscrew screws for additional coolant pump -2-  at the holder -1-  .
    2. 4.2  Unscrew double screw for additional coolant pump holder -3-  .
    3. 4.3  Remove additional coolant pump holder -1-  .

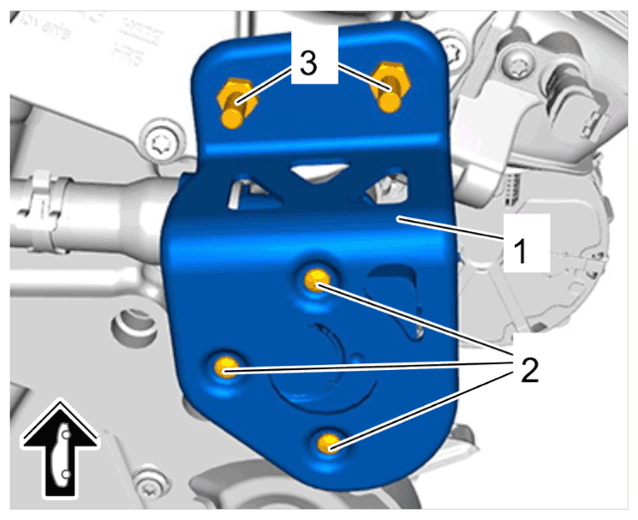

    G15150374Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Additional coolant pump (right cylinder bank)
