Subsequent Work

1. 2.1  Insert stoppers on camshafts -1-  .
2. 2.2  Fit and tighten screws for stoppers -1-  .
   • Tightening torque 9 Nm (6.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

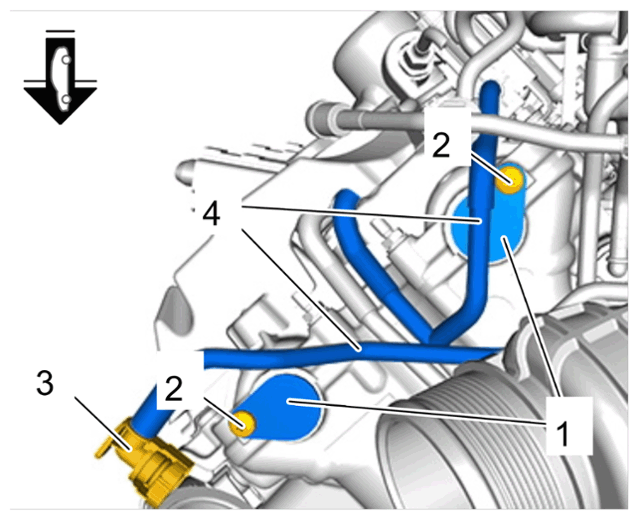

Stoppers on camshafts.

1. 3.1  Replace O-ring on screw plug for crankshaft.
2. 3.2  Position holder for vacuum reservoir -3-  .
3. 3.3  Screw in new screw plug for crankshaft -1-  into bore -2-  and tighten it.

• Tightening torque 40 Nm (29.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

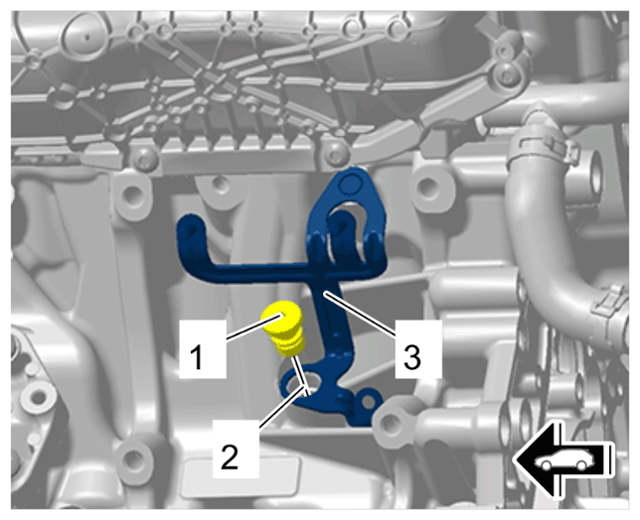

Screw plug for crankshaft

• 100113 Securing engine on assembly support (V6 Turbo)

1. 5.1  Position vacuum reservoir -1-  .
2. 5.2  Screw on and tighten nuts -3-  .
   • Tightening torque 9 Nm (6.5 ftlb.)
3. 5.3  Fit and tighten screws -2-  .
   • Tightening torque 9 Nm (6.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

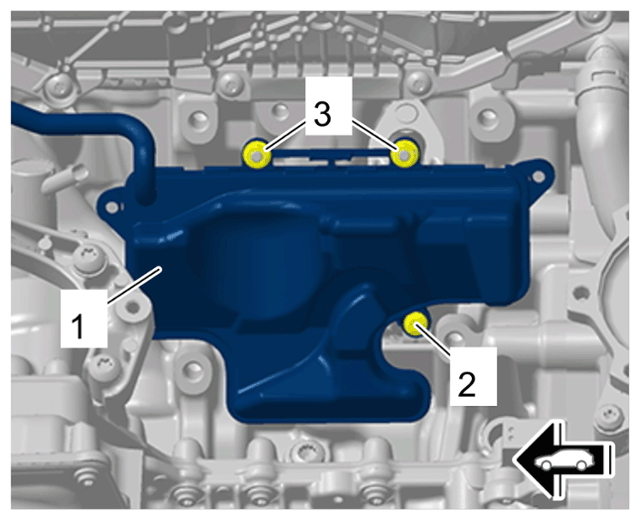

   Vacuum reservoir

1. 6.1  Position left engine carrier -1-  .
2. 6.2  Fit and tighten screws -2-  .
   • Tightening torque 50 Nm (37 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

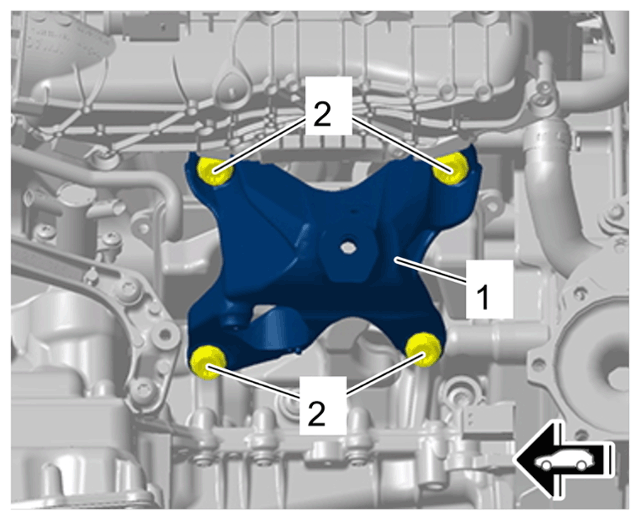

Left engine carrier

• 477619 Removing and installing brake booster vacuum pump

• 244619 Removing and installing centre intake-air distributor

• 153319 Removing and installing upper chain housing cover (V6 Turbo)
