Preliminary Work

WARNING: This page is about a different variant/trim than selected.
  1. Remove upper chain housing cover.
    • Removing and installing upper chain housing cover (V6 Turbo)
  2. Remove centre intake-air distributor.
    • 244619 Removing and installing centre intake-air distributor
  3. Remove brake booster vacuum pump.
    • 477619 Removing and installing brake booster vacuum pump
  4. Remove engine.
    • 100127 Removing and mounting engine
  5. Remove left engine carrier -1-
    1. 5.1  Unscrew and remove screws -2-  .
    2. 5.2  Remove left engine carrier -1-  .

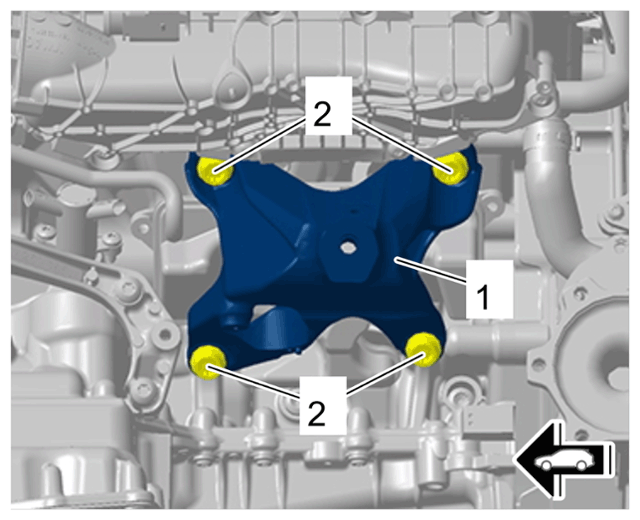

    G15150331Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Left engine carrier

  6. Remove vacuum reservoir -1-  .
    1. 6.1  Unscrew and remove screws -2-  .
    2. 6.2  Unscrew nuts -3-  .
    3. 6.3  Remove vacuum reservoir -1-  and set it aside.

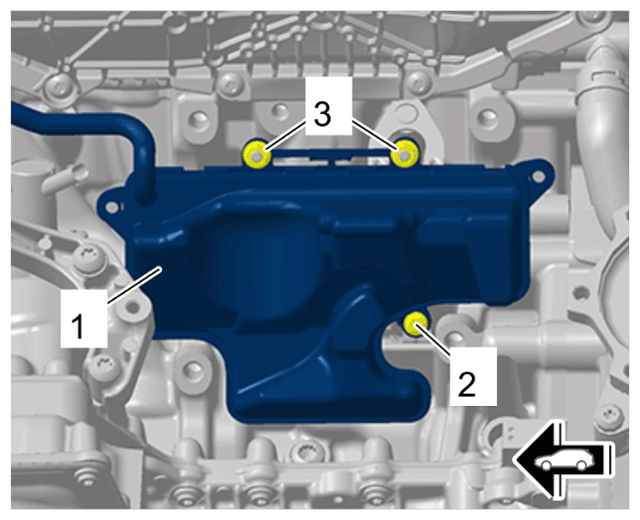

    G15150332Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Vacuum reservoir

  7. Secure engine to assembly support.
    • 100113 Securing engine on assembly support (V6 Turbo)
